Remove Particles Virus 2000LPH RO Water Treatment System

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-2000LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: RO Water Treatment System Production Capacity: 2000 Litters Per Hour
Tank Material: FRP (fiber Glass) Pipe Fitting: SUS304/ U-PVC
Feature: High Desalting Rate Desalination Rate: >=97%
Pretreatment Filter: Sand/ Carbon/ Micro RO Size: 2440*650*1750mm
Filter Tank Size: φ600×1900 Application: Drinking/ Indurtial Of Painting/ Boiler ...
High Light:

2000LPH ro water system

,

Particles ro water treatment plant


Product Description

2000L/H RO Water Treatment System, Remove Particles, Colloids, Organic Impurities, Heavy Metal Ions, Bacteria, Virus



Water Treatment Systems IN GENERAL :



Reverse osmosis systems, with the most general definition, is removal process of the anion and cation ions by an advanced filtration method which the highest technologies are used as a water treatment system. Water is forced to pass from semi-permeable membranes by applying high pressure. Water cross flows from the surface to the center of the membrane. During this transition, organic and inorganic substances, heavy metals, projects veins, bacteria etc. in the structure of the water retains by the membrane and discharges from the concentrate line. 95% to 99% Purified water can be collected to a tank through permate line. System autoflush before the production starts in order to clean the surface of the membrane.



In this type of systems, for longer and effective use of membranes, pre-filtration and dosing systems must be done correctly.


Water Treatment Systems Details

1. Capacity: 2000 L / H
2. Rated power: 3.5 KW/H
3. Voltage: 110V / 220V / 380V, 50Hz / 60Hz, 3phase
4. Desalting rate:>=97%

Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point


RO Water Treatment System  Consumables

There are several kinds of consumables you need to replace regularly. (for 250LPH)

a. Quartz sand: replaced about every 15 months. 50kg/bag,450kg/set
b. Activated carbon: replaced about every 15 months. 25kg/bag, 125kg/set
c. Resin: replaced about every 15 months. 25L/bag, 225L/set
d. PP Filter cartridge: replaced about every 1 month. 7pcs/set
e. Ro membrane: replaced about every 2 year. 8pcs/set

We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.


Some parts function:

1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...

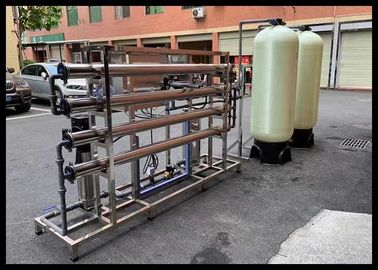

RO Water Treatment System Show
Remove Particles Virus 2000LPH RO Water Treatment System 0
Remove Particles Virus 2000LPH RO Water Treatment System 1
Remove Particles Virus 2000LPH RO Water Treatment System 2
Remove Particles Virus 2000LPH RO Water Treatment System 3

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
