Industrial RO Water Treatment Plant / 18000lph SUS304 Drinking Water Filtration System

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-18000LPH
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Industrial RO Water Treatment Plant 18000lph RO Membrane: DOW BW30-400IG
Production Capacity: 18000liters Per Hour Recovery Rate: 50%-75%
Electrical Power: 220V / 380V Pipe Fitting: SUS304/ U-PVC
Application: Pure Water / Industrial Water Desalination Rate: >=97%
High Light:

iron removal water softener system

,

water iron removal system


Product Description

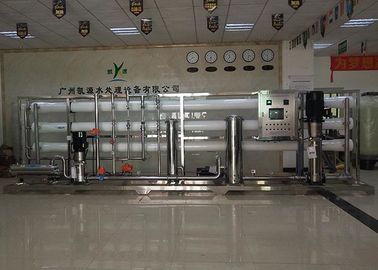

Industrial RO Water Treatment Plant 18000lph SUS304 Drinking Water Filtration System







This is the machine Customer’s fourth order to Uzbekistan.

18000LPH RO system for selling bottle drinking line.



RO system is raw water through precision filter, granular activated carbon filters, activated carbon

filters, compression, and then through the pump pressure, the use of reverse osmosis membrane

pore size 1/10000μm make a higher concentration of water into low concentration of water, while

the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed

with a large number of full isolation, to achieve the required physical and chemical indicators for

drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish

water quality. It is key equipment of pure water plant.



Every part of the RO water treatment

Raw water tank

Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system

Raw water pump

Provide needed pressure for every pre-treatment filter

Quartz sand filter

We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.

Activated carbon filter

We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.

Water softener(Optional)

Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling

Security filter

Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm

High pressure pump

Provide needed working pressure for RO system, ensure production capacity of pure water.

RO membrane

Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.





Application

  • WHO Safe Drinking water & farm irrigation water

  • Power plant and minning industry Boiler Feed Water & cooling tower water

  • Food & beverage, bottling water production line water supply.

  • Electronic, chemical, lather, textile industry pure water.

  • River water desalination and purification application.

  • High salinity brackish water and seawater desalination.







Industrial RO Water Treatment Plant / 18000lph SUS304 Drinking Water Filtration System 0

Electric Control System

The total control cabinet: Japan Mitsubishi PLC programmable controller automatic control, Taiwan Wei Lun 10.2-inch large screen true color man-machine interface touch screen, France Schneider Electric components, RO membrane automatic washing, the original water tank and pure water tank water level control automatically stop , Low voltage, high voltage, overheating, overcurrent, phase protection and alarm function, pre-installed remote monitoring interface.

Industrial RO Water Treatment Plant / 18000lph SUS304 Drinking Water Filtration System 1

Industrial RO Water Treatment Plant / 18000lph SUS304 Drinking Water Filtration System 2

Industrial RO Water Treatment Plant / 18000lph SUS304 Drinking Water Filtration System 3

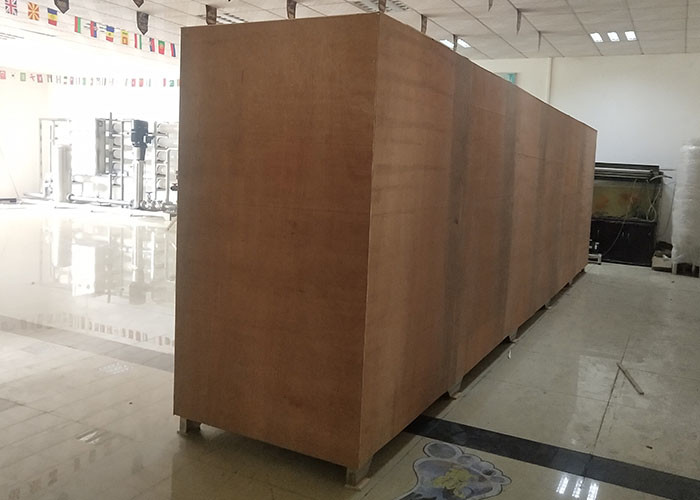

Packing

Industrial RO Water Treatment Plant / 18000lph SUS304 Drinking Water Filtration System 4


Thank you so much for your value time.Any questions please click "contact now" send us inquiry !

We will reply you within 24 hours.



Guidelines for getting a proper quotation
--Tell us the raw water/source of water
--Provide water analysis report if possible
--Required production capacity( 500 liters per hour, 1000liters per hour…)
--What's the pure water used for( drinking, bottle water or industrial use…)


Tag: RO Water Treatment System, RO Water Plant
