SS304 Water Softener Filtration System With Manganese Sand / Activated Carbon

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-1000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
RO Membrane: USA FILMTEC DOW Production Capacity: 1000L/H
Tank Material: FRP/ Stainless Steel Control Valve: Automatic/ Manual
Pipe Fitting: SUS304/ U-PVC Application: Drinking Water / Industrial Water
Midium Materials: Manganese Sand / Quartz Sand / Activated Carbon / Cation Resin / Cartridge Filter Output Water Conductivity: <= 10 Us/cm
High Light:

iron water treatment systems


iron removal water softener system

Product Description

SS304 Water Softener Filtration System With Manganese Sand / Activated Carbon


1. Product Description

Water Manganese Sand Softener System

Water Manganese Sand Softener, equipment used to reduce the hardness of water, in addition to remove calcium and magnesium ions in the softened water softening equipment in the process, does not reduce the total salt content of the water.


The hardness of the output water test by the "chrome black T reagent" showed blue color is qualified (<0.03mmoL/L).


Filtration Is The Most Traditional Method Of Purification, Is Often Used As Pretreatment System Of Pure Water System, Industry And Domestic Water Supply, Many Filtering Medium Can Be Used, Reach The Efficiency Of Removing Colloid, Particles, Suspend Matters, Residual Chlorine, Odor, Color And Iron Manganese.

2. Product Parameter
kyro-1000lph Water Manganese Sand Softener System
1. Capacity: 1000L/H RO
2. Rated power: 2.5KW/H
3. Rack Size: 1870*630*1850mm
4. Voltage: 110V 415V , 50Hz / 60Hz, single phase/3phase
2. Operating Temperature : 5°C - 39°C
6. Desalination rate : >=97%

3. Working principle


As representatives of the RNa sodium resin , the exchange process is as follows:


2RNa + Ca2 + = R2Ca + 2Na +
2RNa + Mg2 + = R2Mg + 2Na +


The water through the sodium ion exchanger , the water, Ca +, Mg + is replaced by Na +.
General control valve operation process is: run , backwash , brine , slow wash , salt water tank , flushing .


Underground Water With Iron And Manganese After Treating By Aeration, Iron And Manganese Ions In The Water Starts To Be Oxidated, Iron(Fe2+), Manganese(Mn2+) Exists In The Underground Water (Well Water), Mno2 In The Manganese Sand Can Catalyze The Oxidation Of Fe2+, Mn2+, To Generate Insoluble Trivalency Iron And Tetravalent Manganese, Then Use The Back Washing Function Of The Manganese Sand Filter To Get Rid Of Iron And Manganese And Make The Source Water Purified.


4. Characteristic


Power Saving: The Water Can Be Supplied To The Pipe Network Directly, No Need To Set Up Second Stage Water Supply System, The Equipment Has Backwash Function, And No Need To Set Up Backwashing Pump.


Water Saving: This Equipment Adopts "Plum Blossom Water Distributor", Which Can Shorten The Distance Between Filter Layer And Water Distribution Pipe, And Can Save a Lot Of Backwash Water.


Save Investment And Floor Space: The Equipment Is No Need To Set Up Clear Water Tank.


Save The Filter Material: This Equipment Water Distribution Is Balance, The Filter Material Does Not Have The Dead Angle, Does Not Harden, Prolongs The Filter Material Service Life. A Strong Oxidation Chamber Sets Up Inside The Equipment, Which Can Increase The Saturation Of Air And Water, Speed Up The Oxidation, And Have Stronger Applicability To The Content Of Iron And Manganese In Raw Water.

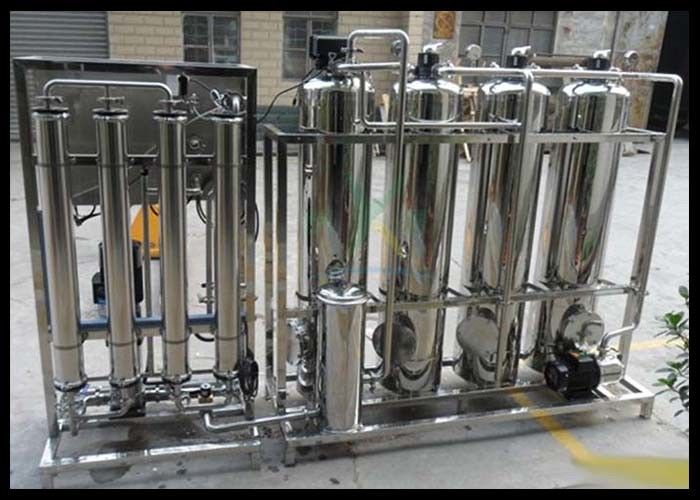

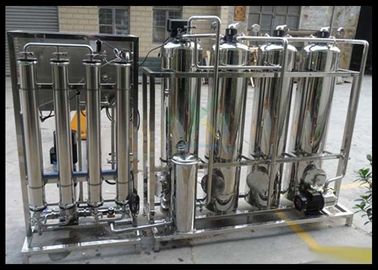

4. Photo Show
SS304 Water Softener Filtration System With Manganese Sand / Activated Carbon 0
SS304 Water Softener Filtration System With Manganese Sand / Activated Carbon 1
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
