| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-18000LPH |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Name: | Industrial Reverse Osmosis Water Treatment Plant | RO Membrane: | DOW BW30-400IG |
|---|---|---|---|
| Production Capacity: | 18000liters Per Hour | Recovery Rate: | 50%-75% |
| Electrical Power: | 220V / 380V | Pipe Fitting: | SUS304/ U-PVC |
| Application: | Pure Water / Industrial Water | Desalination Rate: | >=97% |
| Quartz Sand: | 700KG | Active Carbon: | 200KG |
| High Light: | reverse osmosis water filter system,ro reverse osmosis water filter |
||
18m³/h Industrial Reverse Osmosis Water Treatment Plant / Water Purifier Unit 18TPH RO System
1. 18TPH RO System Process
|
(Raw water tank buyer supply)--->raw water pump--->UV sterilizer--->secutiry filter 5um---> secutiry filter 1um--->high pressure pump--->reverse osmosis system--->(pure water tank buyer supply) |
2. 18TPH RO System some parts function^^
|
Security filter: fill PP filter cartridge inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um /1um. |
|
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. |
|
UV sterilizer: for killing bacterial in water, be safe for drinking. |
|
CIP system: its help to cleaning the RO membrane, so that it can be have long life span^^ |
3. 18TPH RO System applications:
|
1. Water for pharmaceutical industry: pharmaceutical, preparation process water, medical hemodialysis, biochemical analysis, infusion, etc. |
|
2. Purified drinking water, distilled water, natural water, mineral water, mineralized water, pure water for blending liquor, water for saccharification of beer and filtration of pure draft beer in the beverage industry. |
|
3. Making pure and ultra-pure water for the electronic industry, such as monocrystalline silicon semiconductor integrated circuit block, picture tube, glass shell, liquid crystal display, etc. |
|
4. Deionized water for electroplating process, pure water for battery production process, pure water for surface coating and cleaning of automobiles, household appliances and building materials, pure water for coated glass, and desiccating brine for textile and dyeing process. |
|
5. Water purification for hotels, buildings, communities and swimming pools. |
|
6. and cosmetics manufacturing and other USES. |
4. 18TPH RO System advantages
|
Low power consumption, completely made of 304 stainless steel, the pretreatment equipment and pipeline valve are all sanitary material, conpact conformation, convenient to tranport. No need works to operate. It is PLC program controlled. Installed with conductivity meter monitor,pressure gauge and flow meter. |

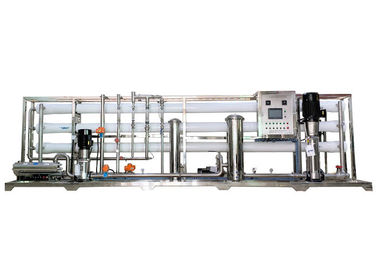

5. 18TPH RO System Photo
Packing
Thank you so much for your value time. Any questions please click "contact now" send us inquiry !
We will reply you within 24 hours. Tel/ whatsApp/ wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
