SUS - 304 Filtration RO Water Purifier Machine / Pure Drinking Water Treatment System

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-3000LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Ro Water Purifier Machine Production Capacity: 3000liters Per Hour
Recovery Rate: 50% - 75% Application: Filtration
Tank Material: FRP/ Stainless Steel/ Carbon Steel Other Name: Drinking Water Treatment Systems
Pipe Fitting: SUS304/ U-PVC Warranty: 1 Year
High Light:

reverse osmosis water filter system

,

ro reverse osmosis water filter


Product Description



SUS - 304 Filtration RO Water Purifier Machine Pure Drinking Water Treatment System



Ro Water Purifier MachineDescription

Ro Water Purifier Machine is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment.



Ro Water Purifier Machine Details



S/N
Name
Function
Remark
1
Raw water tank
Store water, buffering pressure, overcome instability of
supplying water by pipe, ensure to supply water stably
and continuously for whole system
Customer provide for
themselves, because
big size will result in
expensive freight.
2
Raw water pump or called booster pump
Provide needed pressure for every pretreatment filter
We can provide CNP
pumps or Grundfos
pumps
3
Mechanical filter /quartz sand
filter /sand filter
We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities,
suspended substances, colloids etc.

4
Activated carbon filter
We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine
and organics substances.

5
Security filter /pp filter / sediment
filter
prevent large particles, bacteria, viruses into RO
membrane, accuracy is 5 micron,

6
High pressure
pump
Provide needed working pressure for RO system, ensure
production capacity of pure water.
CNP pump, Grundfos
optional
7
RO(reverse
osmosis) system
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful
substances and 97% dissolved salts.
RO membranes USA
Filmtec Dow
8
UV/ Ozone
generator
Kill bacterials in water. UV for direct drinking water.
Ozone generator for bottle water




Ro Water Purifier Machine Processing



Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point



First stage pretreatment.(Sand filter)

The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.

Second stage pretreatment (Carbon filter)

Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.

Third stage pretreatment (Resin softener)

Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.

Fourth stage pretreatment (Micron filter)

Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.

RO system

The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.



Ro Water Purifier Machine Advantages:





1) highly automatic

2).No need the chemical regeneration,easy operation

3).RO system choose the import USA DOW membrane

4).Automatic switch on when low raw water level,and switch off when high pure water level

5).RO membrane can backwash automatic and reduce the pollution.

6).Water shortage protection for high pump

7).Low operation Cost and Long life span

8).Easily control and Maintained.

9).Auto membrane flushing

10).Environmental protection, Low power consumption

11) Auto flush/backwash

12) Low /high pressure protection





Ro Water Purifier Machine Details

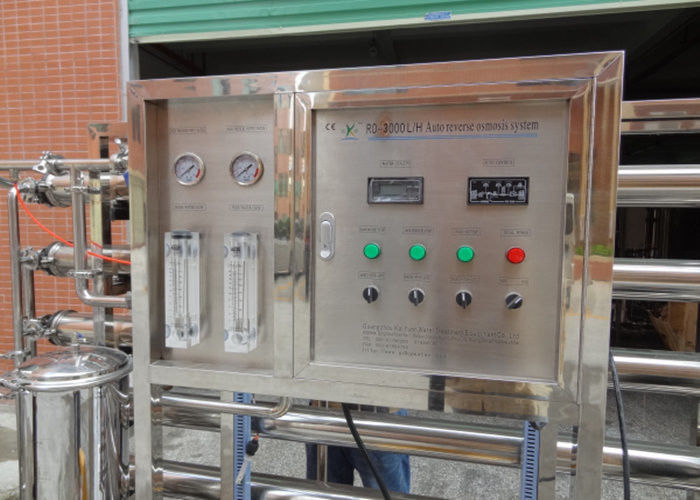

SUS - 304 Filtration RO Water Purifier Machine / Pure Drinking Water Treatment System 0



SUS - 304 Filtration RO Water Purifier Machine / Pure Drinking Water Treatment System 1
