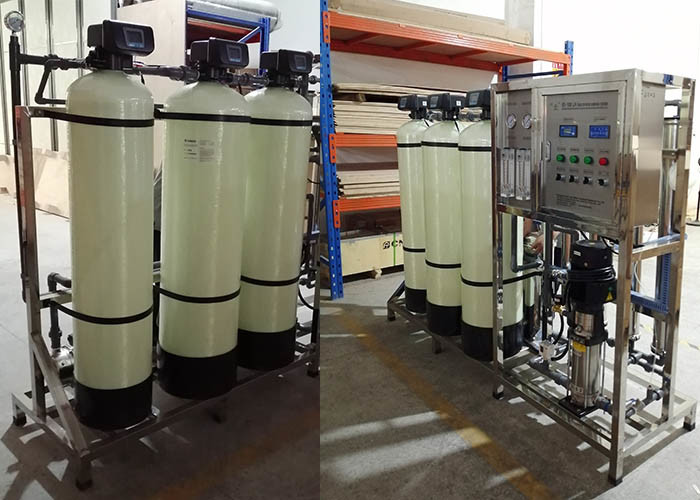

1000LPH Water Treatment System Reverse Osmosis Water Purifier Filter RO Equipment
Softener System:
Water Softener is one kind of water treatment plant that can reduce water hardness and make it soft. Its working principle is using sodium cation exchange resin to eliminate calcium and magnesium ions in the water. It is mainly used to reduce raw water hardness and avoid carbonates fouling in the pipeline, container, and boiler, etc. The effectiveness reaches 99%.
Why we need a water softener?
Because hard water contains a lot of calcium and magnesium ions and they are the main components of the scale. If we drink hard water for a long time, it will cause great problems for our health, so we need to use the Water Softener in water treatment.
Softener System parameters:
|
1. Pure water output: 250L/hour; (actual water output is higher than standard design value)
|
|
2. Inlet water source: municipal tap water or ground water etc...
|
|
3. Outlet water quality: conductivity is less than 3us / cm(TDS is <2PPM), desanilation rate is 97%
|
|
4. Outlet quality meets the standards of the urban construction industry of the People's Republic
|
|
5. Rated power: 2000w
|
|
6. Rated voltage: 220v or 380v
|
|
7. Water pressure: 0.1mpa or more
|
|
8. Packaging type: wooden frame packaging
|
Softener System Features:
|
1. Reverse osmosis is the desalting and desalting of brine containing water at room temperature using a non-phase-change physical method. At present, the desalination rate of the ultrathin composite membrane element can reach 99.5% or more.
|
|
2, the use of imported reverse osmosis membrane, high salt rejection rate, long service life, low operating costs;
|
|
3. Adopt automatic pretreatment system to realize unmanned operation;
|
|
4. Imported Grundfos booster pump, high efficiency, low noise, stable and reliable;
|
|
5. Online water quality monitoring and control to monitor water quality changes in real time to ensure water quality safety;
|
|
6, fully automatic electronic control program, also optional touch screen operation, easy to use;
|
|
7. Customized design that meets local water quality to meet all needs.
|
|
8. High degree of automation, low cost of operation and maintenance and equipment maintenance.
|
|
9. The treatment of water relies solely on the pressure of water as the driving force, and its energy consumption is the lowest among many treatment processes.
|
|
10, do not use a large number of chemical agents and acid, alkali regeneration treatment, no chemical waste liquid discharge, no environmental pollution.
|
|
11. Reverse osmosis can continuously run water, the system is simple, the operation is convenient, and the product water quality is stable.
|
|
12. The equipment footprint and operation space are small.
|
Softener Treatment Process:
Raw water tank(buyer supply)→raw water pump → quartz filter → activated carbon filter → softener → security filter → high pressure pump → reverse osmosis system → UV sterilizer→pure water tank(buyer supply)→ water point
Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances
Security filter: fill PP filter cartridge inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
Water softener: add cation resin, absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water.
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
UV sterilizer: for killing bacterial in water, be safe for drinking.
How to plaec order?
Thank you so much for your value time. Any questions please send us inquiry !We will reply you within 24hours.
Tel/ whatsApp/ wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
Product Tag: RO Water Treatment System, Brackish Water System
