250LPH RO Water Treatment Plant Prices Of Water Purifying Machines

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-250LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: RO Water Treatment System Production Capacity: 250 Litters Per Hour
Electrical Power: 220/380V 50/60Hz Tank Material: FRP
Pipe Fitting: SUS304/ U-PVC Function: Remove Dissolved Solids From Water
Feed Water TDS: <2000mg/L Desalination Rate: >=97%

Product Description

250LPH RO Water Treatment Plant Prices Of Water Purifying Machines



RO Water Treatment System Description

Equipment summarize:
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water.

Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain.

Reverse osmosis is capable of removing 97-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% of all bacteria in the feed water.

RO Water Treatment System Details

1. Capacity: 250 L / H
2. Rated power: 3.0 KW/H
3. Voltage: 110V / 220V / 380V, 50Hz / 60Hz, single phase / 3phase
4. Desalting rate:>=97%


RO Water Treatment System Performance

⇒ Main part (membrane) of reverse osmosis system is imported from USA.
⇒ Auto stop when no water and full water.
⇒ Auto controller, RO membrane auto flush to protect membrane.
⇒ Auto start when pure water tank have no water.
⇒ Low pressure protection switch to protect high pressure pump when there is no raw water.
⇒ High efficient and low noise high pressure pump.
⇒ Product water conductivity meter to monitor product water quality all the time.
⇒ Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
⇒ Inlet water solenoid valve to stop water when machine is stop.


RO Water Treatment System  Consumables

There are several kinds of consumables you need to replace regularly. (for 250LPH)

a. Quartz sand: replaced about every 15 months. 50kg/bag,450kg/set
b. Activated carbon: replaced about every 15 months. 25kg/bag, 125kg/set
c. Resin: replaced about every 15 months. 25L/bag, 225L/set
d. PP Filter cartridge: replaced about every 1 month. 7pcs/set
e. Ro membrane: replaced about every 2 year. 8pcs/set

We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.

RO Water Treatment System Processing



  • STEP 1: AG Pre-Filtration – cartridge type, removes particulate matter down to 20 microns.
  • STEP 2: Carbon – an activated carbon cartridge filter that removes chlorine, chloramine, solvents, lead, insecticides, gasses, and other harmful contaminants. Works as a water softener, without the use of salt and drawing hardness particles together and crystallizing them. Includes an automatic backwashing system.
  • STEP 3: 5 Micron Pre-Filter – removes particles, sediments, and algae.
  • STEP 4: R.O. Pump – high pressure, stainless steel pump to boot water pressure to 160 lbs. for maximum membrane efficiency.
  • STEP 5: Reverse Osmosis Membrane – water is forced through a semi permeable, .0002 micron membrane, allowing only pure water molecules to pass.
  • STEP 6: Pressure Tank – 32 gallon pressure tank assures a constant flow of water to the filler and prolongs pump life.
  • STEP 7: Post Carbon Filtration – water travels through a 4.5in x 20in coconut shell carbon block filter, polishing it for an exceptionally smooth taste.
  • STEP 8: Ultraviolet Sterilizer – stainless steel sterilizer eliminates up to 99.9% of all bacteria.
  • STEP 9: Optional – ozone may be added to water storage tanks to prevent future bacterial growth.

Some parts function:

1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...

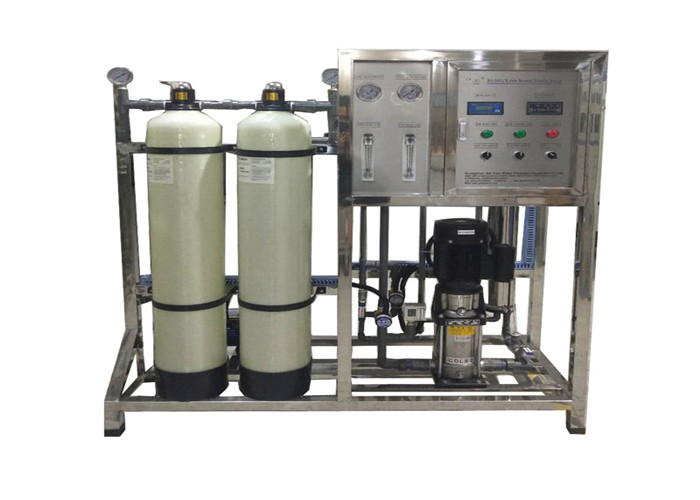

RO Water Treatment System Show

250LPH RO Water Treatment Plant Prices Of Water Purifying Machines 0

250LPH RO Water Treatment Plant Prices Of Water Purifying Machines 1

250LPH RO Water Treatment Plant Prices Of Water Purifying Machines 2
