Home > Products> RO Water Treatment System> 12T/H Water Treatment Machine Salt Water Purifier Industrial Filters RO System

12T/H Water Treatment Machine Salt Water Purifier Industrial Filters RO System

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-12000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	15-30working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>100sets/month

Get Best Price Contact Now

Detail Information

Item Name:	RO Water System 12000LPH	Production Capacity:	12TPH
Recovery Rate:	50% - 75%	Electrical Power:	110V - 415V / 3ph/ 50Hz Or 60Hz
Tank Material:	FRP/ Stainless Steel/ Carbon Steel	RO Rack Size:	40009001800MM
Pre-treatment:	Sand/ Carbon Filter	Desalination Rate:	>97%
High Light:	reverse osmosis water filter system , ro reverse osmosis water filter

Product Description

12T/H Water Treatment Machine Salt Water Purifier Industrial Filters RO System

Mchine can be supplied with several options that will help reduce energy, reduce the amount of water required for operation and even provide for water recycling. Some of these options are:

1)Low energy membranes (100-150 psi)
2)High water recovery operation (depending on feed quality)
3)Output controlled operation with variable speed drive
4)Reject water recovery and reuse systems

Standard Features
1)5.0 um multi-cartridge pre-filter
2)Automatic inlet shut-off valve
3)Multi-stage centrifugal pump
4)Two flow meters
5)Programmable auto-flush feature
6)PLC system control
7)Clean-In-Place ports

Materials of Construction
1) Frame: Stainless steel 304 or Powder coated steel
2) Membrane Elements: TF Polyamide
3) Membrane Housing: FRP
4) Low Pressure Pipe: UPVC
5) High Pressure Pipe: Stainless Steel
6) Pump: Stainless Steel

Operating Parameters
1) Operating Pressure: < 300 psig
2) Maximum Recovery: 60% - 75%
3) Nominal Rejection: 95-99%
4) Operating Temperature: 2-35C
5) Minimum Inlet Pressure: 30 psig
6)Design Temperature: 25C

Application

A. Food and Beverage, Mineral Water Process

B. Pharmacy and Hospital

C. Chemical Industry

D.Underground Water Softening

E.Electricity and Micro Electronics

F. Electric Component Manufacturing

G. Electroplating

H. Printing and Dyeing

I. Domestic Use

Function of every part:

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/ water softener

2. Sand filter-- get rid of turbidity, suspended matter

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Security filter--prevent large particles into RO membrane, accuracy is 5um,

6. High pressure pump-- Provide the high pressure to RO membrane

7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 97% and above, removing over 99% ions.

Process: Raw water pump→ Quartz sand filter→ activated carbon filter→ (water softener)→security filter → high pressure pump →Reverse osmosis system→ (ozone generator)→ pure water tank

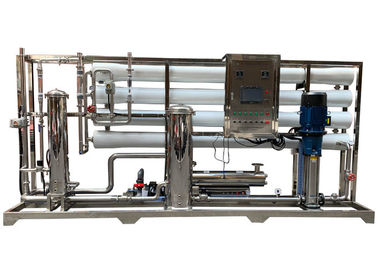

12T/H Water Treatment Machine Salt Water Purifier Industrial Filters RO System 0

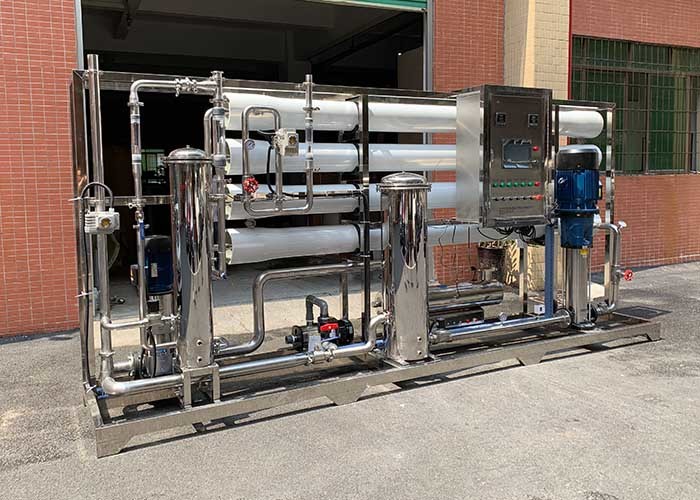

12T/H Water Treatment Machine Salt Water Purifier Industrial Filters RO System 1

12T/H Water Treatment Machine Salt Water Purifier Industrial Filters RO System 2

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
