CNP Pump Small RO Machine 500LPH RO Water Treatment Plant For Drinking

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-500LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >100sets/month
Detail Information
Item Name: RO Water System 500LPH Production Capacity: 500liters Per Hour
Recovery Rate: 50% - 75% Electrical Power: 110V - 415V 50Hz Or 60Hz
Tank Material: FRP/ Stainless Steel/ Carbon Steel RO Rack Size: 1910*620*1850MM
Pre-treatment Tank Size: Φ350 × 1400MM Warranty: 1 Year
High Light:

reverse osmosis water filter system

,

ro reverse osmosis water filter


Product Description

CNP Pump Small RO Machine 500LPH RO Water Treatment Plant For Drinking





1. Product Description

Reverse osmosis system is using city water as feed water.

Pre-treatment filters always contain quartz sand filter, activated carbon filter, water softener and security filter. Main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. And pre-filters can also reduce water residual chlorine and pesticide and other harmful pollutions. If raw water in high hardness, we will need to add water softener to protect reverse osmosis membrane.

2. Product Parameter

KYRO-1000LPH RO Water Treatment System:

1. Capacity: 500 Liters per hour
2. Rated power: 2.25KW/H
3. RO System Rack Size: 1910*620*1850MM
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
8. Voltage: 110V - 415V , 50Hz or 60Hz , 3phase

3. System Advantages

1 water treatment plant Adopting SS304 material with opening design, clear process and convenient maintenance.
2 water treatment plant High quality TFC compound Ro membrane treatment crafts with very low pressure and the capacity of desalinization rate comes to 98% at least.
3 water treatment plant is Auto-check conductance display guarantee watching water quality.
4 Multi medium beforehand filter increases the capacity of water treatment plant.
5 water treatment plant adopts high efficiency active carbon filter which can wipes chlorine of raw water , protect RO system membrane and adjust the taste.
6 water treatment plant has Safe and reliable electrical system. Which designed equipment auto stop protection when open circuit, short circuit and overload.
7 Intelligent circuit design equipment auto stop and run when high or low level water.
8 water treatment plant has auto wash and manual wash model for choosing , which can protect RO membrane easily.

4. Optional Components

A. Regulating wheels B. PC Touch Screen
C. Two-stage RO system D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank


5. Product Processing



Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point


Some parts function

1.Raw water pump: provide needed pressure for every pre-treatment filter;

2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;

3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.



6. Pictures Show

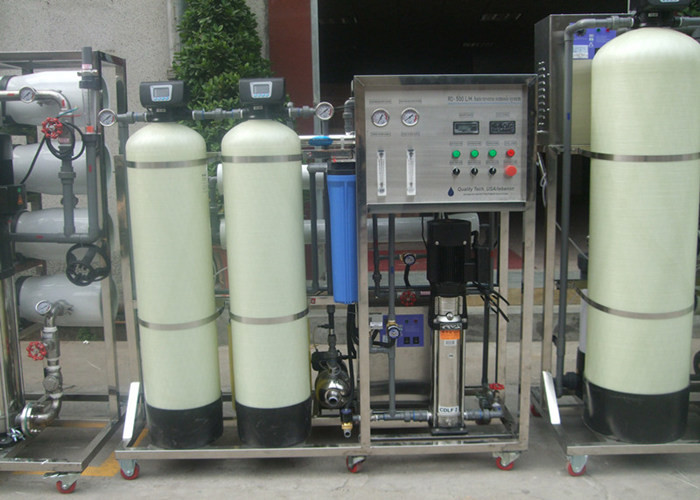

CNP Pump Small RO Machine 500LPH RO Water Treatment Plant For Drinking 0



CNP Pump Small RO Machine 500LPH RO Water Treatment Plant For Drinking 1

CNP Pump Small RO Machine 500LPH RO Water Treatment Plant For Drinking 2


Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
