| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-500LPH |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Production Capacity: | 500LPH | Recovery Rate: | 50% - 75% |
|---|---|---|---|
| Type: | Water Purifier Plant | Tank Material: | FRP / Stainless Steel / Carbon Steel |
| Feature: | Drinking Water | Pipe Fitting: | SUS304 / SUS316L / U-PVC |
| Operating Temperature: | 5℃ - 39℃ | ||
| High Light: | reverse osmosis water filter system,ro reverse osmosis water filter |
||

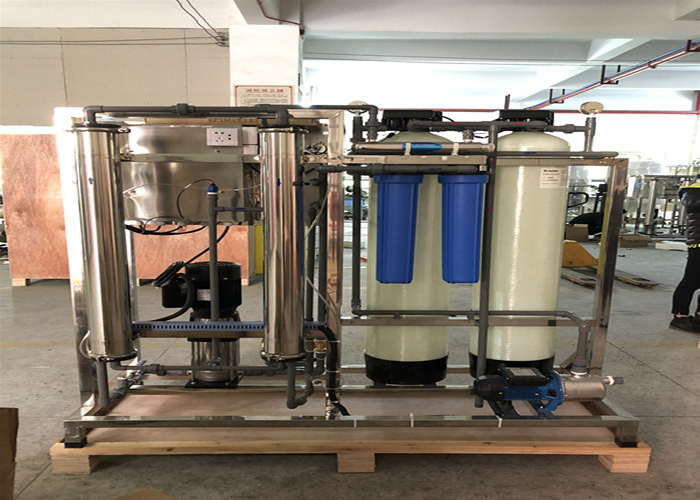

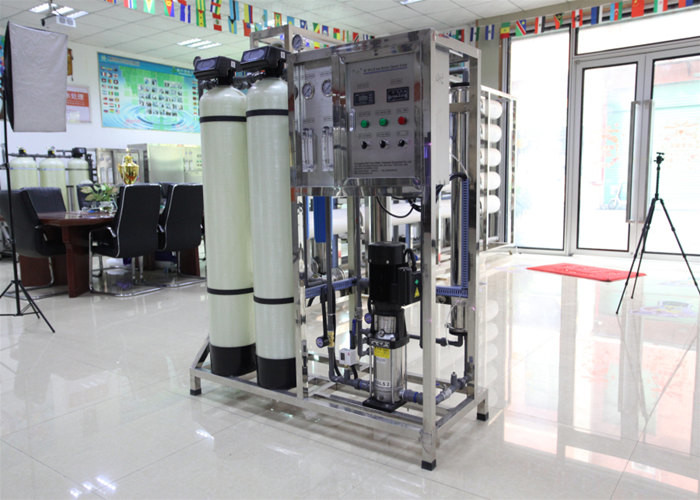

Automatic Complete RO Water Purifier Plant / DOW Membrane 500 LPH Plant
RO Water Purifier Plant Introduction
Reverse Osmosis Water System is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure, the use of reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant.
RO Water Purifier Plant Details
|
KYRO-500LPH RO Water Purifier Plant |
|
1. Capacity: 500L/H |
|
2. Rated power: 2.5KW/H |
|
3. RO System Rack Size: 2450*970*1970mm |
|
4. Desalting rate:>=97% |
|
5. Water recovery rate: 50-75% |
|
6. TDS of raw water: ≤ 2000PPM |
|
7. TDS of pure water: ≤ 60PPM |
|
8. Voltage: 110V / 220V / 380V, 50Hz / 60Hz, single phase / 3phase |
RO Water Purifier Plant Component
Raw water pump ► Quartz sand filter ► Activated carbon filter ► Security filter ► High-pressure pump ► RO system + Alkaline Filter + Coconut shell carbon filter
1. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
2. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
3. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
4. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
5. Alkaline Filter: use stainless steel as housing, fill alkaline ball inside, can be done for PH 7-10 alkaline drinking water.
6. Coconut shell carbon filter: use stainless steel as housing, fill coconut shell carbon inside, remove color, odor, residual chlorine and organics substances;
7. PP Filter Cartridge: Intercept >1µm accuracy large particles, bacteria, viruses. (optional)
8. Folding filter Cartridge: Intercept >0.22µm accuracy large particles, bacteria, viruses. (optional)
There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
Different Water TDS(Total Dissolved Solids) compare and usage
| Raw water/ Application |
Bottled water, Bag water |
City tap water | Brackish water | Seawater |
| TDS Range | 2-10ppm | 100-1000ppm | 2000-20000ppm | 20000-40000ppm |
| Direct Drinking | Yes | Yes/No | No | No |
| Cooking, human consumption, washing |
Yes | Yes | No | No |
| Irrigation, Industry, Animal Drinking |
Yes | Yes | No | No |
RO Water Purifier Plant Optional Components
A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank
