| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-6000LPH |
| Minimum Order Quantity: | Negotiation |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Ype: | Drinking Water Treatment Plant | Production Capacity: | 6000LPH |
|---|---|---|---|
| Recovery Rate: | 50% - 75% | Type: | Reverse Osmosis Water System |
| Tank Material: | FRP / Stainless Steel / Carbon Steel | Feature: | Drinking Water |
| Pipe Fitting: | SUS304 / SUS316L / U-PVC | Operating Temperature: | 5℃ - 39℃ |
| High Light: | domestic water purification system,ro reverse osmosis water filter |
||

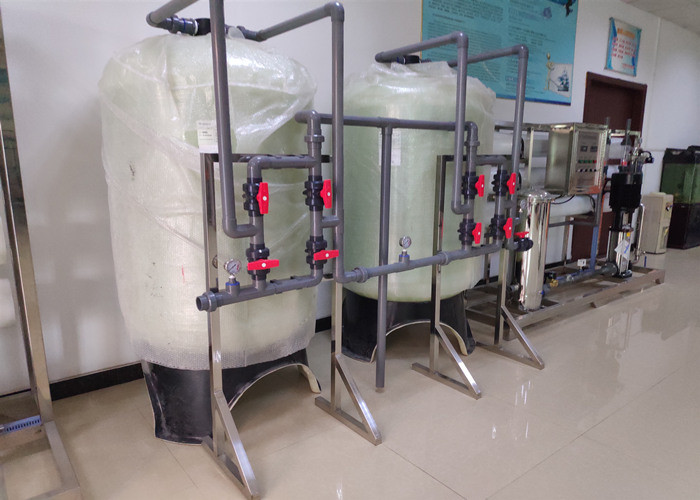

6TPH Drinking Water Treatment Plant , Reverse Osmosis Water System With UV Sterilizer
Drinking Water Treatment Plant Introduction
Reverse Osmosis Water System is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure, the use of reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant.
Drinking Water Treatment Plant Details
|
kyro-600LPH Reverse Osmosis Water System |
|
1. Capacity: 6000L/H |
|
2. Rated power: 15.5KW/H |
|
3. RO System Rack Size: 2450*970*1970mm |
|
4. Desalting rate:>=97% |
|
5. Water recovery rate: 50-75% |
|
6. TDS of raw water: ≤ 2000PPM |
|
7. TDS of pure water: ≤ 60PPM |
|
8. Voltage: 110V / 220V / 380V, 50Hz / 60Hz, single phase / 3phase |
Drinking Water Treatment Plant Component
Raw water pump ► Quartz sand filter ► Activated carbon filter ► Security filter ► High-pressure pump ► RO system + UV Sterilizer
1. Raw waterpump : provide the pressure to quartz sand filter/active carbon filter/ water softener
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
6. High pressure pump :Provide the high pressure to RO membrane
7. PP Filter Cartridge: Intercept >1µm accuracy large particles, bacteria, viruses. (optional)
8. Folding filter Cartridge: Intercept >0.22µm accuracy large particles, bacteria, viruses. (optional)
There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
Drinking Water Treatment Plant Optional Components
A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank
