SUS304 MMF ACF Water Purification System RO With UV Sterilizer Portable

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-100TPH

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	30-45working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>100sets/month

Get Best Price Contact Now

Detail Information

Item Name:	Water Purification System	Production Capacity:	100tons Per Hour
Recovery Rate:	50% - 75%	Electrical Power:	110V - 415V/ 3ph/ 50Hz Or 60Hz
Tank Material:	FRP/ Stainless Steel/ Carbon Steel	Pretreatment:	Sand/ Carbon/ Filter Cartrige
Feed Water TDS:	<2000mg/L	Application:	Pure / Industrial / Drinking Water
High Light:	domestic water purification system , ro reverse osmosis water filter

Product Description

SUS304 100TPH MMF ACF Water Purification System RO For Drinking With UV Sterilizer

1. Product Description

Water Purification System is using city water as raw water, then treat water by Pre-filter (quartz sand filter MMF/ activited filter ACF/ water softener is optional/ security filter), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt.

The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.

2. Product Parameter

KYRO-100TPH Water Purification System:

Item Name	KYRO-100TPH RO Water Treatment System
Capacity	100T (Customized from 500L/H to 300T/H)
Desalting rate	More Than 97%
Pipe material	High quality U-PVC (Stainless steel for option)
Frame material	304stainless steel (carbon steel,316stainless steel for option)
Pre-treatment vessel material	FRP vessel ( stainless steel or carbon steel for option)
Membrane brand	Dow or GE or Vontron for Option
RO membrane housing	FRP or stainless steel
Raw water pump&high pressure pump	Nanfang, Grundfos and others for optional

3. System Advantages

1. After the machine is turned on, the device realizes the automatic film rinsing function, and the rinsing time is adjustable from 2 to 10 minutes.

2. The equipment has a waste water return device, which can be used for secondary use of water to improve water utilization and save water costs.

3. Low-voltage protection system, when the source water pressure is insufficient or passive water, the equipment will automatically stop, protecting the high-pressure pump and equipment safety.

4. The equipment can be automatically shut down after the water tank is full.

5. The equipment is equipped with a cleaning and maintenance system, which can regularly clean and maintain the equipment and prolong the service life of the reverse osmosis membrane for 3-5 years.

6. The equipment adopts stainless steel frame structure to achieve no sanitary corners, and the equipment is non-corrosive. It is still as new as 10-20 years.

7. The two-stage reverse osmosis equipment is equipped with multi-way regulating valve, which can realize double-stage effluent, single-stage effluent or single-stage effluent at the same time, so that the water quality is diversified.

8. Reverse osmosis equipment can be used with mineral water equipment (mountain spring water equipment) to reduce investment costs and improve water resource utilization.

9. The equipment can basically achieve 24-hour unattended operation.

10. An online water quality detector is available to observe the water quality at any time.

4. Optional Components

A. Regulating wheels	B. PC Touch Screen
C. Two-stage RO system	D. PH adjustment
E. CIP cleaning system	F. Auto or manual control valve
G. U-PVC or stainless steel pipe	H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener	J. PE or stainless steel raw/pure water tank

5. Product Processing

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point

Some parts function

1.Raw water pump: provide needed pressure for every pre-treatment filter;

2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;

3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

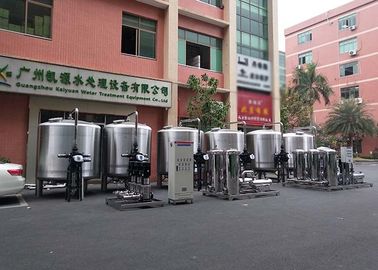

Pictures Show
SUS304 MMF ACF Water Purification System RO With UV Sterilizer Portable 0

SUS304 MMF ACF Water Purification System RO With UV Sterilizer Portable 1

SUS304 MMF ACF Water Purification System RO With UV Sterilizer Portable 2

SUS304 MMF ACF Water Purification System RO With UV Sterilizer Portable 3

SUS304 MMF ACF Water Purification System RO With UV Sterilizer Portable 4

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
