Pure Water Treatment Plant Ro System / Residential Reverse Osmosis Unit

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-500LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>300sets/month

Get Best Price Contact Now

Detail Information

Name:	Water Treatment Plant Ro System	Production Capacity:	500LPH
Recovery Rate:	50% - 75%	Electrical Power:	380V 50Hz 3Phase
Tank Material:	FRP / Stainless Steel	Other Name:	Reverse Osmosis Unit
Pipe Fitting:	SUS304 / SUS316L / U-PVC	Operating Temperature:	5℃ - 39℃
High Light:	reverse osmosis water filter system , ro reverse osmosis water filter

Product Description

Pure Water Treatment Plant Ro System / Residential Reverse Osmosis Unit

Water Treatment Plant Ro System Introduction

Reverse Osmosis system (RO) is the best water purification system.

It includes household revere osmosis system, commercial revere osmosis system and industrial revere osmosis system. Our industrial reverse osmosis system can deal with different source water like tap water, rainwater, city water, underground water with wide applications in Food, Hotels, Hospitals, Restaurant, Cinemas......

The solute is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side. To be "selective", this membrane should not allow large molecules or ions through the pores (holes) but should allow smaller components of the solution (such as solvent molecules) to pass freely.

500lph reverse osmosis water system purifier ro plant designed with pre-treatment multimedia filters, it including sand filter, carbon filter,antisludging agent and security filter, which can remove big suspending particles, reverse osmosis unit can filtrate over 99% dissolved solid,It is the most precison filter process.

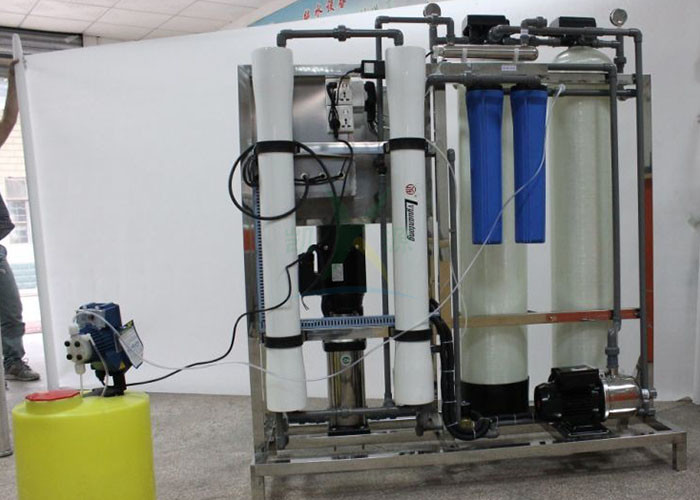

Pure Water Treatment Plant Ro System / Residential Reverse Osmosis Unit 0

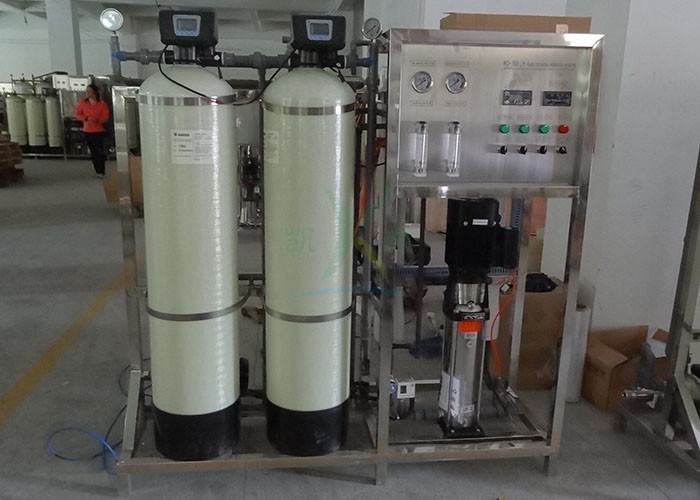

Pure Water Treatment Plant Ro System / Residential Reverse Osmosis Unit 1

1---Quartz sand filter

Function:Mainly remove the mud, suspended solids and large particles in the tap water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Filter material: Fine quartz sand

Filter material Size: 1-2.5mm and 2.5-4.5mm

2---Active carbon filter

Function:mainly remove organic substances, residual chlorine and odor in tap water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Material: FRP

Filter material: Fine active carbon

Filter material Size: 20-40mesh

3---Resin softening

Function:mainly remove the calcium and magnesium in tap water, reduce the hardness of water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Material: FRP

Filter material: Resin 0.315-1.25mm

4--Security filter:

Function: Further filtration, to avoid quartz entry into RO to break the membrane

Shell Material: SUS304

Cartridge material: Spray-fusing polypropylene 5um 20’

Cartridge Qty: 5pcs

5---RO membrane:

Function: the core part of pure water equipment, the production of high-purity water.

Parameters:

Model: ULP31-4040

Flow rate: ≥7.2m3/h(25°C)

Desalination rate %:99.4%

Max Inlet Water Temperature: 45 °C

Max Working Pressure:600pai(4.14Mpa)

Effective membrane area ft2(m2) :85(7.9)

Operation: automatic control, automatic flush

Membrane material: aromatic polyamide composite membrane

Membrane housing material: SUS 304

6--- High-pressure pump:

Function: provide enough pressure for reverse osmosis system

Model:CVF2-13T 1.5kw

Material: SUS304

Flow: 3.2m3/h

Lift: 60m

7---Anti-sludging agent dosing device

Function: According to a certain proportion of adding reverse osmosis antiscalant dosing, prevent reverse osmosis caused by dirt plugging in the long-running surface node membrane element, It can effectively disperse fouling. And prevent the deposition of iron and aluminum oxide

Water Treatment Plant Ro System Details

Pure Water Treatment Plant Ro System / Residential Reverse Osmosis Unit 2

Pure Water Treatment Plant Ro System / Residential Reverse Osmosis Unit 3

Pure Water Treatment Plant Ro System / Residential Reverse Osmosis Unit 4
