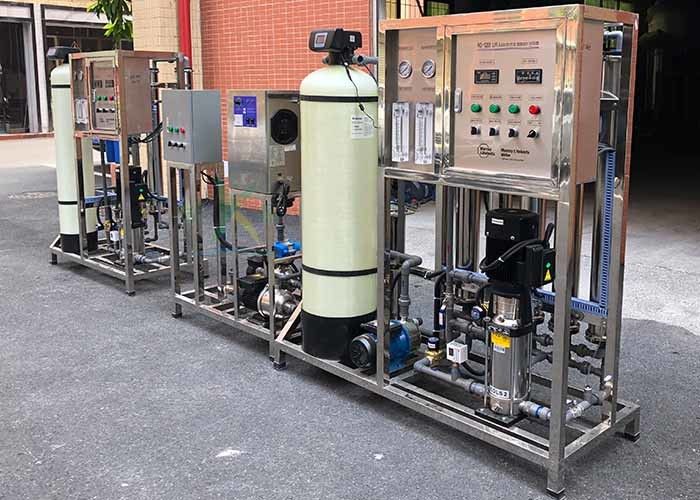

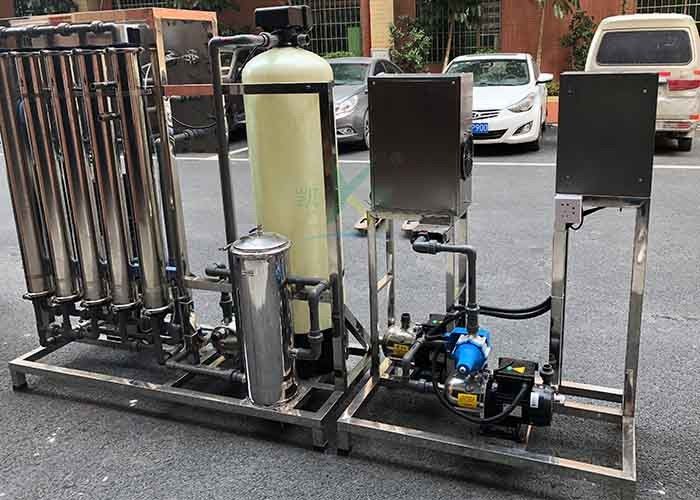

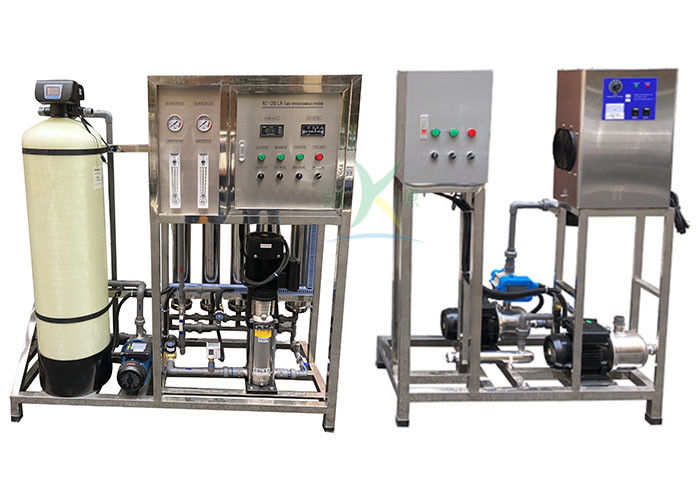

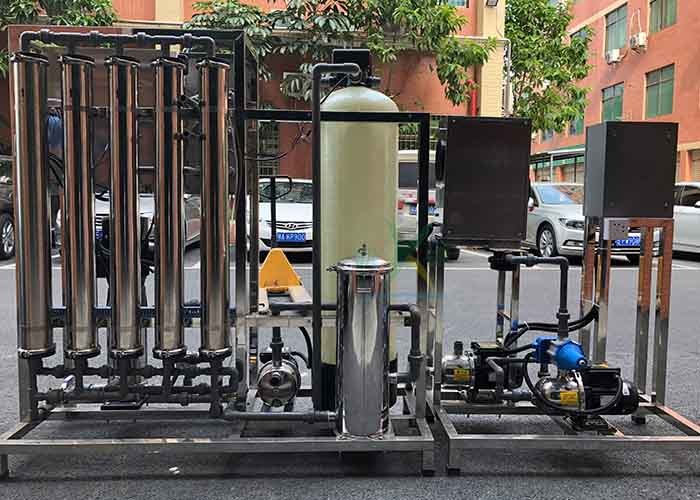

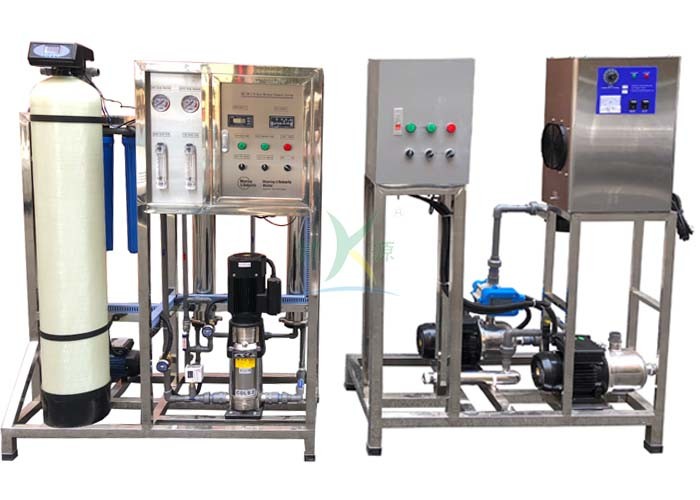

Drinking RO Water Treatment System Ozone Cycle System Sand Filter , Carbon Filter

RO Water Treatment System Introduction ?

RO system is raw water through precision filter, granular activated carbon filters, activated carbon

filters, compression, and then through the pump pressure, the use of reverse osmosis membrane

pore size 1/10000μm make a higher concentration of water into low concentration of water, while

the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed

with a large number of full isolation, to achieve the required physical and chemical indicators for

drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish

water quality. It is key equipment of pure water plant.

RO Water Treatment System Design basis and treated water standard:

Ø Raw water: Tap water / Underground water

Ø Produced water's application: Pure Drinking Water

Ø The capacity of produced water : 250LPH,500L/H,1000LPH,2000LPH

Ø System Configuration : Pre-treatment + One Stage RO Water Purification System +Post Treatment

Ø Designed Recovery : 75%

Ø Rejection rate : ≥ 97%

Ø Operation time up to 20hours per day

Ø Installation condition:Interior systems installation;Temperature:4-39℃

Ø Voltage : single phase / 3 phases , 380v / 220v, 50Hz / 60hhz;

Function:Mainly remove the mud, suspended solids and large particles in the tap water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Filter material: Fine quartz sand

Filter material Size: 1-2.5mm and 2.5-4.5mm

Function:mainly remove organic substances, residual chlorine and odor in tap water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Material: FRP

Filter material: Fine active carbon

Filter material Size: 20-40mesh

Function:mainly remove the calcium and magnesium in tap water, reduce the hardness of water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Material: FRP

Filter material: Resin 0.315-1.25mm

Function: Further filtration, to avoid quartz entry into RO to break the membrane

Shell Material: SUS304

Cartridge material: Spray-fusing polypropylene 5um 20’

Cartridge Qty: 5pcs

Function: the core part of pure water equipment, the production of high-purity water.

Parameters:

Model: ULP31-4040

Flow rate: ≥7.2m3/h(25°C)

Desalination rate %:99.4%

Max Inlet Water Temperature: 45 °C

Max Working Pressure:600pai(4.14Mpa)

Effective membrane area ft2(m2) :85(7.9)

Operation: automatic control, automatic flush

Membrane material: aromatic polyamide composite membrane

Membrane housing material: SUS 304

Function: provide enough pressure for reverse osmosis system

Model:CVF2-13T 1.5kw

Material: SUS304

Flow: 3.2m3/h

Lift: 60m

Function: According to a certain proportion of adding reverse osmosis antiscalant dosing, prevent reverse osmosis caused by dirt plugging in the long-running surface node membrane element, It can effectively disperse fouling. And prevent the deposition of iron and aluminum oxide

RO Water Treatment System Wroking process flow:

Raw water →raw water tank→raw water pump→ sand filter→ carbon filter→ softener filter→cartridge/security filter→high-pressure pump→ reverse osmosis host→ pure water tank
