Automatic Drinking Water Filter System 250LPH RO Plant Reverse Osmosis Filtration Equipment

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-250LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Item Name: Drinking Water Filter System 250LPH Production Capacity: 250liters Per Hour
Recovery Rate: 50% - 75% Electrical Power: 220 / 380V 50Hz / 60Hz
Tank Material: FRP / Stainless Steel / Carbon Steel Control Valve: Automatic / Manual
Warranty: 1 Year
High Light:

reverse osmosis water filter system

,

ro reverse osmosis water filter


Product Description

Drinking Water Filter System 250LPH RO Plant Reverse Osmosis Filtration Equipment



1.Product Description

Equipment summarize:
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt.

The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.

2.Product Details

KYRO-250LPH RO Water Purifier Machine:

1. Capacity: 250L/H
2. Rated power: 1.5KW/H
3. Desalting rate:>=97%
4. Water recovery rate: 50-75%
5. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase


3. Product Processing

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point

4. Some parts function


1. Raw water pump: provide needed pressure for every pre-treatment filter;

2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. UV Sterilizer(for direct drinking): kill bacteria , viruses , cell damage , atc...





5.  Application

**Textile, chemical industry, process water / chemical recycled water, chemical products manufacturing purification and preparation of water ;
**Food and beverage industrial water, purified drinking water, beverages, beer, liquor, health care products such as water purification and preparation of water;
**Seawater, brackish water desalination islands, ships, offshore drilling platforms, brackish water areas
**Larger community, real estate property, schools, factories, hospitals, and the restaurants, hotels, beauty salons, canteens and other various types of enterprises and institutions.
**Integrated circuits, silicon wafers, display tubes and other electronic components of electronic industrial water rinse water
**Can be used for filling water bottled water, mineral water and other preparation work

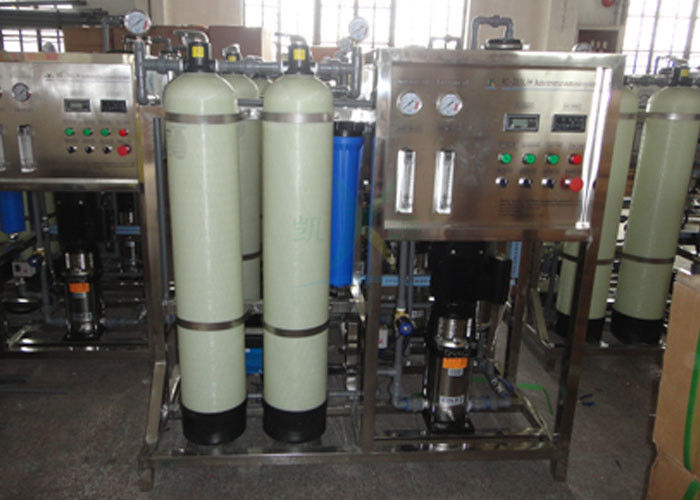

6. Pictures show

1. Raw water pump 10. Output water pressure
2. Quartz sand filter 11. Dense water flow
3. Activated carbon filter 12. Pure water flow
4. Manual control valve 13. Pure water conductivity monitor
5. Inlet water pressure gauge 14. PC controller
6. Outlet water pressure gauge 15. Raw water pump control switch
7. High pressure pump 16. High pressure pump control switch
8. RO membrane 17. Total power ON & OFF
9. Input water pressure 18. Ultraviolet Sterilizer



Automatic Drinking Water Filter System 250LPH RO Plant Reverse Osmosis Filtration Equipment 0
Automatic Drinking Water Filter System 250LPH RO Plant Reverse Osmosis Filtration Equipment 1

Automatic Drinking Water Filter System 250LPH RO Plant Reverse Osmosis Filtration Equipment 2
