|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||>= 1sets|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||20-25working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|RO Membrane:||USA DOW||Production Capacity:||1TPH|
|Recovery Rate:||50% - 75%||Electrical Power:||380V 50Hz 3Phase Or Others|
|Membrane Housing:||FRP / Stainless Steel||Control Valve:||Automatic/ Manual|
|Function:||Mineral Drinking Water||Certification:||ISO9001, CE, SGS|
reverse osmosis water filter system,
ro reverse osmosis water filter

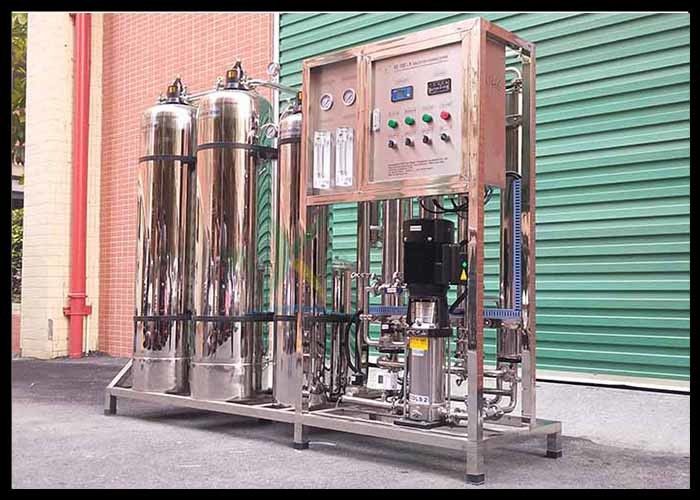

1000LPH SS Automatic RO System Water Treatment Plant With Mineralized Ball Filter
Description: This drinking water purification plant uses mechanical filters,activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles , organic colloids,organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water. Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.
Reverse osmosis technology
With the report of raw water analysis and the different requirements in different field, we can make a appropriate design for you.
1) Adopts RO membrane from USA DOW, which can remove 99.9% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on.
2) No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost.
3) Equipped with pretreatment system, such as active carbon absorption filter and refined quartz sand filter
4) 304 stainless steel rack and pipe accessories connection.
5) Equipped with auto pressure protection system and on -line monitor.
6) Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional)
7) The lifespan of the whole system is long, operation simple, the applicability is strong
|1. Design recovery rate for whole plant can up to 80%
2. PLC automatic control, manual/auto switching
3. Auto flush for ro membrane,filter
4. Low&high pressure protection, water level on-line monitoring, water conductivity on-line display
5. Equipment with pressure gauge, flow meter ,etc to real-time monitoring
|food,dairy,beverage,biology and pharmacy,boiler,brewing,electronic,electric appliance,electroplate,leather,printing and dying,painting and dying,paint,chemical industrial,surface treatment etc,supply water treatment production line and all other industrial equipment of de-ion water|
|Low power consumption, completely made of 304 stainless steel, the pretreatment equipment and pipeline valve are all sanitary material, conpact conformation, convenient to tranport. No need works to operate. It is PLC program controlled. Installed with conductivity meter monitor,pressure gauge and flow meter.|
|original water pump,mechanical filter,activated carbon filter,ultrafilter high pressure pump, RO systems ,cleaning system, high and low pressure protection system ,automatic liquid level control system ,automatic alarm system ,automatically stop when the water tank is full, automatically run when the water tank is empty.|
Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + mineralized ball filter + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + water supply point
|Some parts||1. High Pressure Pump|
|2. Raw Water Pump||3. Inlet / Outlet Pressure Meter|
|4. Low Pressure Protection Switch||5. Dense Water Solenoid Valve|
|6. Inlet Water Regulating Valve||7. PLC Control Panel|
|8. Dense Water Regulating Valve||9. Outlet Water Regulating Valve|
Kaiyuan do our best to meet your water demand solution!!. ^^
