1000LPH Reverse Osmosis Plant Water Treatment / Pure Water Purification System

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-1000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Plant Name: 1000LPH Reverse Osmosis Plant Water Treatment Production Capacity: 1000liters Per Hour
Recovery Rate: 50%-75% Electrical Power: 220/380V 50/60Hz
Pipe Fitting: SUS304/ U-PVC Application: Pure Water / Industrial Water
Size: 1550*620*1670MM Desalination Rate: >=97%
High Light:

reverse osmosis water filter system

,

ro reverse osmosis water filter


Product Description

1000LPH Reverse Osmosis Plant Water Treatment Appliances RO Pure Water Purification System



RO(Reverse Osmosis, RO), the basic working principle is : using of a special high pressure
pump, increasing pressure to raw water, then force raw water penetrating through reverse
osmosis membrane under the pressure. Only water molecules and solvent less than microns
can pass through the RO membrane.



Industrial water filter, the raw water is underground water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. the system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².



Flow chat


raw water→raw water tank→ raw water pump→ sand filter→ carbon filter→softener (optional)→ security filter→ high pressure pump→ reverse osmosis system→ UV sterilizer (ozone generator) →pure water storage tank



Working process of reverse osmosis water treatment machine :



1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.

2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,

6. High pressure pump-- Provide the high pressure to RO membrane ro.

7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.



Application of 1000LPH RO Plant



Electronics Industry

Silicon,micro-electronics products with high water. Semiconductors,tubes and other manufacturing industries with high water. The using of production water batteries in lithium batteries, solar power batteries, dry cell batteries.

Food and Beverage field

Pure water, distilled water, mineralized water, natural water,mineral water. The using of production water in liquor blending and beer production. The using of pure water in food and beverage production. The supply of drinking water for hotels, building and uptown.

Phamaceutical industry

Pharmaceutical, injection with pure water, high pure water and sterile water,etc. Purification and separation of drug raw materials. Medical hemodialysis, biochemical analysis and water for injection.

Cosmetics

The using of pure water in the production of skincare, shampoo,toothpaste and other cleaning fluid.

Chemistry and

Chemical Engineering

The using of pure water in the production of chemical reagent, chemical fertilizers and paper making.

Surface Treatment:

The using of highly pure water in electroplating and glass coated. Ultrasonic cleaning with pure water. The surface coating and cleaning automotive,appliance, building material products with pure water.

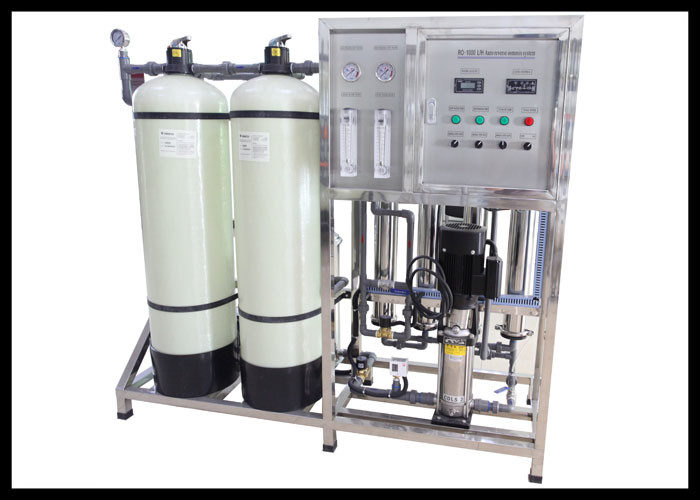

Photo Show of 1000LPH RO Plant

1000LPH Reverse Osmosis Plant Water Treatment / Pure Water Purification System 0

1000LPH Reverse Osmosis Plant Water Treatment / Pure Water Purification System 1

1000LPH Reverse Osmosis Plant Water Treatment / Pure Water Purification System 2



Welcome to send us inquiry if you're interested in our products! Thank you!^-^



Tag: RO Water Treatment System, Ultrapure Water System
