Water Treatment Industrial Reverse Osmosis Water System , 50T Demineralized RO Membrane System

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-50TPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>300sets/month

Get Best Price Contact Now

Detail Information

Name:	50T Demineralized RO Membrane System	Production Capacity:	50TPH
Recovery Rate:	50% - 75%	Electrical Power:	380V 50Hz 3Phase (Customize Available)
Tank Material:	FRP / Stainless Steel / Carbon Steel	Control Valve:	Automatic / Manual
Pipe Fitting:	SUS304 / SUS316L / U-PVC	Operating Temperature:	5℃ - 39℃
High Light:	reverse osmosis water filter system , ro reverse osmosis water filter

Product Description

Water Treatment Industrial Reverse Osmosis Water System , 50T Demineralized RO Membrane System

Process: Raw water pump - Sand filter - Carbon filter - Cartridge filter - High pressure pump-RO membrane host

Water outlet: Conductivity <10us/cm
Production Capacity: 50m³ per hour(water production basis on water temperature 25℃).

Application:

1. Produce pure water and high-purity water required for the production of electronic industry such as picture tube glass bulb, picture tube, liquid crystal display, circuit board, computer hard disk, integrated circuit, chip, monocrystalline silicon semiconductor, etc.

2. Preparation of heat and thermal power boilers, softened water and demineralized pure water required for medium and low pressure boiler feed water in factories and mines;

3. Preparation of medical infusions, injections, pharmaceuticals, biochemical products pure water, medical sterile water and artificial kidney dialysis pure water required by the pharmaceutical industry;

4. Drinking pure water, distilled water, mineral water, alcoholic brewing water and blending pure water for beverage (including alcohol) industry;

5. Seawater and brackish water to produce domestic water and drinking water;

6. Preparation of deionized water for electroplating process; pure water for battery (battery) production process; automobile, household appliances, building materials
Surface coating, cleaning chaotic water; pure water for coated glass; hard demineralized water required for textile printing and dyeing process;

7. Petrochemical industry such as chemical reaction cooling water; chemical pure water for chemical, chemical and fine chemical and cosmetic manufacturing processes;

8. High-quality water supply network system for hotel, building, community airport real estate property and swimming pool water purification;

9. Circuit board, electroplating, electronic industry wastewater treatment and reuse;

10. Treatment of life, hospital, tanning, printing and dyeing, paper industry wastewater and landfill leachate;

Parameter

Item No.	Equipment Name	Place of origin	Quantity
1	Pre-chlorination dosing system		2 pc
	Dosing Pump 0704	Prominent	1 pc
	Dosing Tank 100L		1 pc
2	Raw water pump CDLF85-10, SS316	CNP	2 pc
	A.Flow:80.0m3 / H, Head: 32m, K = 15.0kw
	B.include: Inlet/outlet water valve, pipe etc.		1 batch
3	Quartz sand filter φ2000×2700	KAI YUAN	2set
	A. Tank Material:Q235-A		2 pc
	B. Manual valve		2 pc
4	De-chlorination dosing system	KAI YUAN	1set
	Dosing Pump 0704	Prominent	1 pc
	Dosing Tank 100L		1 pcs
5	Antiscal dosing system	KAI YUAN	1set
	Dosing Pump 0704	Prominent	1 pc
	Dosing Tank 100L		1 pcs
6	PH adjustment	KAI YUAN	1set
	Dosing Pump 0704	Prominent	1 pc
	Dosing Tank 100L		1 pcs
7	Security filter	KAI YUAN	1set
	A. Material: SUS-316		1 pc
	B. Filter cartridge type: 40 "× 5μm		41 pcs
8	High-pressure pump CDLF85-4-2, SS316	CNP	1 pc
8	A. Flow: 80.0 m3 / h, head: 132m, K = 45.0KW	CNP
9	Reverse osmosis water system Capacity: 50.0m3 / h, maximum working pressure: 1.5MPa, desalination rate: 97%, system water use efficiency: ≥70%	KAI YUAN	1 set
	A. Membrane components 8040-6 Material: FRP	domestic	8 pcs
	B. Membrane BW30-400IG	USA DOW	48pcs
	C. Stainless steel rack		1 pc
	D. Inlet solenoid valve DN100		1 pc
	E. Dense water solenoid valve DN100		1 pc
	F. High-pressure inlet water regulating valve DN100		1 pc
	G. Dense water flow regulating valve DN100		1 pc
	H. Valves, low pressure pipe U-PVC, high pressure pipe SS316L		1 batch
	L. Instruments, meters, TDS meter		1 batch
10	PH online monitor		1set
11	Electronic Control System	ABB	1set
11	General control cabinet: PLC program controller, touch screen, 45kw converter, air switch, AC contactors, thermal relays, lights, knob switches, pressure switches etc
12	Auto flush system	KAI YUAN	1set
	A. Flushing pump: CHL16-30	CNP	1 pc
	B. Flushing tank: PE-2000		1 pc
	C. liquid level switch
	D. water solenoid valve
13	CIP system	KAI YUAN	1set
	A. Cleaning pump: CDLF65-1	CNP	1 pc
	C. water solenoid valve
14	chlorine dosing system
	A. Dosing Pump 0704	Prominent	1 set
	B.Dosing tank PE-100		1 set
15	Filler
15	A.quartz sand	Domestic	13T
16	Scene valves, U-PVC pipe	Domestic	1 batch

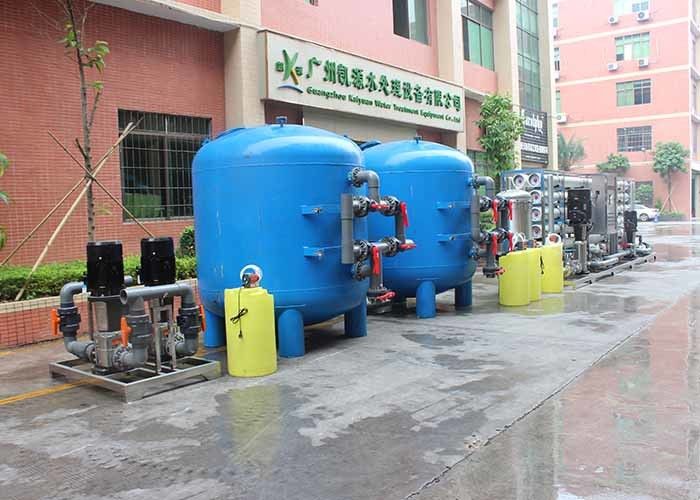

Water Treatment Industrial Reverse Osmosis Water System , 50T Demineralized RO Membrane System 0

Packaging

Water Treatment Industrial Reverse Osmosis Water System , 50T Demineralized RO Membrane System 1

Water Treatment Industrial Reverse Osmosis Water System , 50T Demineralized RO Membrane System 2
