|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||>= 1sets|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||1-7working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Name:||500L Reverse Osmosis Water Treatment Equipment||Production Capacity:||500LPH|
|Recovery Rate:||50% - 75%||Electrical Power:||380V 50Hz 3Phase (Customize Available)|
|Tank Material:||FRP / Stainless Steel / Carbon Steel||Control Valve:||Automatic / Manual|
|Pipe Fitting:||SUS304 / SUS316L / U-PVC||Operating Temperature:||5℃ - 39℃|
reverse osmosis water filter system,
ro reverse osmosis water filter

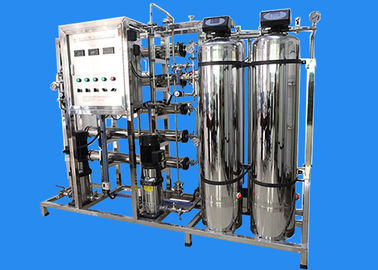

500LPH Reverse Osmosis Water Treatment Equipment Medical Machinery Pure Water System Biopharmaceutical Sterile Water Plant
Influent index: Municipal tap water
Water production index:Conductivity ≤ 5us/cm ( resistivity ≥ 0.2MΩ.CM ), in line with the Pharmacopoeia 2015 standard
Recovery rate: 70% of first stage, 80% of two stage
Working time: can run 24 hours a day
Inlet water temperature: 5°C-39°C
Introduction to medical equipment purified water equipment
The second-stage reverse osmosis purified water equipment adopts the purified water treatment technology widely used today. The pre-treatment combined with the + reverse osmosis system can effectively remove the salt and impurities in the water, which is the standard of purified water and has advanced technology.
The production water quality is stable, easy to operate, and easy to maintain. It can be used in the medical device industry, meets the requirements of the 2015 Chinese Pharmacopoeia, meets the requirements of the US and European Pharmacopoeia, and can pass the GMP standard and FDA certification; the system adopts the automatic control mode, the mobile computer can be remotely monitored and controlled in real time, and the operation fault can be automatically notified.
It runs and provides alarm information, and the operation is safe, stable and reliable. It is the preferred configuration mode for purified water equipment in the pharmaceutical production
and pharmaceutical industries.
Raw water tank(buyer supply)→ raw water pump→quartz sand filter →activated carbon filter→security filter→1st high pressure pump→1st ro membrane→2rd high pressure pump→2rd ro membrane→pure water tank+UV sterilizer(ozone generator)→pure water tank(buyer supply) +water supply point
1. The reverse osmosis forward water temperature is about 25 ± 2 °C.
2. Reverse osmosis system includes: security filter, high pressure pump, reverse osmosis membrane group, control instrument, etc.
3. The water treatment system of this project is based on the RO desalination system. The quartz filter, activated carbon filter and security filter are pre-processed to ensure the normal operation of the ro system.
4. Process characteristics: Compared with traditional ion exchange demineralization, reverse osmosis desalination has the advantages of long-term stable operation, high reliability, high processing precision, long operating cycle and low operating cost.
Reverse osmosis pure water equipment technical features
|1. Reverse osmosis is the desalting and desalting of brine containing water at room temperature using a non-phase-change physical method. At present, the desalination rate of the ultrathin composite membrane element can reach 99.5% or more.|
|2, the use of imported reverse osmosis membrane, high salt rejection rate, long service life, low operating costs;|
|3. Adopt automatic pretreatment system to realize unmanned operation;|
|4. Imported Grundfos booster pump, high efficiency, low noise, stable and reliable;|
|5. Online water quality monitoring and control to monitor water quality changes in real time to ensure water quality safety;|
|6, fully automatic electronic control program, also optional touch screen operation, easy to use;|
|7. Customized design that meets local water quality to meet all needs.|
|8. High degree of automation, low cost of operation and maintenance and equipment maintenance.|
|9. The treatment of water relies solely on the pressure of water as the driving force, and its energy consumption is the lowest among many treatment processes.|
|10, do not use a large number of chemical agents and acid, alkali regeneration treatment, no chemical waste liquid discharge, no environmental pollution.|
|11. Reverse osmosis can continuously run water, the system is simple, the operation is convenient, and the product water quality is stable.|
|12. The equipment footprint and operation space are small.|
Water treatment accessroies^^
|1. Pressure guage||2. Automatic control vlave|
|3. Water solenoid valve||4. UV sterilizer|
|5. Pipe flowmeter||6. Pressure swith|
|7. Lingxiao raw water pump||8. Sanitation grade valve|
