|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||>= 1sets|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||1-7working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Name:||500LPH Manufacturer Customized Water Treatment Equipment Reverse Osmosis Water Purifier Filter||Production Capacity:||500LPH|
|Recovery Rate:||50% - 75%||Electrical Power:||380V 50Hz 3Phase (Customize Available)|
|Tank Material:||FRP / Stainless Steel / Carbon Steel||Control Valve:||Automatic / Manual|
|Pipe Fitting:||SUS304 / SUS316L / U-PVC||Operating Temperature:||5℃ - 39℃|
reverse osmosis water filter system,
ro reverse osmosis water filter

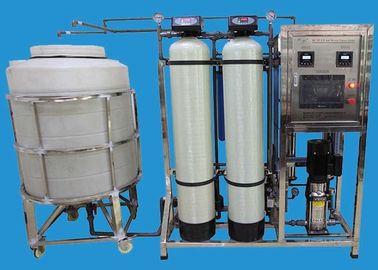

500LPH Manufacturer Customized Water Treatment Equipment Reverse Osmosis Water Purifier Filter
RO reverse osmosis introduction:
The principle of pure water treatment technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane. The reverse osmosis technology treatment process consists of three parts: a pretreatment process, a membrane module joining process, and a post-treatment process. The pretreatment process, also known as the pretreatment process, aims to improve the treated water quality, prevent contamination of the membrane by water contaminants, prolong the service life of the membrane, and reduce operating costs.
Component connection method: It is often divided into first-level and multi-level connection (divided into one-stage and multi-stage). The so-called first-level means that the feed is subjected to membrane separation after one pressurization, and the second-stage separation is subjected to membrane separation by secondary pressurization. The reverse osmosis method has high desalination rate, can simultaneously remove bacteria, endotoxin and other organic matter and has low operating cost. It is widely used for desalination of dry seawater and brackish water, preparation of pure hydration in drinking water and pharmaceutical industry of food industry, Particularly suitable for industries that require both desalination and bacterial microparticle removal.
The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed. The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.
Reverse osmosis pure water equipment parameters
|1. Pure water output: 500L/hour; (actual water output is higher than standard design value)|
|2. Inlet water source: municipal tap water or ground water etc...|
|3. Outlet water quality: conductivity is less than 3us / cm(TDS is <2PPM), desanilation rate is 97%|
|4. Outlet quality meets the standards of the urban construction industry of the People's Republic|
|5. Rated power: 2000w|
|6. Rated voltage: 220v or 380v|
|7. Water pressure: 0.1mpa or more|
|8. Packaging type: wooden frame packaging|
Reverse osmosis pure water equipment technical features
|1. Reverse osmosis is the desalting and desalting of brine containing water at room temperature using a non-phase-change physical method. At present, the desalination rate of the ultrathin composite membrane element can reach 99.5% or more.|
|2, the use of imported reverse osmosis membrane, high salt rejection rate, long service life, low operating costs;|
|3. Adopt automatic pretreatment system to realize unmanned operation;|
|4. Imported Grundfos booster pump, high efficiency, low noise, stable and reliable;|
|5. Online water quality monitoring and control to monitor water quality changes in real time to ensure water quality safety;|
|6, fully automatic electronic control program, also optional touch screen operation, easy to use;|
|7. Customized design that meets local water quality to meet all needs.|
|8. High degree of automation, low cost of operation and maintenance and equipment maintenance.|
|9. The treatment of water relies solely on the pressure of water as the driving force, and its energy consumption is the lowest among many treatment processes.|
|10, do not use a large number of chemical agents and acid, alkali regeneration treatment, no chemical waste liquid discharge, no environmental pollution.|
|11. Reverse osmosis can continuously run water, the system is simple, the operation is convenient, and the product water quality is stable.|
|12. The equipment footprint and operation space are small.|
Raw water tank(buyer supply)→raw water pump → quartz filter → activated carbon filter → (softener) → security filter → high pressure pump → reverse osmosis system → pure water tank(buyer supply)→ water point
1. The reverse osmosis forward water temperature is about 25 ± 2 °C.
2. Reverse osmosis system includes: security filter, high pressure pump, reverse osmosis membrane group, control instrument, etc.
3. The water treatment system of this project is based on the RO desalination system. The quartz filter, activated carbon filter and security filter are pre-processed to ensure the normal operation of the ro system.
4. Process characteristics: Compared with traditional ion exchange demineralization, reverse osmosis desalination has the advantages of long-term stable operation, high reliability, high processing precision, long operating cycle and low operating cost.
Water treatment accessroies^^
Product Tag: RO Water Treatment System, Brackish Water System
