1TPH RO Water Treatment System / Ultra Water Purification Equipment 1 Year Warranty

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-1000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: 1TPH Reverse Osmosis RO Water Treatment Production Capacity: 1000liters Per Hour
Recovery Rate: 50%-75% Electrical Power: 380V 50Hz 3Phase
Operating Temperature: 5°C - 39°C Control Valve: Automatic / Manual
Pipe Fitting: SUS304 / U-PVC Warranty: 1 Year
High Light:

reverse osmosis water filter system

,

ro reverse osmosis water filter


Product Description

1TPH Reverse Osmosis RO Water Treatment Ultra Water Purification System for Africa and India



1. Product Description

Due to the RO membrane pore size of the membrane is about 10A. Can effectively remove the dissolved salts, colloids, microorganisms, organic matter, etc. from water (removal of up to 97% -99%), In the current high-water equipment, RO is the most widely used kind of desalination technology. Experts pointed out: reverse osmosis technology will be the most effective, and the most critical water treatment method in the next 20 years. It can be widely used in brackish water desalination, electronics and medicine using pure water, drinking water and so on. Has high rate of desalination, water-utilization is high, high degree of automation and low energy consumption

2. Product Parameter

KYRO-1000LPH RO Water Purifier Machine

1. Capacity: 1Ton Per Hour
2. Rated power: 2.5KW/H
3. Voltage: 380V 50Hz 3Phase
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
6. Conductivity of raw water: ≤400μs
7. Conductivity of pure water: ≤10μs


2. System Advantages


RO is the most advanced and most energy efficient membrane separation technology. And is also the most stable water treatment systems, which principle is in the role of higher than solution Osmotic, according to other substances can not through the semipermeable membrane to separate these substances and water.

⇔Auto stop when no water and full water.
Auto start when pure water tank have no water.
High efficient and low noise high pressure pump.
Inlet water solenoid valve to stop water when machine is stop.
Auto controller, RO membrane auto flush to protect membrane.
Main part (membrane) of reverse osmosis system is imported from USA.
Product water conductivity meter to monitor product water quality all the time.
Low pressure protection switch to protect high pressure pump when there is no raw water.
Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.


3. Product Processing



Process: raw water pump + quartz sand filter + activated carbon filter + security filter + high pressure pump + ro system + precision filter + water supply point


Some parts function:



1. Raw water pump: provide pressure to quartz sand filter/ activated carbon filter

2. Quartz sand filter: get rid of turbidity, suspended mater, organic matter, colloid ect.

3. Activated carbon filter: remove color, free chloride, organic matter, harmful matter and so on.

4. Micron filter: prevent any deposition of large Particles, most of the bacteria, and viruses going into RO membrane, the accuracy is 5 um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.

5. High pressure pump: provide high pressure to RO membrane(at least 2.0Mpa)

6. Manually wash RO membrane;

7. Manually wash RO memebrane with chemicals on machine;

8. Machine automatically stops when high water level of purified water, and runs when low level;

9. Multi-stage pumps protect the machine when lack of water;

10. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc.



4. Pictures Show

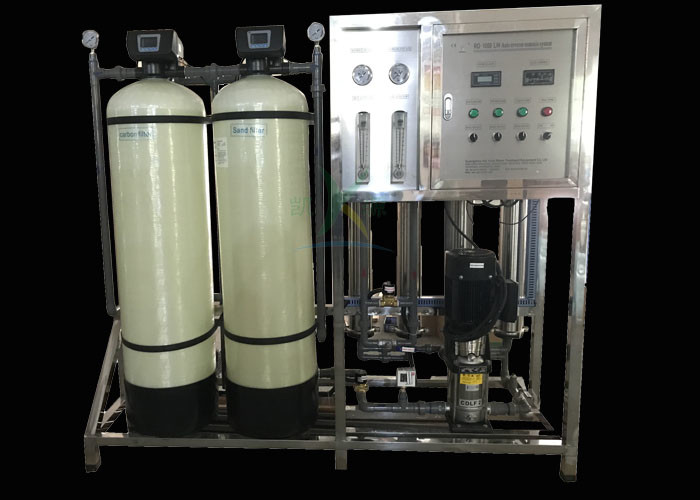

1TPH RO Water Treatment System / Ultra Water Purification Equipment 1 Year Warranty 0
1TPH RO Water Treatment System / Ultra Water Purification Equipment 1 Year Warranty 1
