10TPH RO Water Filtration Drinking Water Plant / Reverse Osmosis Water Filter

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-10TPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 20-25working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >100sets/month
Detail Information
Name: 10TPH Water Treatment Systems Production Capacity: 10TPH (customized From 250L/H To 200T/H)
Recovery Rate: 50% - 75% Electrical Power: 220V / 380V Or Others
Membrane Housing: FRP/ Stainless Steel Control Valve: Automatic / Manual
Pipe Fitting: SUS304 / U-PVC Application: Pure Water / Industrial Water / Mineral Water
High Light:

reverse osmosis water filter system


ro reverse osmosis water filter

Product Description

10TPH Water Treatment Systems RO Water Filtration Drinking Water Plant

1. Product Description
This water treatment system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles , organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water. Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.


2. Product Parameter

Reverse Osmosis systems(Ro systems) are our hot products.The capacity ranges from
1500GPD (0.25m3/h) to 3,000,000 GPD (500m3/h).
RO System Operating Parameters
1. Operating Pressure: < 300 psig
2. Maximum Recovery: 60% - 75%
3. Nominal Rejection: 95-99%
4. Operating Temperature: 2-35 ºC
5. Minimum Inlet Pressure: 30 psig
6. Design Temperature: 25 ºC


3. Application

Electronic industry water: integrated circuit, silicon wafer, display tube and other electronic components.
Pharmaceutical industry water: large infusion, injection, tablets, biochemical products, equipment cleaning etc.
Chemical industry process water: chemical circulating water, chemical products manufacturing, etc.
Food industry water: purified drinking water, beverage, beer, alcohol, health products, etc.
Seawater and saline water desalination: islands, ships, marine drilling platforms, saline water areas.
Purified drinking water: house properties, communities, enterprises, etc.

4. Advantages

1).Can produce pure water continuously and highly automatic
2).No need chemical to regeneration, easy operation
3).RO system uses imported USA DOW membrane
4).Automatic switch on when low water level, and switch off when high water level
5).RO membrane can wash automatically and reduce pollution
6).Water shortage protection for multi-stage pump
7).Production water conductivity meter can test the monitoring quality on line continuously.
8).Low operation Cost and Long life span
9).RO-PLC program controller
10).Easily control and Maintain
11) Auto flush/backwash

5. Process
Raw water----booster pump---quartz sand filter---activated carbon filter---water softener (optional)---security filter----high pressure pump---RO system---UV system (Ozone generator)---pure water tank
1. Raw water pump: provide the pressure to silica sandfilter/active carbon filter
2. Quartz Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Activated Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on
4, Softener: Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
5. Security filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
7. RO system--RO system is the main part of pure water treatment plant. The desaltation rate of RO membrane's can be as high as 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.

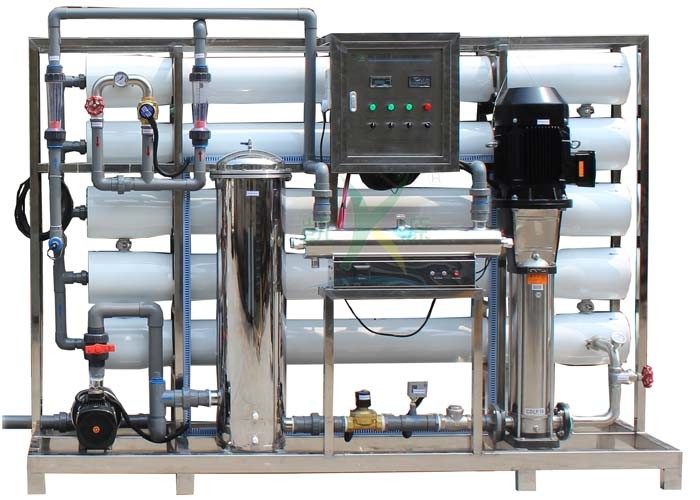

10TPH RO Water Filtration Drinking Water Plant / Reverse Osmosis Water Filter 0
10TPH RO Water Filtration Drinking Water Plant / Reverse Osmosis Water Filter 1
10TPH RO Water Filtration Drinking Water Plant / Reverse Osmosis Water Filter 2

Welcome to send us inquiry if you're interested in our products! Thank you!^-^
Product Tag: RO Water Treatment System, Brackish Water System
