Stainless / Carbon Steel Industrial Reverse Osmosis Equipment With 3T/H Capacity

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-3000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: 3T Industrial RO Water Treatment Production Capacity: 3000liters Per Hour
Recovery Rate: 50% - 75% Electrical Power: 110V - 415V 50Hz Or 60Hz
Tank Material: FRP/ Stainless Steel/ Carbon Steel Pipe Fitting: SUS304/ U-PVC
RO Rack Size: 2440*620*1850MM Pre-treatment Tank Size: Φ750 × 1900MM
High Light:

reverse osmosis water filter system


domestic water purification system

Product Description

3T/H Industrial RO Reverse Osmosis Water Treatment Purifier,Water Treatment,RO system water purification


1. Product Description

Reverse osmosis system is using city water as feed water.

Pre-treatment filters always contain quartz sand filter, activated carbon filter, water softener and security filter. Main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. And pre-filters can also reduce water residual chlorine and pesticide and other harmful pollutions. If raw water in high hardness, we will need to add water softener to protect reverse osmosis membrane.
2. Product Parameter
KYRO-3000LPH RO Water Treatment System:
1. Capacity: 4000L/H
2. Rated power: 4.0KW/H
3. RO System Rack Size: 2440*620*1850MM
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
8. Voltage: 110V - 415V , 50Hz or 60Hz , 3phase
3. System Performance
1. Main part (membrane) of reverse osmosis system is imported from USA.
2. Auto stop when no water and full water.
3. Auto controller, RO membrane auto flush to protect membrane.
4. Auto start when pure water tank have no water.
5. Low pressure protection switch to protect high pressure pump when there is no raw water.
6. High efficient and low noise high pressure pump.
7. Product water conductivity meter to monitor product water quality all the time.
8. Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
9. Inlet water solenoid valve to stop water when machine is stop.
4. Optional Components
A. Regulating wheels B. PC Touch Screen
C. Two-stage RO system D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
5. Application fields

1) Electronic industry, semiconductor industry ultrapure water treatment
2) Chemical industry, pharmaceutical industry pure water treatment
3) Food, beverage, drinking water, bottled drinking water, sachet/pouch packing pure drinking water treatment
4) Electroplating and leather industry waste water treatment
5) Brackish water desalination, sea water desalination, metallurgy and light industry pure water treatment
6) Cosmetic products, car battery, liquid fertilizer production pure water treatment
7) Edible cube ice, tube ice etc.
8) School, hotel, hospital, laboratory, surface treatment, hydraulic test, industrial boiler, power station boiler, high pressure boiler water treatment

6. Product Processing



Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point

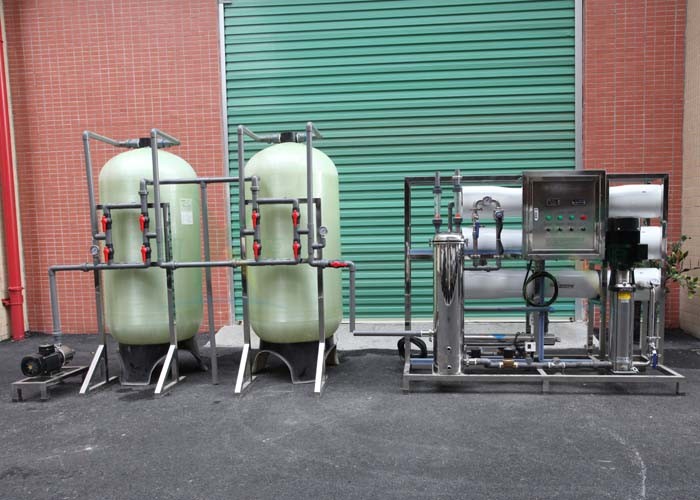

Stainless / Carbon Steel Industrial Reverse Osmosis Equipment With 3T/H Capacity 0

Stainless / Carbon Steel Industrial Reverse Osmosis Equipment With 3T/H Capacity 1

Stainless / Carbon Steel Industrial Reverse Osmosis Equipment With 3T/H Capacity 2
