|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||>= 1sets|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||1-7working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|RO Membrane:||USA DOW||Production Capacity:||2000TPH|
|Recovery Rate:||50% - 75%||Electrical Power:||380V 50Hz / 60Hz 3Phase|
|Tank Material:||Stainless Steel||Control Valve:||Automatic|
|Pipe Fitting:||SUS304||RO Rack Size:||2440*650*1750MM|
|Pre-treatment Tank Size:||Φ600 × 1900MM||Application:||Pure / Drinking / Industrial Water|
reverse osmosis water filter system,
ro reverse osmosis water filter
|Distilled Water Filling Machine Product And Stainless Steel 304 Material RO Water Purification|
|1. Product Description|
Reverse osmosis (RO) is a kind of water purification technology that uses a semipermeable membraneunder pressure applied to remove ions, molecules, and larger particles , bactaria and so on from water, and is used in both industrial processes and the production of potable water.
RO reverse osmosis system is the most economical and high efficient purification method.
Water filter reverse osmosis desalting rate ≥99%, desalination rate ≥97%, 99% of organic and bacteria can be removed;
Treated water under good electronic conductivity, one stage ≤10u s/cm, two stage around 2~3u s/cm, EDI≤0.5u s/cm(based on raw water ≤300 u s/cm;
|2. Product Parameter|
·NO chemical regeneration
·No hazardous waste discharge , be good for protecting environmental
·Continuous operation , simple operation
·Easy installation , maintenance and maintenance
|3. Breif Features|
|5. Product Processing|

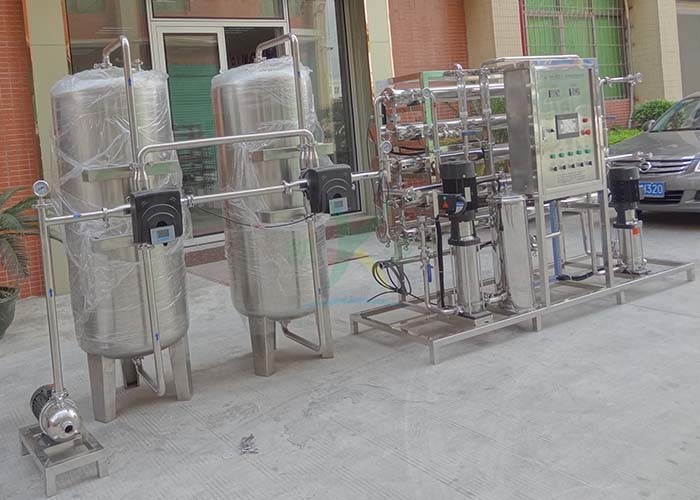

The process of 2000LPH RO water treatment plant
Raw water-- Raw water tank --Raw water pump --Quartz sand filter-- Active carbon filter-- Security filter-- high pressure pump-- RO systemPure water tank-- UV/Ozone --Pure Wate
1). Raw water pump-- provide the pressure to quartz sand filter/active carbon filter
2). Quartz filter-- get rid of turbidity, suspended matter, organic matter, colloid, etc.
3). Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4). Water Softener--using ion exchange resin to exchange "ions" of calcium and magnesium is the most common and the easiest method of removing hardness of water and render the water suitable for utility purpose
5). Security filter--It is also called cartridge Filter, prevent any deposition of large Particles, most of the bacteria, and viruses into the UF membrane and RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6). High pressure pump-- The high pressure pump is used for make sure there are enough water for satisfying designed production capacity.
7). RO (reverse osmosis) system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic
· Sea water desalination
· Medical and pharmaceutical , drinking pure water
· Wastewater treatment , material recovery and enrichment
· Circuit , electron , optics , chemical , petroleum , surface treatment and other industries with pure water
