8T/H Smart RO Water Treatment System / Purifier Filter System 50Hz With 3 Phases

Name: 8T/H Smart RO Water Treatment System / Purifier Filter System 50Hz With 3 Phases
Brand: Kaiyuan
SKU: KYRO-8000LPH
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (186 reviews)

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-8000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	20-25working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>100sets/month

Get Best Price Contact Now

Detail Information

RO Membrane:	USA DOW	Production Capacity:	8000liters Per Hour
Recovery Rate:	50% - 75%	Electrical Power:	380V 50Hz 3phase
Membrane Housing:	FRP/ Stainless Steel	Control Valve:	Automatic/ Manual
Pipe Fitting:	SUS304/ U-PVC	RO Rack Size:	30009001800MM
Application:	Pure Water / Industrial Water / Mineral Water
High Light:	reverse osmosis water filter system , ro reverse osmosis water filter

Product Description

8T/H smart ro water purifier filter system use famous brand pump

1. Product Description

Reverse Osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% of all bacteria in the feed water.

2. Product Parameter

KYRO-8000LPH RO Water Treatment System:

1. Capacity: 8000L/H we can do from 250L/H - 50,000L/H.

2. Rated power: 9.5KW/H

3. RO System Rack Size: 3000*900*1800MM

4. Water recovery rate: 50-75%

5. Voltage: 380V 50Hz 3phase

6. Source water : city water, underground water, river water....

7. Product water : drinking water /bottle water/pure water

3. Application

1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water

2). Food and beverage industry: filter for mineral water, wines and fruit juice

3). Medicine industry: filter for drug liquid, gases

4). Chemical industry: filter for organic solvent

5). Petroleum industry: filter for oil-field flooding

6). Power system

7). Metallurgical industry

8). Medical and pharmaceutical industry

9). Brackish water desalination etc

4. Advantages

1).Can produce pure water continuously and highly automatic

2).No need chemical to regeneration, easy operation

3).RO system uses imported USA DOW membrane

4).Automatic switch on when low water level, and switch off when high water level

5).RO membrane can wash automatically and reduce pollution

6).Water shortage protection for multi-stage pump

7).Production water conductivity meter can test the monitoring quality on line continuously.

8).Low operation Cost and Long life span

9).RO-PLC program controller

10).Easily control and Maintain

11) Auto flush/backwash

5. Process

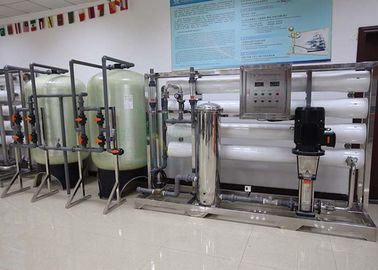

Raw water - raw water pump - sand filter - carbon filter - security filter - high pressure pump - RO system - UV - pure drinking water

Some parts function:

1.Raw water pump: provide needed pressure for every pre-treatment filter;

2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

7.Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...

8T/H Smart RO Water Treatment System / Purifier Filter System 50Hz With 3 Phases 0

8T/H Smart RO Water Treatment System / Purifier Filter System 50Hz With 3 Phases 1

8T/H Smart RO Water Treatment System / Purifier Filter System 50Hz With 3 Phases 2

If any interests & any questions just feel free to buzz me anytime^-^
