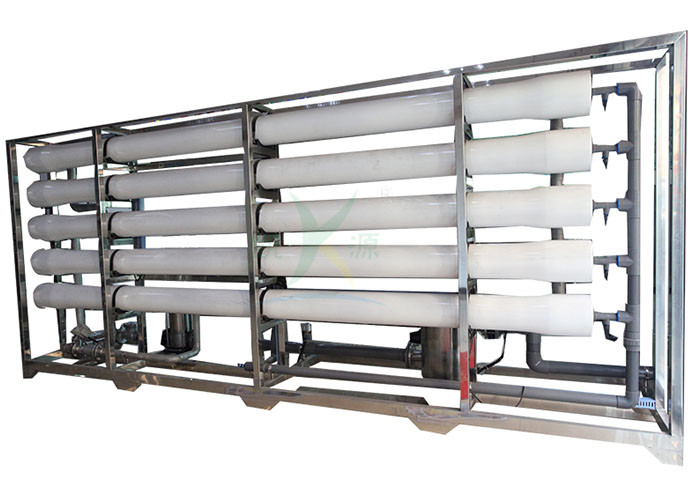

75% Recovery Iron Removal Water Treatment Systems 20T/H With USA DOW Membrane

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-20TPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 20-25working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >100sets/month
Detail Information
RO Membrane: USA DOW Production Capacity: 20TPH (customized From 250L/H To 200T/H)
Recovery Rate: 50% - 75% Electrical Power: 220V / 380V 3Phase Or Others
Membrane Housing: FRP/ Stainless Steel Control Valve: Automatic/ Manual
Pipe Fitting: U-PVC RO Rack Size: 5000*900*1950MM
Application: Pure / Drinking Water
High Light:

iron water treatment systems

,

iron removal water softener system


Product Description

75% Recovery Water Purification System 20T/H Ro Water Purification Machine With USA DOW Membrane



REVERSE OSMOSIS SYSTEMS IN GENERAL :

Reverse osmosis systems, with the most general definition, is removal process of the anion and cation ions by an advanced filtration method which the highest technologies are used as a water treatment system. Water is forced to pass from semi-permeable membranes by applying high pressure. Water cross flows from the surface to the center of the membrane. During this transition, organic and inorganic substances, heavy metals, projects veins, bacteria etc. in the structure of the water retains by the membrane and discharges from the concentrate line. 95% to 99% Purified water can be collected to a tank through permate line. System autoflush before the production starts in order to clean the surface of the membrane.



In this type of systems, for longer and effective use of membranes, pre-filtration and dosing systems must be done correctly.





INFRMATION  OF THE MACHINE

Mode KYRO-20TPH
Power Around 30.0KW
Voltage 380V/3ph/50Hz (customize available)
Desalination rate > 97%
Recovery rate 50%-75%
Material FRP, Stainless Steel , U-PVC
Configurations CNP pump&USA DOW membrane
Certification CE & ISO & SGS





Advantage

1. System can produce water continuously, PLC program controlled, Simple in installation and operation
2. RO system be chosen the import USA DOW membrane
3. Tank level control, automatic stop when the raw water tank without water or pure water tank is full
4. RO system flushes RO membranes when it starts to work so that membrane fouling is reduced.
5. Nanfang(CNP) high pressure pumps or Denmark Grundfos high pressure pumps are adopted.
6. Product water quality is continuously monitored by conductivity meter.



ADDITIONAL SYSTEMS :

  • Particle Filters

  • Cartridge and Bag Filters

  • Sand Filters

  • Activated Carbon Filters

  • Water Softeners

  • Brakish Water Reverse Osmosis Systems

  • Sea Water Reverse Osmosis Systems

  • Containerized Reverse Osmosis Systems

  • Ultrafiltration Systems

  • Ultraviolet Disinfection Systems

  • Degassing Systems

  • Deionization Systems

  • Surface (River) Water Treatment Systems

  • Waste Water Treatment Systems

  • Chemical Dosing Units

Application



Electronic industry Pre-filter for ultra pure water, chemical products and pure water
Food & beverage industry filter for mineral water, wines and fruit juice, bottled drinking water
Medicine industry filter for drug liquid
Chemical industry filter for organic solvent
Petroleum industry filter for oil-field flooding



75% Recovery Iron Removal Water Treatment Systems 20T/H With USA DOW Membrane 0

75% Recovery Iron Removal Water Treatment Systems 20T/H With USA DOW Membrane 1

75% Recovery Iron Removal Water Treatment Systems 20T/H With USA DOW Membrane 2

75% Recovery Iron Removal Water Treatment Systems 20T/H With USA DOW Membrane 3



For more details, please do not hesitate to contact us.
