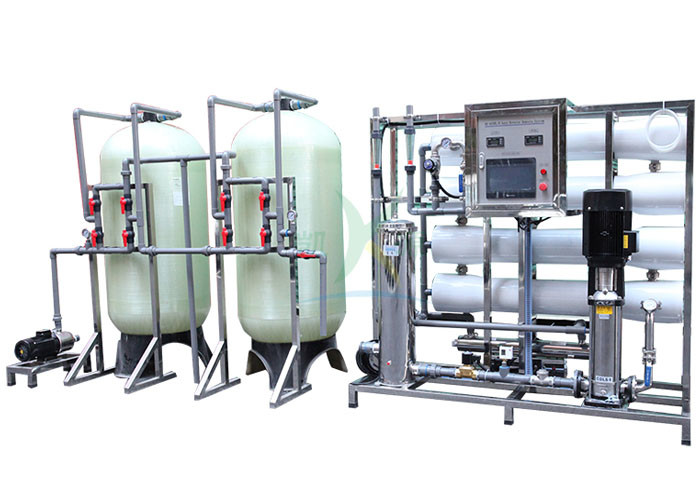

|4000LPH RO Water Treatment System Water Purifying Machine / FRP Tank U-PVC Pipe
Reverse osmosis system is using city water as feed water.
Pre-treatment filters always contain quartz sand filter, activated carbon filter, water softener and security filter. Main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. And pre-filters can also reduce water residual chlorine and pesticide and other harmful pollutions. If raw water in high hardness, we will need to add water softener to protect reverse osmosis membrane.
KYRO-4000LPH RO Water Treatment System:
1. Capacity: 4000 Liters per hour
2. Rated power: 4.0KW/H
3. RO System Rack Size: 2000*900*1800MM
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
8. Voltage: 110V - 415V , 50Hz or 60Hz , 3phase
√. Main part (membrane) of reverse osmosis system is imported from USA.
√. Auto stop when no water and full water.
√. Auto controller, RO membrane auto flush to protect membrane.
√. Auto start when pure water tank have no water.
√. Low pressure protection switch to protect high pressure pump when there is no raw water.
√. High efficient and low noise high pressure pump.
√. Product water conductivity meter to monitor product water quality all the time.
√. Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
√. Inlet water solenoid valve to stop water when machine is stop.
|A. Regulating wheels
||B. PC Touch Screen
|C. Two-stage RO system
||D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
|G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point
Some parts function
1.Raw water pump: provide needed pressure for every pre-treatment filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
6. Pictures Show
