Payment & Shipping Terms:
|RO Membrane:||USA DOW||Production Capacity:||500LPH|
|Recovery Rate:||50% - 75%||Electrical Power:||380V 50Hz 3Phase (Customize Available)|
|Tank Material:||FRP / Stainless Steel / Carbon Steel||Control Valve:||Automatic / Manual|
|Pipe Fitting:||SUS304 / SUS316L / U-PVC||Operating Temperature:||5℃ - 39℃|
reverse osmosis water filter system,
domestic water purification system

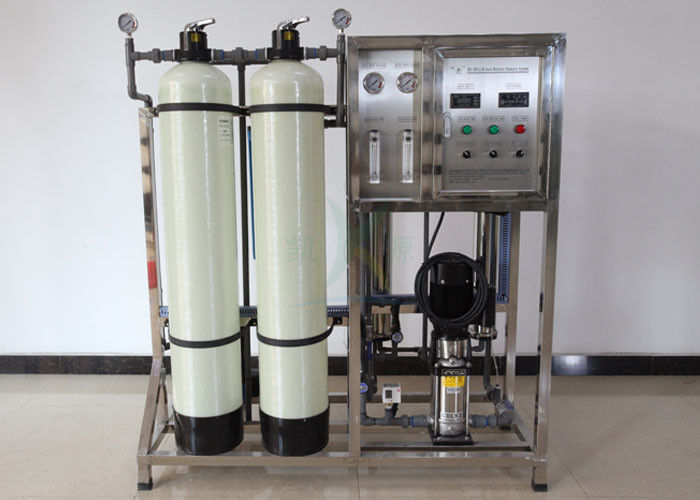

Manual Control And FRP Tank 0.5TPH RO Water Treatment System
Reverse Osmosis Filtration Plant Chemicals 500LPH
1. Product Description / RO Water Treatment System
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane.
It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt.
The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment.
The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity<2 us/cm.
2. Product Details / RO Water Treatment System
kyro-500lph RO Water Purifier Machine:
1. Capacity: 500L/H
2. Rated power: 1.5KW/H
3. RO System Rack Size: 1650*630*1800mm
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
6. TDS of raw water: ≤ 2000PPM
7. TDS of pure water: ≤ 60PPM
8. Voltage: 110V / 220V / 380V, 50Hz / 60Hz, single phase / 3phase
3. Component / RO Water Treatment System
There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 year.
We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.
4. Optional Components / RO Water Treatment System
A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank
5. Product Processing / RO Water Treatment System
Some parts function:
1.Raw water pump: provide needed pressure for every pre-treatment filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7.Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...
