UF Industrial Water Filter System Ultra Filtration Membrane Mineral Drinking Water Plant For Mountain Spring Water

large.img.alt
large.img.alt
video play

Large Image :  UF Industrial Water Filter System Ultra Filtration Membrane Mineral Drinking Water Plant For Mountain Spring Water

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-5000LPH
Payment & Shipping Terms:
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detailed Product Description
UF Membrane: UFc90AL Production Capacity: 5000liters Per Hour
Electrical Power: 220V / 380V 50Hz / 60Hz Tank Material: FRP / Stainless Steel
Control Valve: Automatic / Manual Pipe Fitting: SUS304 / U-PVC
Warranty: 1 Year Optional: Ozone/ UV / Water Softener
Prefiltering Tank: Glass Fiber / FRP
High Light:

UF Industrial Water Filter System

,

UFc90AL Ultra Filtration Membrane System

,

Water Filter System Ultrafiltration Equipment

UF Industrial Water Filter System Ultra Filtration Membrane Mineral Drinking Water Plant For Mountain Spring Water





1. Product Description



Ultrafiltration we also called UF, is the most widely used membrane separation technology, it is mainly used for separation of substances at high molecular level, it has very good effect on deeply reducing turbidity, clarification, sterilization, separation, concentration, classification and purification of macromolecular substances. In the field of water treatment, it can be used to remove suspend solids, colloids,particles, bacteria,pyrogen and macromolecular organic substances in water and make water purified.



2. Product Details



Parameters of 5TPH UF Water Purifier
Product Name
Material
Brand
Usage
Raw Water Pump
SUS-304
CNP
Provide needed pressure for every pre-treatment filter
Sand Filter
FRP
China
Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health.
Activated Carbon Filter
FRP
China
Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Security Filter
SUS-304
China
Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
High Pressure Pump
SUS-304
CNP
Provide needed pressure for RO system
UF Membrane
Ufc-200AM
China
Ultrafiltration membrane is a microporous filtration membrane with a rated pore size range of 0.01 microns or less. Used in the
separation, concentration and purification of biological products, pharmaceutical products and the food industry.
UV Sterilizer /Ozone generator
100W*2
China
Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water





3.Product Processing



Raw water →raw water pump→ sand filter→carbon filter→water softener(optional)→security filter→ UF system→UVpure water tank



UF Industrial Water Filter System Ultra Filtration Membrane Mineral Drinking Water Plant For Mountain Spring Water 0



Replacement time of consumable parts



There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. UF membrane: replaced about every 2 -3years
We suggest customers buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to be replaced every month.



Direction for UF membrane:



1--Principle:Ultrafiltration membrane is a microporous filtration membrane with a rated pore size range of 0.01 microns or less.



2--Industry:Used in the separation,concentration and purification of biological products, pharmaceutical products and the food industry. It is also used in terminal treatment devices for blood treatment, wastewater treatment and ultrapure water preparation.



5. Pictures Show

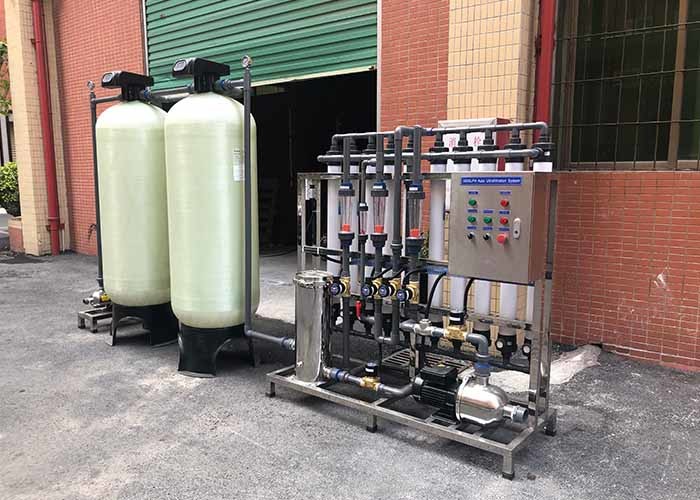

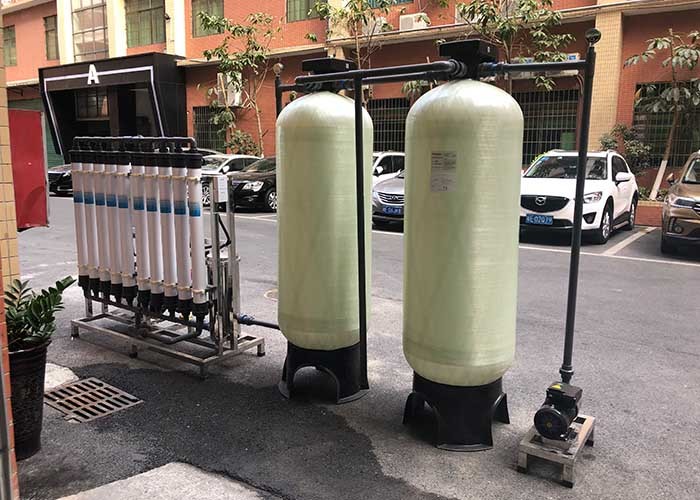

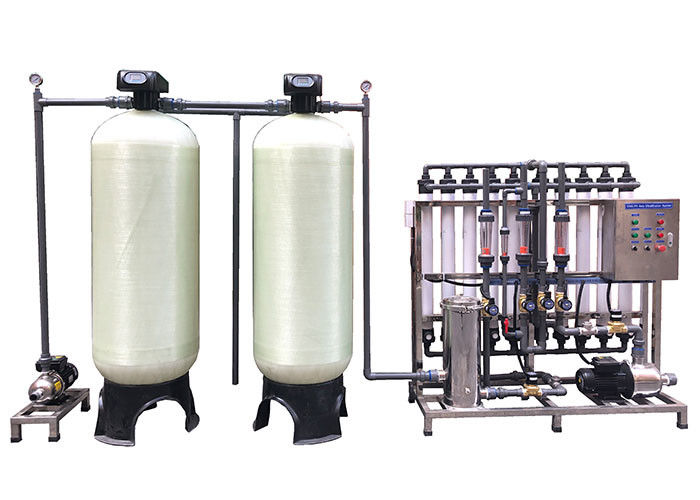

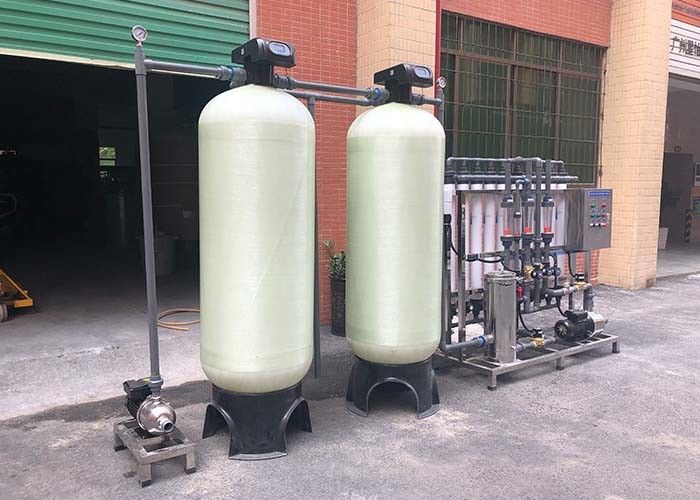

UF Industrial Water Filter System Ultra Filtration Membrane Mineral Drinking Water Plant For Mountain Spring Water 1



UF Industrial Water Filter System Ultra Filtration Membrane Mineral Drinking Water Plant For Mountain Spring Water 2




Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110


Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
