SUS-316 12000lph Reverse Osmosis Drinking Water System for Brackish Underground Well Water Filtration and Desalination
1.About brackish water ro system(raw water TDS =3000-20000) Description
a). Ro Technology: Our brackish reverse osmosis water system can treat high salt underground well water with TDS(total dissolved solid) from 2000ppm up to 20000PPM. And make the brackish water become domestic consumption line water for resident, irrigating water for algricultrure, industry water supplier, commercial bottle water company ect., which can solve the problem for country shortage in potable water. In this process, our system can remove particlesa,colloid,organic impurity,heavy metallic ions,virus.. to achieve the desalination rate more than 97%, thus getting output water achieved WHO Drinking water standard, This process donnot need any regeneration.
2.How to get the suitable Ro system?
Please send the following details to this supplier.
1.Your source water detailsif it's underground water(details included salinity or TDS/Conductivity, iron,ph,TSS,Color ect.) If you have saltless source water with clear and smelless surface, we will have standard reverse osmosis system or ultrafiltration system for you. Besides, we will have reverse osmosis ultra-pure water system to get ultrapure water with electricity less than 0.2micro-siemens/cm for special industries which needs ultra-pure water.
2.What's the capacity for the RO system you need? (we have successful experience offered systems to our clients from 500lph to 180000lph)
3.Your treated water Application? (For irrigating or drinking or other industrial purpose)
3.12M3/H reverse osmosis Ro water treatment system specification and photos.
| Item |
Specification |
| 1.Electricity Supply |
220v-450v, 50hz/60hz,3 phases Total power:35KW-----Can be customized |
| 2.Membranes Brand |
USA DUPONT, CHINA VONTRON, JAPANESE TORAY ect. |
| 3.Pump Brand |
CNP or European brands |
| 4.Motor Brand |
CNP or SIEMENS |
| 5.Control |
PC or SIEMENS PLC program control |
| 6.Desalination rate |
More than 97% |
| 7.Recovery rate |
at less 65% |
| 8.Material |
FRP(Fiberglass) with U-PVC, Stainless steel |
|
The whole system process: Raw Water Tank→Raw water pump→ sand filter→carbon filter→dosing system→security filter→High-pressure pump→ ro system(CIP Washing system)→ pure water tank
|

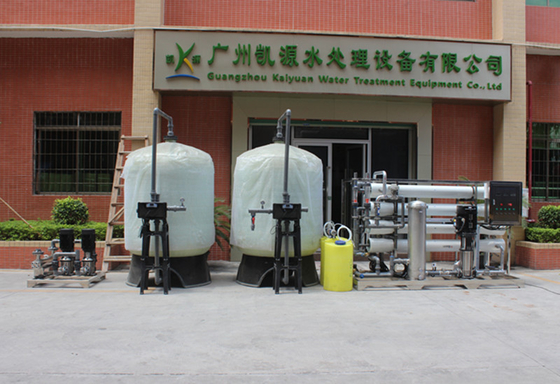

Installation of this machine in our client's site
4.More Small Reverse Osmosis System with different type of material
| Item |
Specification |
| 1.Electricity Supply |
220v-450v, 50hz/60hz,3 phases Total power:40KW-----Can be customized |
| 2.Membranes Brand |
USA DUPONT, CHINA VONTRON, JAPANESE TORAY |
| 3.Pump Brand |
CNP or European brands |
| 4.Motor Brand |
CNP or SIEMENS |
| 5.Control |
PC or SIEMENS PLC program control
|
| 6.Desalination rate |
More than 97% |
| 7.Recovery rate |
at less 50% |
| 8.Material |
FRP, U-PVC,Stainless steel SUS-304/316 |
| 9.Capacities |
From 500lph ro 50000lph |
|
The whole system process: Raw water tank(buyer offer)-Raw water pump-sand filter-carbon filter-water softener(resin filter)-micro filter-high pressure pump-Ro system-UV/Ozone Generator
|
| Machine Advantagee: |
| 1).System can produce water continuously, PLC program controlled, Simple in installation and operation |
| 2). RO system be chosen the import USA DOW membrane. |
| 3). Tank level control, automatic stop when the raw water tank without water or pure water tank is full |
| 4). RO system flushes RO membranes when it starts to work so that membrane fouling is reduced. |
| 5).CNP high pressure pumps or Denmark Grundofos high pressure pumps are adopted. |
| 6). Product water quality is continuously monitored by conductivity meter. |
| Consumbles Replacement Time: |
| 1.Quartz sand/actiavted carbon should be replaced every about 15 month |
| 2.PP filter cartridges should be replaced every about 1 to 3 months |
|
3.Ro membranes should be replaced about every 1.2 to 1.5 years
|
We can do engraving cursor for our client's brand logo on machines
5.Our Installation Experience for our other clients from different countries
6.Our Certificates--CE, ISO, Techology Patent Certificates ECT.
7.Our Exhibition--In Shanghai, Canton,AUE
8.Why Choose Kai Yuan Water?
1.We have the strict machine test for every machine before shipping, to ensure every machine operate smoothly.
2.We have the most careful package for every machine with both film and wooden case to ensure every machine will be not destroyed during shipping.
3.We have long-time cooperative shipping company with the best shippping price and service. For some country, the shipping country can help custom clearance.
4.Working in water treatment since 2002, we have lots of experience of customerized product for clients(professional water treatment knowledge), exporting and installating abroad.
5.Our company got many CE,ISO,SGS certificates for the high quality product and the mature technology for reverse osmosis, so we can help our customers to change the water they have now to the water they want.
6.Serving so mang customers from all over the world and we treat every customers as our good friend, we will invite our customer to the factory for visiting.Our factory is open to every one who wants to buy/know about water treatment plant.
7.Our machine price is set based on the sufficient market survey and we will have the most competitive price for our clients because we have long time coorperative material suppliers, which will offer the best quality and price material for us.
