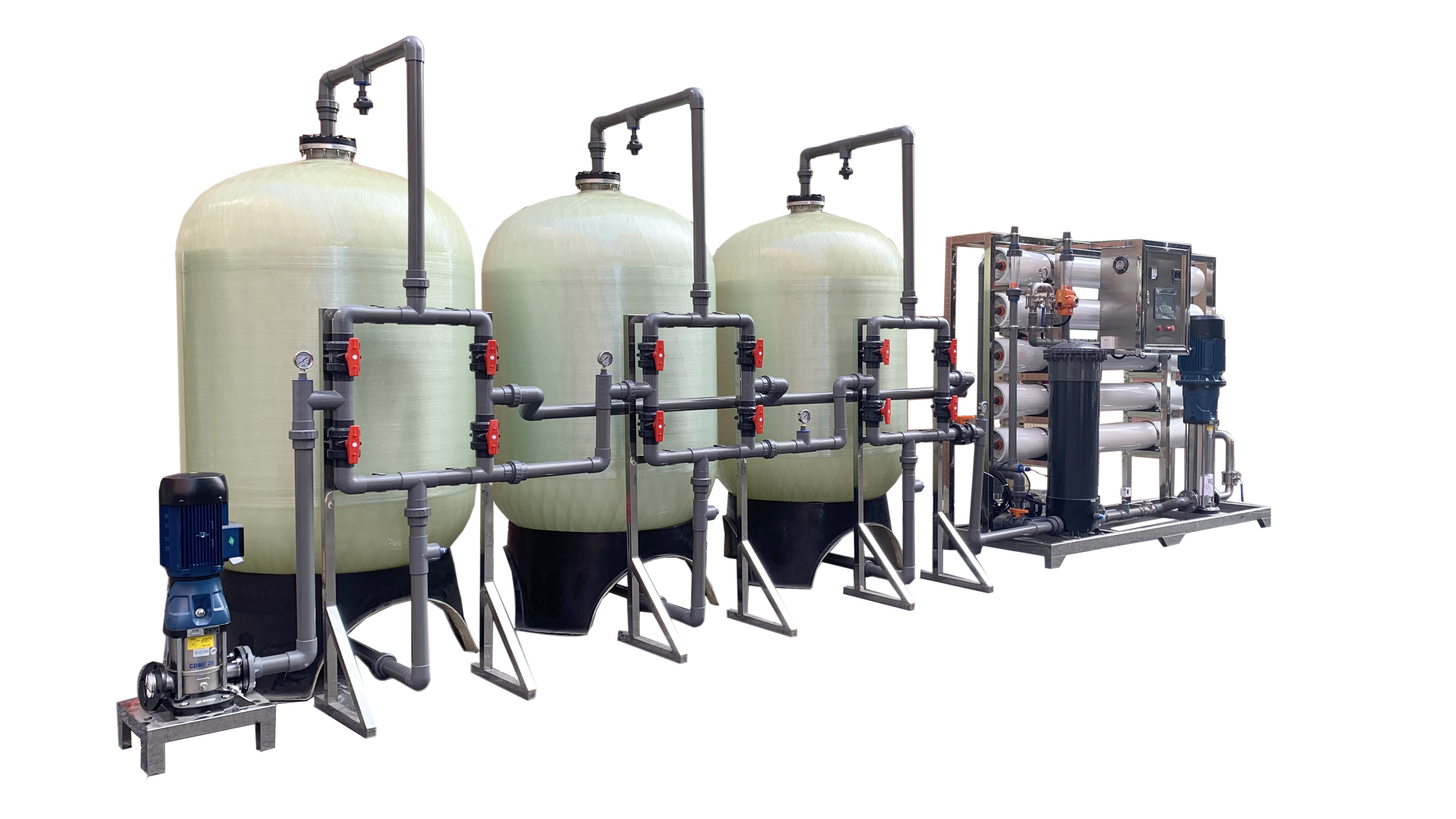

Reverse Osmosis Water Purifier 10tph Water Desalination Plant 10000liters per hour

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-10TPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Reverse Osmosis System Production Capacity: 10000liters Per Hour
Recovery Rate: 50% - 75% Application: Filtration
Tank Material: FRP/ Stainless Steel/ Carbon Steel Other Name: Drinking Water Treatment Systems
Pipe Fitting: FRP+ U-PVC Warranty: 1 Year
High Light:

10tph Water Desalination Plant

,

Water Purifier Desalination Plant

,

Reverse Osmosis Water Desalination Plant


Product Description

Purificador De Agua Osmosis Inversa 10tph Desaladora Por Planta De Tratamiento De Agua Para Venta Productos Aprobados

Reverse Osmosis Water Purifier 10tph Desalination Plant For Water Treatment Plant For Sale FRP Products



Ro Water Purifier MachineDescription


Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogen, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogen, and 99% bacterial in the feed water.

Brackish water, according to the organic content can be devided into surface water and ground water . surface water we can reverse osmosis system mating with relative sterilization system , ground water we can direct use reverse osmosis system , if Iron and Manganese overpass the inlet condition of RO ,we need add Manganese sand filter for pre treatment system , here also include the specific inlet condition of RO system for reference.




Ro Water Purifier Machine Details



Capacity

10TPH

Water recovery

more than 50%

Function

Producing Fresh Water

Type

Pure Water Treatment System

Application

Filtration

Material

FRP+PVC/stainless teel

Usage

Pure Water Process

Voltage

110V / 220V / 380V

Desalting rate

more than 97%

Membrane

USA Filmtec DOW



Ro Water Purifier Machine Processing



Reverse Osmosis Water Purifier 10tph Water Desalination Plant 10000liters per hour 0

Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point



Parameters of 10TPH RO Water Purifier
Product Name
Material
Brand
Usage
Raw Water Pump
SUS-316
CNP
Provide needed pressure for every pre-treatment filter
Quartz Sand Filter
FRP
China
Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health.
Activated Carbon Filter
FRP
China
Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Iron Removal Filter FRP China    Remove Iron
Security Filter
FRP
China
Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
High Pressure Pump
SUS-316
CNP
Provide needed pressure for RO system
RO Membrane
BW30-400IG
USA,DOW
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts.
UV/Ozone Generator
100W*2
China
Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water



Ro Water Purifier Machine Application:

◊Boiler water treatment in power generation industry

◊Ultrapure water preparation in electronics and semiconductor industry

◊Purified water used for pharmaceutical industry

◊pure water for food and beverage industry RO Water System For Seawater Desalination

◊sea water and brackish water desalination RO Water System For Seawater Desalination

◊Wastewater treatment for metallurgical industry, light industry, electroplating industry and leather manufacturing industry.



Ro Water Purifier Machine Details



Reverse Osmosis Water Purifier 10tph Water Desalination Plant 10000liters per hour 1
