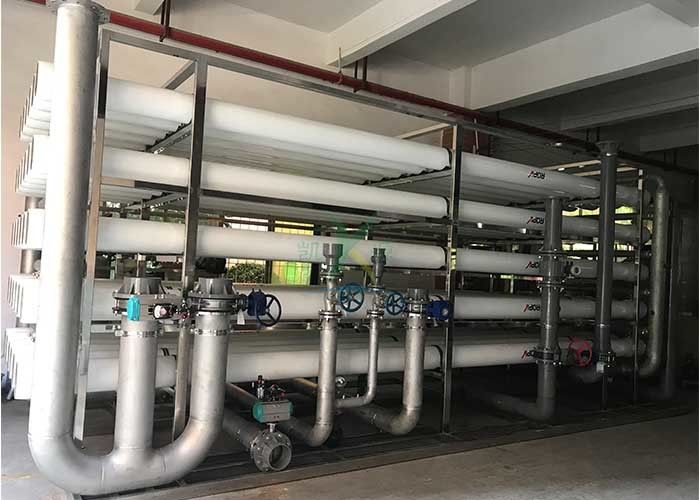

180T/H Brackish Water Ro System For Industrial Domestic Sewage MBR / MBBR Recycling System

1. Feed pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
2. Multimedia filter(Quartz sand filter): mainly remove the mud, suspended solids and large particals in the tap water
3. Activated carbon filter: usually rated by the size of the particles they are able to remove, measured in microns, and generally range from 50 microns (least effective) down to 0.5 microns (most effective).
4. Fine filter: further filtration, protection of reverse osmosis membrane
5. High pressure pump: provide enough pressure for reverse osmosis system
6: Reverse osmosis unit: the core part of pure water equipment, the production of high-purify water
7. Ozone generator: produces ozone gas, which is then released into an area containing water to kill microorganisms and remove odors
8. Rinse tank: protect the membrane system without polluted by using chemical agent
9. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
10. Carbon filter: mainly remove organic substance , residual chlorine and odor in tap water
11. Pure water tank: storage pure water, can change the size of the water tank after the below process. The water result is pure enough for different application.
