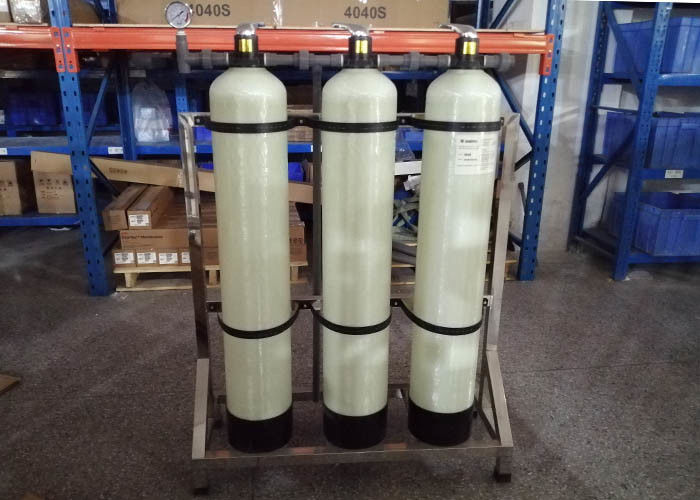

Water Treatment Accessory Sand/ Carbon/ Softener Filter Remove Partical Impurity/ Odor Color/ Turbidity/ Chlorine
e.g.: 500LPH pretreatment:
a: quartz sand 100kg
b. activated carbon 25kg
c. cation resin 50L
d. tank optional: fiber glase (FRP) / stainless steel (SS)
e. Inlet/outlet water pressure meter 0-7kg
f. Automatic/ manual control valve optional
g. Pipe and manual valve: U-PVC or stainless steel optional
1.Quartz sand principle
|
fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
|
2. Activated carbon filter
|
fill activated carbon inside, to remove color, odor, residual chlorine and organics substances
|
3.Softener filter
|
adopt cation resin to soften wate, absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water.
|
First stage pretreatment.(Sand filter): The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment (Carbon filter): Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Third stage pretreatment (Resin softener): Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
Component:
| There are several kinds of consumables you need to replace regularly. (500LPH) |
| a. Quartz sand: replaced about every 15 months. 50kg big sand+50kg small sand |
| b. Activated carbon: replaced about every 15 months. 25kg/bag |
| c. Resin: replaced about every 15 months. 50L/bag |
Application
| 1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water |
| 2). Food and beverage industry: filter for mineral water, wines and fruit juice |
| 3). Medicine industry: filter for drug liquid, gases |
| 4). Chemical industry: filter for organic solvent |
| 5). Petroleum industry: filter for oil-field flooding |
| 6). Power system |
| 7). Metallurgical industry |
| 8). Medical and pharmaceutical industry |
| 9). Brackish water desalination et |
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
