Home > Products> Automatic Water Filling System> 200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon

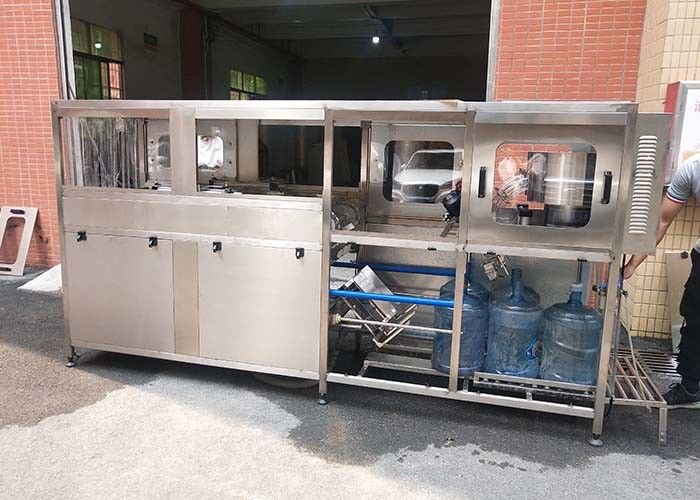

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon
200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon
200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon 200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon 200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon 200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon
Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KY-5gallon bottle filling machine
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Get Best Price Contact Now
Detail Information
Name: 5 Gallon Filling Bottle Machinery Rated Production Capacity: 200-252 Bottle/hour
Bottle Volume: 18.9L = 5gallon Bottle Size: 270*490*56mm
Rated Input Power: 1KW Supply Voltage: AC: 220V/ 380V 50Hz
Package Size: 3200x1000x1570mm Gross Weight: 408KG
Highlight:

200bph Bottle Filling Machine

,

1KW Bottle Filling Machine

Product Description



200bph semi automatic washing-filling-capping bottle filling machine

double raw 3 in 15 gallon filling bottle machinery


PLC-controlled
Auto bottle washer, filler, capper process: Put in the bottle--thimerosal flushing--pure water flushing--drop bottle--push bottle--pure water filling--capping--the final product

The machine can pack kinds of non-carbonated liquid material widely, especially source, vinegar, syrup, beverage, confect beverage(also the cold beverage makes ice bag), soy milk, mineral water, greese bean curd and liquid.


Machine's characteristics:
a. All function adopt air-motive technology except the pumps, make the station moves smoothly, accurate positioning, clean the bottle. Air drive cap-press can overcome different bottle's height difference, make sure the cap pressed tight and accurate.

b. The machine highly structured, linear type. Professional design of the station, small volume, light weight, reliable mechanical capacity, and durable.

c. Adopt PLC control system, make the whole process full auto. d. High capacity of cap-arranging bin, but not more than 30pcs.

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon 0
200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon 1
Main technology data
Item
Specification
Rated production capacity
200 bottle/hour
Largest production capacity
252 bottle/hour
Bottle's volume
18.9Liters (5gallon)
Bottle's spec
ø270*490*ø56 mm
Cap's spec
ø58*40 mm (brain length 18mm, width 7.5mm)
Rated input power
1KW
Cap-arranging motor power
40W*2
Power of the pump: a. Medicine flushing pump
0.37KW 2pcs
Power of the pump: b. RO water flushing pump
/
Power of the pump: c. Filling pump
0.55KW 2pcs
Air cylinder: a. Shifting
0.55KW 1pc
Air cylinder: b. Pushing
SC50*450 1pc
Air cylinder: c. Capping
SC50*50 2pcs
PLC
K7M-DR20UE-AC
Supply voltage
AC: 220 ±5%/ 380 ±5% 50Hz
Rated current
14A
Net weight
335KG/ 330KG (luxurious/ common style)
Gross weight
408KW/ 408KG (luxurious/ common style)
Actual size
3060*800*1540 mm
Package size
3200*1000*1570 mm
Air compressor requirement
0.1m3 0.17m3/min 0.8Mpa/m3
Water supply
3m3/hour

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon 2

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon 3

Single row--5gallon bottle filling machine:

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon 4

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon 5

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon 6

Some else parts you may need as below^^





Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. whatsaapp/wechat/mob: +86 13660858152
