|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||negotiation|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||15-30working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Name:||Industrial RO System 6000L/H Water Treatment Plant||Pretreatment:||Quartz Sand/ Activated Carbon/ Security PP Filter|
|Application:||Drinking Water Treatment||RO Membrane:||BW30-400IG DuPont|
|Electrical Power:||110V/220V/380V||Production Capacity:||6000L/H|
|Tank Material:||FRP/ Stainless Steel/ Carbon Steel||Control Valve:||Automatic|
|Pipe Fitting:||SUS304/ U-PVC||Pump:||CNP|
|Activated Carbon:||25KG/bag||Optional:||PLC Touch Screen/ Regulating Wheels/ Two-stage RO System|
6000 LPH Stainless Steel Ro Water Purifier,
PLC Stainless Steel Ro Water Purifier
High Salty Brackish Water Purifier 6000LPH Reverse Osmosis System With Antiscalent Dosing System
INFRMATION OF THE MACHINE
|Voltage||380V/3ph/50Hz (customize available)|
|Desalination rate||> 97%|
|Material||FRP, Stainless Steel , U-PVC|
|Configurations||CNP pump&USA DOW membrane|
|Certification||CE & ISO & SGS|
How Do Reverse Osmosis Filter Systems Work & What Do They Do?
If you're looking for a water filter that will provide outstanding drinking water for your home or factory, Reverse Osmosis (RO) filtration is one of the most popular and best water filtration methods available. In simple terms, reverse osmosis works as water is forced across a semi-permeable membrane, leaving contaminants behind that are flushed down the drain. The clean drinking water collects in a holding tank.
Why is Reverse Osmosis a Good Water Filtration Option?
We've been in the water filtration business since 2000 and have found Reverse Osmosis filtration to consistently be one of the best ways to achieve superior water for the home and business.
|1. System can produce water continuously, PLC program controlled, Simple in installation and operation|
|2. RO system be chosen the import USA DOW membrane|
|3. Tank level control, automatic stop when the raw water tank without water or pure water tank is full|
|4. RO system flushes RO membranes when it starts to work so that membrane fouling is reduced.|
|5. Nanfang(CNP) high pressure pumps or Denmark Grundfos high pressure pumps are adopted.|
|6. Product water quality is continuously monitored by conductivity meter.|

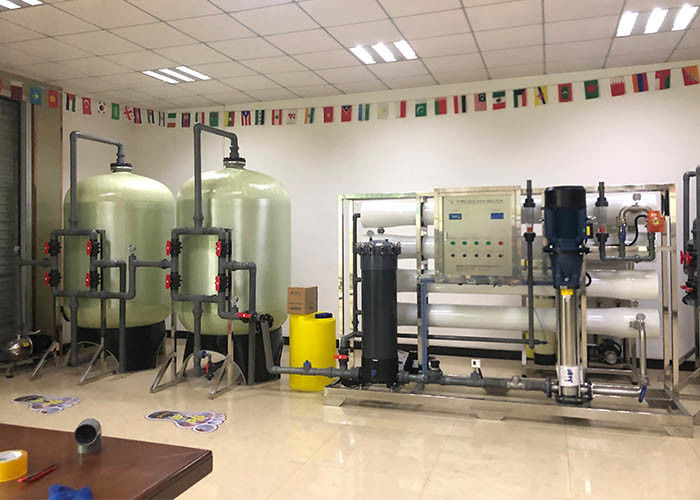

Description of RO unit
This system adopts mechanical and carbon filtration as pre-stage treatment. The device removes the sediments, organic substance, colloid, bacteria and other impurities in water. And the water can be pre-desalted by program control system. Most of the dissolved salt species material, bacteria and heat source can be removed by this method. Then use ozone preservation device to make sure that the water quality is up to the standard.
This system has both automatic and manual mode. The self-set program control system can implement the automatic running mode by regulating the transducer and pressure controller.
Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point
¶ Optimal Configuration, computer-aided design, efficient power with low consumption.
¶ High efficiency filter, multi-grade stainless steel high pressure centrifugal pump, the world-renowned brands such as membrane components are standard equipment, excellent performance, can operate continuously for long time.
¶ Stable water quality: Advanced water testing control and excellent maintenance program to ensure water quality long-term stability.
¶ Highly intelligent ,especially for large and medium projects.
¶ Applies to a wide range of raw water temperature: the brackish water desalination unit has its own patent design techniques to be at 5 °C-39 °C in the temperature range of full load, the water temperature decreases will not affect output water capacity to ensure that customers are able to get rating produced water capacity.
¶ Modularized design, easy installation.
REVERSE OSMOSIS SYSTEMS IN GENERAL :
Reverse osmosis systems, with the most general definition, is removal process of the anion and cation ions by an advanced filtration method which the highest technologies are used as a water treatment system. Water is forced to pass from semi-permeable membranes by applying high pressure. Water cross flows from the surface to the center of the membrane. During this transition, organic and inorganic substances, heavy metals, projects veins, bacteria etc. in the structure of the water retains by the membrane and discharges from the concentrate line. 95% to 99% Purified water can be collected to a tank through permate line. System autoflush before the production starts in order to clean the surface of the membrane.
In this type of systems, for longer and effective use of membranes, pre-filtration and dosing systems must be done correctly.
This water treatment system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles , organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water. Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
