15T/H Containerized Borehole Brackish Water Purification Systems

China Guangzhou Kai Yuan Water Treatment Equipment Co., Ltd. certification
China Guangzhou Kai Yuan Water Treatment Equipment Co., Ltd. certification
Good morning, thank you for your information. The water quality of our equipment ist 3.0 microsiemens, so we are all satisfied. Many regardsv from Austria Veronika Müller

—— Veronika Müller from Austria

perfect you’re the best to do business with very fast and working on african time

—— Daniel Ololia from Uganda

Okay of all the companies that I have quoted you are the most reasonable not for price it is consisten I thank you for the time I hope to have this week good news to be able to buy this machine

—— Emmanuel from Chile

It's many times buy from here. And always giving professional suggestions, help me a lot in business! Thanks!

—— Moses from Kenya

We have been doing business with Kaiyuan company for many years with high performance-cost and friendly service , such a honest factory, product are good !

—— Oybek Begmatov from Uzbekistan

I'm Online Chat Now

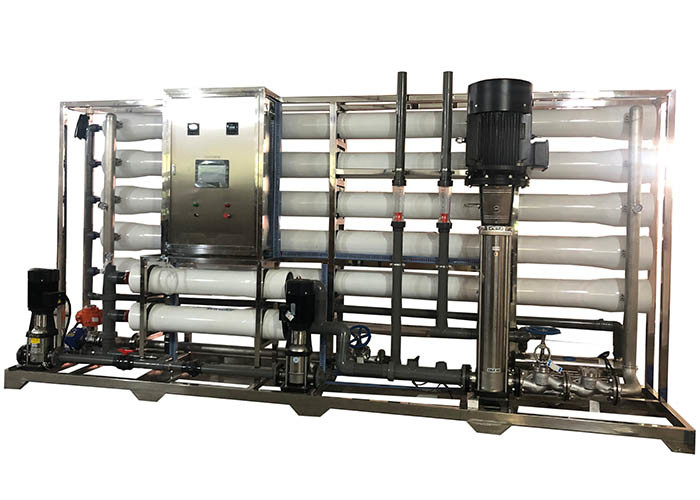

15T/H Containerized Borehole Brackish Water Purification Systems

15T/H Containerized Borehole Brackish Water Purification Systems
15T/H Containerized Borehole Brackish Water Purification Systems
video play

Large Image :  15T/H Containerized Borehole Brackish Water Purification Systems

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-15TPH
Payment & Shipping Terms:
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detailed Product Description
Name: Borehole Brackish Water Purification Systems Pretreatment: Laminated /Carbon /PP /Dosing System
Electrical Power: 220V/380V 50Hz 3Phase Pipe Fitting: SUS304 / SUS316L / U-PVC
Tank Material: FRP/ Stainless Steel Control Valve: Automatic/ Manual
Recovery Rate: 50% - 75% Operating Temperature: 5℃ - 39℃
Production Capacity: 15TP/H Pump: CNP
High Light:

Borehole Brackish Water Purification Systems

,

Containerized Water Purification Systems

,

15TP/H Water Treatment Unit

15T/H Containerized Borehole Brackish Water Purification Systems Water Treatment Unit



Description

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterials in the feed water.



Parameters

Feed Source
Tap
Water
Well
Water
Surface Water
Brackish
Water
Feed SDI   <3 <3 <5 <5
Max Element Recovery (%)   19 17 15 13
Average System Flux (gfd)   20 17 13 10
Max Feed Flow Rate per Element (gpm) 2.5" Diameter 6 6 6 6
Max Feed Flow Rate per Element (gpm) 4" Diameter 14 14 14 14
Max Feed Flow Rate per Element (gpm) 8" Diameter 75 70 55 60
Min Concantrate Flow Rate per Element (gpm) 2.5" Diameter 1 1 1 1
Min Concantrate Flow Rate per Element (gpm) 4" Diameter 3 3 3 3
Min Concantrate Flow Rate per Element (gpm) 8" Diameter 14 14 14 14



  This system's design is depend on customer raw water test report and application.



Processing

Raw water→ raw water tank(buyer supply)raw water pump→laminated filter →activated carbon filter→chemical dosing system→security filter→high pressure pump→ro system→water supply point



Some parts function:

Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances.
Security filter: fill PP filter cartridge inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
Chemical dosing system: add antiscalant(buyer supply) , absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water.
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
UV sterilizer: for killing bacterial in water, be safe for drinking.
CIP system: its help to cleaning the RO membrane, so that it can be have long life span^^



Application

• Homes and Villas
• Hotels/Hospitals
• Commercial Complexes
• Kindney Dialysis Unit
• Poultry Farms
• Food and beverages industry

15T/H Containerized Borehole Brackish Water Purification Systems 0
15T/H Containerized Borehole Brackish Water Purification Systems 1


Machine install into the container

15T/H Containerized Borehole Brackish Water Purification Systems 2
15T/H Containerized Borehole Brackish Water Purification Systems 3
15T/H Containerized Borehole Brackish Water Purification Systems 4
15T/H Containerized Borehole Brackish Water Purification Systems 5
