High Pressure FRP 1 Ton Brackish Water Reverse Osmosis Plant

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-1000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Items: Brackish Water Reverse Osmosis Plant Production Capacity: 1000liters Per Hour
Recovery Rate: 40% Feature: High Pressure
Tank Material: FRP Control Valve: Automatic / Manual
Pipe Fitting: SUS304 / U-PVC Feed Water TDS: ≤20000mg/L
High Light:

1 Ton salt water filtration systems


FRP groundwater treatment plant

Product Description

High Pressure FRP 1 Ton Brackish Water Reverse Osmosis Plant
Brackish Water Reverse Osmosis Plant Description
The reverse osmosis(RO) water treatment plant is an equipment to purify water with the action of pressure difference of semi permeable membrane. RO membranes can effectively remove majority of organics, harmful substances, bacteria, particulates etc in the raw water. RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production, power stations, electronic industries, cosmetics production, medicine(pharmaceuticals) manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.


Raw water→ Bottle ,Bag water City water Brackish water Sea water
TDS range 2-10PPM 100-1000PPM 2000-20000PPM 20000-40000PPM
Direct Drinking Yes Yes / No NO NO
Cooking, human consumption, washing Yes Yes NO NO
Irrigation, industry, animal drinking Yes Yes NO NO

Brackish Water Reverse Osmosis Plant Process
Raw water ->Raw water tank(buyer supply) -> Raw water pump -> Quartz sand filter ->Active carbon filter->Antiscale dosing system->Security filter-> High pressure pump -> RO equipment->Pure water tank(buyer supply)->Water supply point
Some parts function:


1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...

Brackish Water Reverse Osmosis Plant Application
Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding

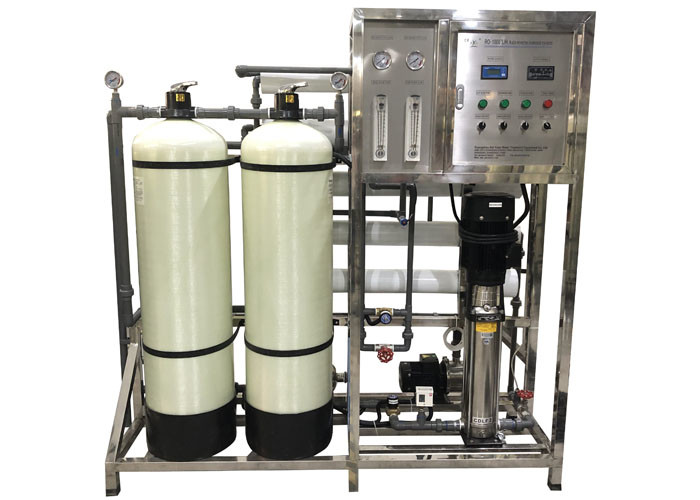

Brackish Water Reverse Osmosis Plant Pictures
High Pressure FRP 1 Ton Brackish Water Reverse Osmosis Plant 0
High Pressure FRP 1 Ton Brackish Water Reverse Osmosis Plant 1
Any interesting, just sent inquiry to us^^
brackish water treatmentbrackish water ro system
