|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||>= 1sets|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||1-7working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Name:||Brackish Water Desalination Plant||Production Capacity:||50TPH|
|Recovery Rate:||50% - 75%||Electrical Power:||380V 50Hz 3Phase|
|Tank Material:||FRP||Control Valve:||Automatic|
|Pipe Fitting:||SUS304 / SUS316L / U-PVC||Operating Temperature:||5℃ - 39℃|
50TPH reverse osmosis systems,
DOW commercial water ro system
CNP Pump DOW Membrane 50TPH Brackish Water Desalination Plant
Brackish Water Desalination Plant Application
Food & Beverage
Preparation of medicine
Waste water reuse
Pretreatment of EDI or Mixed Bed
Brackish Water Desalination Plant Parameters
|Max Element Recovery (%)||19||17||15||13|
|Average System Flux (gfd)||20||17||13||10|
|Max Feed Flow Rate per Element (gpm)||2.5" Diameter||6||6||6||6|
|Max Feed Flow Rate per Element (gpm)||4" Diameter||14||14||14||14|
|Max Feed Flow Rate per Element (gpm)||8" Diameter||75||70||55||60|
|Min Concantrate Flow Rate per Element (gpm)||2.5" Diameter||1||1||1||1|
|Min Concantrate Flow Rate per Element (gpm)||4" Diameter||3||3||3||3|
|Min Concantrate Flow Rate per Element (gpm)||8" Diameter||14||14||14||14|
This system is designed as regards to customer raw water test report and application.
RO system is using CNP/Grundfos/Danfoss pump for high pressure pumps and raw water pump. We are using SEKO
pump for chemical dosing. As regards to customer budget, customer can choose one brand from them.
Sand Filter Tank:
We are giving three option to you for sand filter tank; FRP, Stainless Steel S304 and Stainless Steel 316. For food and pharmaceutical industry we suggest SS316, of course the raw water source is also is important to choose tank material. To choose correct tank, we have to check every data of your application and then suggest to you most appropriate solution.
Kaiyuan has all kind of sand media at its stock. Commonly customers are using 1-2mm,2-4mm, 4-8mm,8-16mm size Quartz Sand.
If you want to use FRP tank, the tank size is Ф1500 x 24000mm, our code for this tank is CK-6096. Flow rate is 40-60 m3/h and you can put 3750kg sand inside.
If you want to use Stainless Steel 304 or 316 tank the tank size is Ф1500 x 2400mm, our code for this tank is
CK1-6096. Flow rate is 40-60 m3/h and you can put 3750kg sand inside.But we do not suggest use SS tank, FRP
is better for Brackish Water.
Carbon Filter Tank:
Carbon filter is same with sand filter,tank material will be decided by you and our engineering team as FRP orstainless Steel 304 or 316. But we do not suggest use SS tank, FRP is better for Brackish Water.
If you want to use FRP tank, the tank size is Ф1500 x 2400mm, our code for this tank is CK-60.96 Flow rate is 40-60m3/h and you can put 1250kg activated carbon inside.
If you want to use Stainless Steel 304 or 316 tank the tank size is Ф1500x 2400mm, our code for this tank is CK1-6096. Flow rate is 40-60 m3/h and you can put 1250kg activated carbon inside.
Water Softener (Resin) Tank:
If you raw water has hardness, you can choose CHUNKE water softener tank in your system, size is same with sand and carbon filter. You can choose material as FRP or Stainless Steel. You can put 2500L resin in CK-6096 type FRP tank.
Cartridge Filter Housing & Cartridge:
All our Reverse Osmosis Water Treatment Machine has cartridge filter housing before membrane, membranes are most important and expensive parts of system. Therefore we have to protect them, cartridge filter housing material is SS304 or SS316. We mostly using 5micron or 1 micron PP cartridge. For 15000LPH 40" 15 pieces cartridges are enough.
Our Stainless Steel Cartridge Housing code is CK40-15core×40", its diameter is 230mm, it has 15 core (you can put 15 cartridges), cartridge height is 40" and all universal cartridge is suitable to use in our housing.
We suggest you to change cartridges in every month.
At Kaiyuan we are using stainless steel or FRP (ceramic) type membrane housing. It is depend on design and application.For 15000LPH machine, we have to use 8040 type membrane so as regards to membrane size , we offer you FRP type 8040 size housing. Membrane housing type is 8040 and 4 pcs.
The most important part of RO Water Treatment Machine is membrane, in market there are a lot of membrane available.
As regards to customer application and budget, our team offer from DOW brands. Our company do not use no name membranes or low quality membranes.
For 15000LPH , you can choose one brand from below;type of the membrane is 8040 (16 pcs).

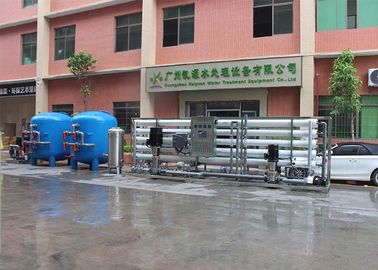

Brackish Water Desalination Plant Pictures
