|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||>= 1sets|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||20-25working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Name:||Ion Exchange Water Purifier||Production Capacity:||20TPH|
|Recovery Rate:||50% - 75%||Electrical Power:||220V / 380V 3Phase Or Others|
|Membrane Housing:||Stainless Steel||RO Rack Size:||5000*900*1950MM|
|Application:||Milk, Beverage, Leather, Electronic Production|
ion exchange water purifier,
ion exchange resin water filter

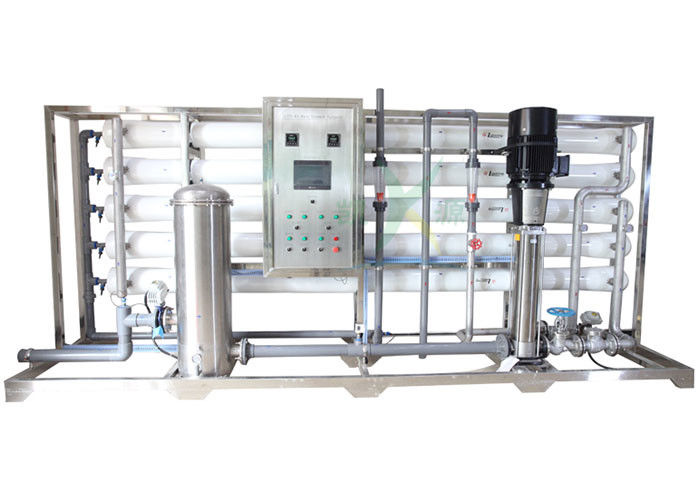

Stainless Steel Ion Exchange Water Purifier / Ion Exchange Resin Water Filter
1). Ion Exchange Water Purifier main parameters
Ion exchange, water can be ionized impurities were removed, this process is through the ion exchanger (resin) for the ion exchange resin to exchange genes with a different activity, but also sun, overcast, strong and weak points of the generally with the acidic functional group, with cation exchange material as cation exchange resin, with a basic functional group, with the anion exchange material, said anion exchange resin. Use of resins with different characteristics of the exchange of genes, can be a water softener, salt, produce highly purified water and industrial wastewater treatment.
2). Ion Exchange Water Purifier Function
|ro membranes auto wash and manual wash|
|ro membranes manual wash wite medicine|
|pure water high water level auto stop,low water level auto start|
|multi-phases pump protected without water|
|protected when no power ,poor power,larger electrical current|
|short circuit, creepage of electricity|
We use SUS 304 / FRP tank to fill quartz sand and active carbon.
The controlling machine is made of stainless steel, as well as .
All water water pipes is PVC material.
|1. RO system means reverse osmosis system, which is the most advanced technique in pure drinking water treatment.|
|2. This machine can be design for small or large scale water factory according to the output.|
|3. This machine follows four steps to purify raw water, make sure the most pure drinking water.|
|4. We design all kind of protecting measures against no power, poor power, larger electrical current, short circuit, creepage of electricity and so on.|
3). Design basis
1. Source of water:tap water, if not ,pls provide the report for water quality.
2. Water production specifications
Note: Water capacity will be changed when the water temperature is down 1 °C,
and water production would be decreased by 3%.
Desalination system: ≥97%
Water recovery: 50-75%
4). The system process
Raw water→ raw water tank→ raw water booster pump→mechanical filter→activated carbon filter (→water softener machine)→precise filter →(cleaning device) high-pressure pump→Reverse Osmosis Components→pure water tank(→Ozone device/UV device) →pure water.
Some parts function:
1.Raw water pump: provide needed pressure for every pre-treatment filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
