RO Ion Exchange Water Treatment System Quartz Sand / Activated Carbon Filter Media

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-30TPH
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 20-25working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >100sets/month
Detail Information
Name: Ion Exchange Water Treatment System RO Membrane: USA DOW
Production Capacity: 30TPH Recovery Rate: 50% - 75%
Membrane Housing: SS Control Valve: Automatic
Application: Pure Drinking Water Filter Media: Quartz Sand / Activated Carbon
High Light:

ion exchange water purifier


ion exchange resin water filter

Product Description

RO Ion Exchange Water Treatment System Quartz Sand / Activated Carbon Filter Media


Ion Exchange Water Treatment System Features:

  • Ion exchange system use automatic or semi-control.

  • Ion exchange equipment adopt fiber glass or stainless steel material.
  • Ion exchange machine be protected while no power, poor power, larger electrical current, leakage, short circuit.

  • Produce as per ISO and SGS standard and main parts accessories with CE certification.

  • More than 10 years production experience.

  • Can supply oversea installation and commissioning.


Feed Temperature 2-40 ℃
Feed water TDS About 35000ppm
Feed pH 3-11
Feed water pressure 0.1-0.3 Mpa
Operation Pressure 4.5-6.0 Mpa
Electric Parameters 380v / 415v / 420v / 480v AC, 50hz / 60hz, 3 phases
Tonnage Electricity Consumption 3.5-7.5 Kw.h / ton
System recovery rate Nearly 40% when operation pressure is near 53 bar.
Design output 1 m3/hr to any size as requested
Produced water quality Portable drinking water


Highlights of RO Desalting plant


1. Continuous water production without the need of regeneration, reducing labor strength.

2. Removing 98% of ions, organic matters and bacteria, with a heat source of more than 98.

3. Online electric conductivity monitoring, ensuring good fresh water quality.

4. PLC microcomputer monitoring, flushing the RO membrane timely.

5. Automatic stop in case of low pressure water shortage and high pressure water sufficiency.


Ion Exchange Water Treatment System Application


1. Food and beverage industrial water, purified drinking water, beverages, beer,
liquor, health care products such as water purification and preparation of water
2. Integrated circuits, silicon wafers, display tubes and other electronic components of
electronic industrial water rinse water
3. Can be used for filling water bottled water, mineral water and other preparation work


Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point

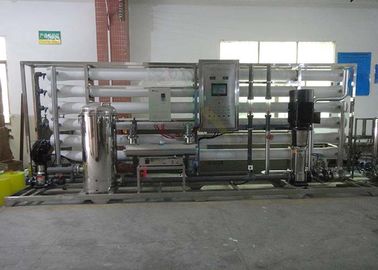

RO Ion Exchange Water Treatment System Quartz Sand / Activated Carbon Filter Media 0

RO Ion Exchange Water Treatment System Quartz Sand / Activated Carbon Filter Media 1


For more details, please do not hesitate to contact us. ^^
