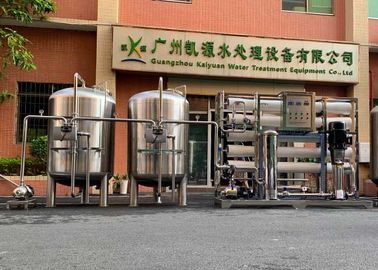

Commercial Drinking Water Treatment Systems , RO Water Treatment Equipment

(2) Raw Water Pump: Provide pressure to quartz sand filter/ activated carbon filter

(3) Dosing Pump: The dosing pump can put the flocculant into the raw water. The flocculant can adsorb the suspended solid in water, let the suspended solid easily removed. The dosing pump in front of reverse osmosis membrane can put the scale inhibitor in the water. To prevent the reverse osmosis membrane from blocking.

(4) Quartz sand filter: Quartz sand filter can remove the suspended solid in water. if your water contain more iron, we will put the manganese sand to the bottle of Quartz sand filter. The manganese sand can oxide the iron and adsorption.

(5) Activated Carbon Filter: The activated carbon adsorb the color, odor and chlorine.

(6) Resin Softening System (Filter): If your water is hard, your water contain the more calcium and magesium. The resin can lower the content of the calcium and magesium in water. The principle is ion exchange.

(7) Brine Tank: The brine in the tank, the brine can remove the calcium and magesium. The principle is ion exchange.

(8) Precision Filter: The pp cartridge installed on the precision filter. The pore of pp cartridge is 1-5um. so that the precision filter can remove the more small impurities to protect the reverse osmosis membrane.

(9) High Presure Pump: To increase the water pressure, let the water through reverse osmosis membrane.

(10) Reverse Osmosis Membrane: We use USA Dow Filmtec Reverse Osmsosi membrane. The reverse osmosis membrane can remove the bacteria and virus.

3. Application

4 Process

Water Treatment Process Flowchart

Raw water vessel → Raw water pump → Sand filter → Carbon filter → Solftener → Storage tank → Security filter → Two stage RO equipment → EDI Storage tank → EDI System → EDI pure water vessel → Two-stage RO system storage tank → Pure water pump → UV sterilizer
