| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-6000LPH |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 12-20working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Name: | 6000LPH Brackish Water Treatment System | Production Capacity: | 6TPH |
|---|---|---|---|
| Electrical Power: | Standard 380V 50Hz 3Phase (customize) | Tank Material: | FRP |
| Application: | Pure / Industrial / Drinking/Boiler Water | Pretreatment: | Sand / Carbon / Resin / Filter Cartridge |
| Desalination Rate: | >=97% | Control Valve: | Automatic / Manual |
| Highlight: | brackish water ro system,brackish water filter |
||

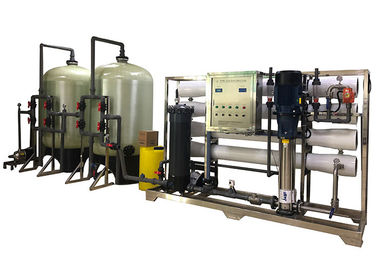

6000LPH Brackish Water Treatment System 10000PPM TDS Salty RO Water Purifier
Application Scope: TDS≤10000mg/L(design as per your raw water condition)
Output Water Quality: TDS≤300mg/L.
Capacity: 6m3/hour
Meet the "World Health Organization (WHO) Guidelines for Drinking Water Quality"
Recovery Rate: 35%~50%
Desalination rate:97%-99%
Adapted Seawater Temperature: 5.0~30.0°C
Brackish Water desalination plants of different capacity ranges from 1T/D to 10000T/D
|
1. Raw water pump |
-- provide the pressure to sand/carbon filter |
|
2. Sand filter |
-- get rid of turbidity, suspended matter, organic matter, colloid and so on |
|
3. Carbon filter |
--Remove color, free chloride, organic matter, harmful matter and so on |
|
4. Anti-scale dosing |
--add antiscalant(buyer supply) , absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water. |
|
5. Micron filter |
--prevent any deposition of large particles, some bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity. |
|
6. High pressure pump |
-- Provide the high pressure to RO membrane, at least 2.0 MPA |
|
7. RO system |
--RO system is the heart part of pure water plant. The RO systems are capable of removing over 99% of ions, bacteria, particles and 98% of organics and silica. |
Features
Permeate water recirculation with UV disinfection.
Skid Mouted type & container type can be optional
Interface HMI human machine,Runs automatically and controlled by PLC
Protection system, plant turns off if it encounters a fault
Energy saving and low noise, no need to heat
Stable running, high desalination and recovery rate with no pollution
Compact structure and saves installation place
Longer service life, lower matainece matainence cost and power consumption.
User-friendly design, easy to operate, wash RO membrane when turn on and off
Dependable performance and long life time
Highly efficient and low carbon emissions
Application
WHO Safe Drinking water & farm irrigation water
Power plant and minning industry Boiler Feed Water & cooling tower water
Food & beverage, bottling water production line water supply.
Electronic, chemical, lather, textile industry pure water.
River water desalination and purification application.
High salinity brackish water and seawater desalination.
