| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-15000LPH |
| Minimum Order Quantity: | Negotiable |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Name: | Sand /Carbon /Softener Filter | Production Capacity: | 15000 Litters Per Hour |
|---|---|---|---|
| Electrical Power: | 220/380V 50/60Hz | Tank Material: | FRP, SS |
| Pipe Fitting: | SUS304/ U-PVC | Function: | Remove Particles, Color, Odor, Hardness From Water |
| Feed Water TDS: | <20000mg/L | Desalination Rate: | >=97% |
| High Light: | stainless steel filter tank,activated carbon filter cartridge |
||

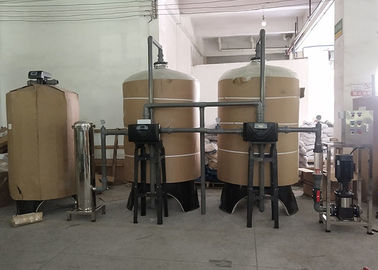

Quartz Sand /Activated Carbon /Softener /Security Filter RO Pretreatment System Water Purifier
| Pretreatment system function: |
| Quartz sand filter: we use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. |
| Activated carbon filter: we use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. |
| Water softener: adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water |
| Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm |
(1)Quartz sand principle
There is precise quartz sand in the quartz sand filter .During the raw water through the filtering layer ,
the impurity , suspended matter ,particles, colloids and other impurities etc .will be remove from the raw water .Then the water will be more clear and with lower turbidity.
(2)Activated carbon principle
Activated carbon is used shell (coconut) and other carbonaceous material made by chemical or
physical method activation. It has a very large number of pores and specific surface area, which has a
strong physical adsorption capacity, the effective adsorption of organic pollutants in water. Primarily to
remove organic matter in raw water, chlorine, odor, color, etc., so that the original residual chlorine in
water ≤ 0.1mg / l, effective protection of RO membrane from chlorine damage to parts of activated
carbon .
(3)Water softener filter normal operation
Salt tank: should be fill the industrial salt into the salt tank about 5kg ,(the coarse salt you should buy in your local place ), fill full of water .After about 5-6 days , if you notice that there is no salt particle inside the salt tank , then you should add the industrial salt into the water again to regenerate resin !
(4)Security filter
The security filter prevents the entry of particles, colloidal impurities, small suspended particles into 5
the intermediate tank .Security filter cartridge is made of polypropylene melt spray, with small resistance,
filtration speed characteristic. The filter cartridge should be replace regularly to ensure the inlet water
flow ,or the particles or impurities will flow into the RO part .The filter cartridge should be replaced
about every month .
How long the consumables should be replaced?
Strictly speaking, it depends on source water quality. There is an approximate timetable for consumables replacement:
| Spare part | Advice Replacement time | Quantity |
| PP filter cartridge (20 "× 5μm) | Every month | 15 pcs |
| Quartz sand | Every 15 - 18 months | 3200 kgs, 50kgs/bag |
| Activated Carbon | Every 15 - 18 months | 950 kgs, 25kgs/bag |
| Resin | Every 15 - 18 months | 1500 L, 25L/bag |
| All the spare parts replace period will be depend on the feed water quality | ||
Automatic control style:
