100T/H Automatic Stainless Steel Industrial RO & Water Softener Filtration System

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-100TPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >100sets/month
Detail Information
Item Name: Iron Removal Water System Production Capacity: 100ton Per Hour
Recovery Rate: 50% - 75% Electrical Power: 110V - 415V 50Hz Or 60Hz
Tank Material: FRP/ Stainless Steel/ Carbon Steel Function: Remove Hardness
Warranty: 1 Year
High Light:

reverse osmosis water filter system


ro reverse osmosis water filter

Product Description

100T/H Automatic Stainless Steel Industrial RO & Water Softener Filtration System Treatment



1. Product Description

According to the condition of raw water, we adopt different plan and equipment to produce pure water and mineral water. It can


effectively get rid of muddy matter, iron and oxide. Filter suspended substance, colloid, remained oxygen of microorganism and


some of heavy metal ion in the water, reduce the hardness of the water to meet the standard of the purified water.


This water treatment plants are used to treat the water from lake, spring, well and ground etc.


The treated water can be widely used in drinking water, cosmetics products, pharmacy production, dye industry ect.


The amount of water produced varies with the temperature of the incoming water and the aging or contamination of the reverse


osmosis membrane

2. Product Parameter


Specificationfor 100T/H RO System
Raw water pump
Provide pressure for raw water
Quartz sand filter
Remove large particule
Security filter
PVC 1μm/5μm
Block impurities greater than 5micron(1micron)
UV sterilizer(Optional)
Kill 99% bacterial
(For drinking directly)
Ozone Generator(Optional)
Kill 99%bacterial and keep 2hours.(For making bottled water)
3. System Advantages
1 water treatment plant Adopting SS304 material with opening design, clear process and convenient maintenance.
2 water treatment plant High quality TFC compound Ro membrane treatment crafts with very low pressure and the capacity of desalinization rate comes to 98% at least.
3 water treatment plant is Auto-check conductance display guarantee watching water quality.
4 Multi medium beforehand filter increases the capacity of water treatment plant.
5 water treatment plant adopts high efficiency active carbon filter which can wipes chlorine of raw water , protect RO system membrane and adjust the taste.
6 water treatment plant has Safe and reliable electrical system. Which designed equipment auto stop protection when open circuit, short circuit and overload.
7 Intelligent circuit design equipment auto stop and run when high or low level water.
8 water treatment plant has auto wash and manual wash model for choosing , which can protect RO membrane easily.
4. Optional Components


A. Regulating wheels

B. PC Touch Screen

C. Two-stage RO system

D. PH adjustment

E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
5. Product Processing


Process: raw water tank + raw water pump + quartz sand filter + Manganese sand filter + UV sterilizer(ozone generator) + precision filter + water supply point
Raw water tank
Store water, buffering pressure, overcome instability of
supplying water by pipe, ensure to supply water stably
and continuously for whole system
Customer provide for
themselves, because
big size will result in
expensive freight.
Raw water pump or called booster pump
Provide needed pressure for every pretreatment filter
We can provide CNP
pumps or Grundfos
Mechanical filter /quartz sand
filter /sand filter
We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities,
suspended substances, colloids etc.
Activated carbon filter
We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine
and organics substances.
Water softener
Removal hardness in the water. Ion exchanger
Security filter /pp filter / sediment
prevent large particles, bacteria, viruses into RO
membrane, accuracy is 5 micron,
UV/ Ozone
Kill bacterials in water. UV for direct drinking water.
Ozone generator for bottle water

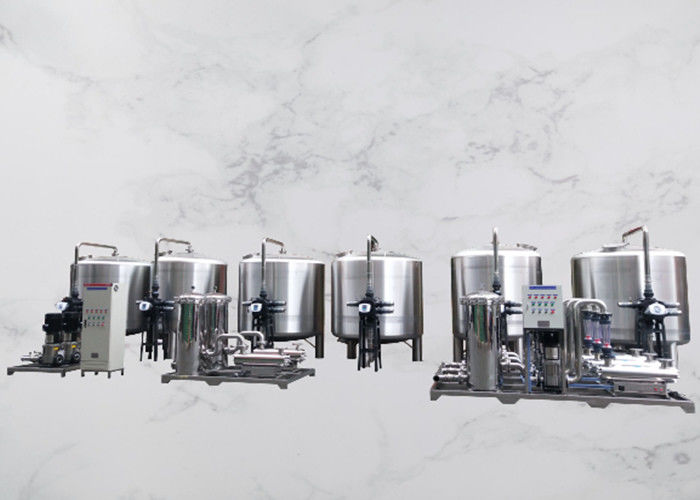

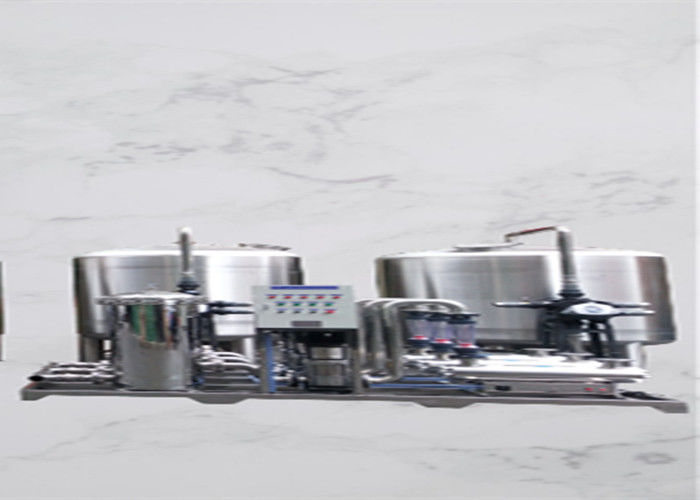

6. Pictures Show

100T/H Automatic Stainless Steel Industrial RO & Water Softener Filtration System 0


Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
