| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-500LPH |
| Minimum Order Quantity: | Negotiation |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Production Capacity: | 500LPH | Recovery Rate: | 40 % |
|---|---|---|---|
| Type: | Reverse Osmosis Brackish Water System | Tank Material: | FRP / Carbon Steel |
| Feature: | Water Purifier System | Pipe Fitting: | SUS316L / U-PVC |
| Operating Temperature: | 5℃ - 39℃ | ||
| Highlight: | brackish water treatment,brackish water ro system |
||

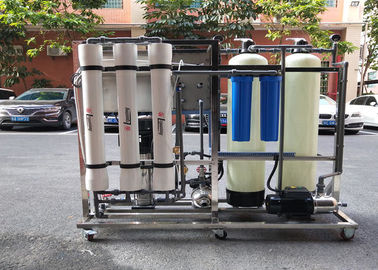

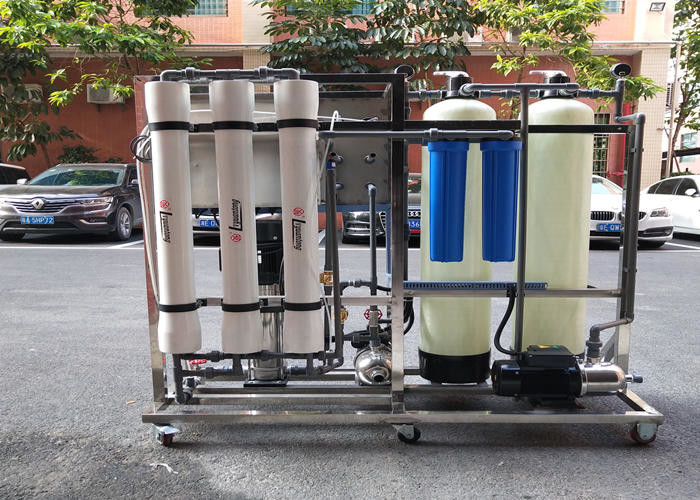

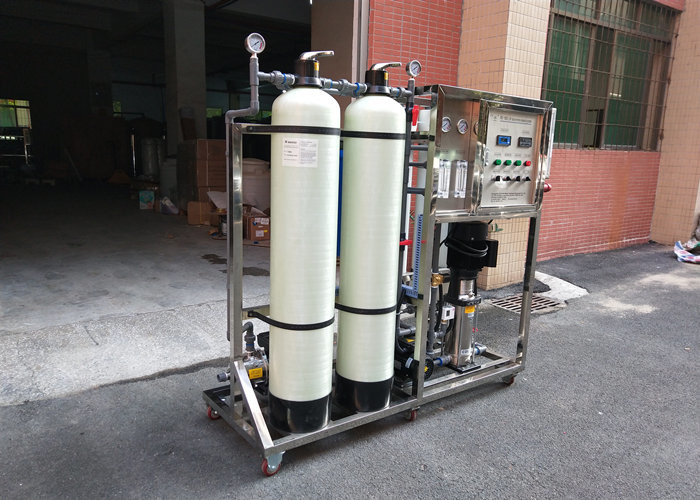

Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter Machine
Brackish Water Treatment Plant Details
|
kyro-1000LPH Reverse Osmosis Brackish Water System |
|
1. Capacity: 500L/H |
|
2. Rated power: 3.5KW/H |
|
3. RO System Rack Size: 2450*970*1970mm |
|
4. Desalting rate:>=97% |
|
5. Water recovery rate: 40% |
|
6. TDS of raw water: 2000-5000 PPM |
|
7. TDS of pure water: ≤ 150 PPM |
|
8. Voltage: 110V / 220V / 380V, 50Hz / 60Hz, single phase / 3phase |
Brackish Water Treatment Plant Component
Raw water pump ► Quartz sand filter ► Activated carbon filter ► Security filter ► High-pressure pump ► RO system + Alkaline Filter + Coconut shell carbon filter
1. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
2. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
3. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
4. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
5. Alkaline Filter: use stainless steel as housing, fill alkaline ball inside, can be done for PH 7-10 alkaline drinking water.
6. Coconut shell carbon filter: use stainless steel as housing, fill coconut shell carbon inside, remove color, odor, residual chlorine and organics substances;
7. PP Filter Cartridge: Intercept >1µm accuracy large particles, bacteria, viruses. (optional)
8. Folding filter Cartridge: Intercept >0.22µm accuracy large particles, bacteria, viruses. (optional)
There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
Application:
1. Cosmetic industry, removal of the ions in the water, organic creature.
2. Food and beverage industrial water, drinking pure water, soft drink, beer, liquor, health care products, such as water purification and preparation of water
3. Textile, chemical industry process water/chemical preparation water circulating water, chemical products, such as purification and manufacturing
4. Can be used for bottled water, mineral water, etc filling water of making work
5. Electronic, biological and medical engineering( medical pure water).
Brackish Water Treatment Plant Details
