Industrial Water Softener System Remove Hardness With PLC Touch Screen Control

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-1000LPH
Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 3-15working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: >300sets/month
Detail Information
Name: Industrial Water Filter Softener System Production Capacity: 1000liters Per Hour
Tank Material: FRP/ Stainless Steel Pipe Fitting: SUS304/ U-PVC
Quartz Sand: 150KG Actived Carbon: 50KG
Cation Resin: 75L Feed Water TDS: <1000mg/L
Application: Boiler/ Drinking Water Size: 250*1450
High Light:

softening water system

,

water softener machine


Product Description

Industrial Water Filter Softener System Remove Hardness With PLC touch screen For Drinking







The hardness of the output water test by the "chrome black T reagent" showed blue is qualified (<0.03mmoL/L).





First stage pretreatment.(Sand filter)

The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.



Second stage pretreatment (Carbon filter)

Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.



Third stage pretreatment (Resin softener)

Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.





Exchange process as follow:

2RNa + Ca2+ = R2Ca + 2Na+

2RNa + Mg2+ = R2Mg + 2Na+

R2Ca + 2NaCl = 2RNa + CaCl2

R2Mg + 2NaCl = 2RNa + MgCl2



Technical index and working

1.Water pressure:0.18-0.6Mpa

2.Working temperature:1°c-55°c

3.Hardness of raw water: <8mmol/L

4.Operation method:manual/automatic

5.Hardness of effluent water: ≤0.03mmol/L

6.water flow: 0.3-20 t/h

7.Rebirth method:resin

8.Control method: time or flow

9.Working electric: 100-220V,60/50Hz



Application



Feed water(source water / raw water):

City water, river water, lake water, underground water(borehole water , well water), brackish water, sea water atc...



Treated water:

1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water

2. Food and beverage industry: filter for mineral water, wines and fruit juice

3. Medicine industry: filter for drug liquid, gases

4. Chemical industry: filter for organic solvent

5. Petroleum industry: filter for oil-field flooding

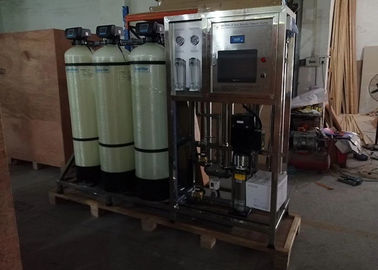

Industrial Water Softener System Remove Hardness With PLC Touch Screen Control 0

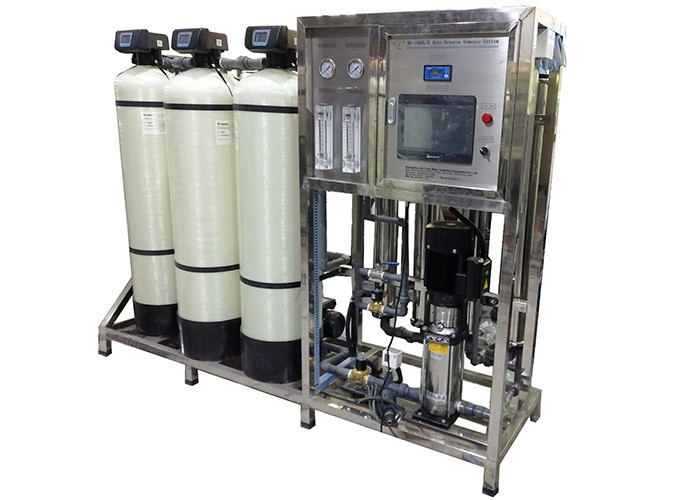

Industrial Water Softener System Remove Hardness With PLC Touch Screen Control 1

1T RO System Touch Screen Instruction:
Homepage,after you touch fast set you can see 4 options

Industrial Water Softener System Remove Hardness With PLC Touch Screen Control 2



1.Press Working process you will see picture as bellow:

This one show whole system running and water level in raw water tank and pure water tank. When it is working, light will be blinking.



Industrial Water Softener System Remove Hardness With PLC Touch Screen Control 3



2.Press manual operation

You can press start or stop to control pumps and valves manual. After manual operate, pls change to auto mode. When it is blinking means part is working, if you need to stop it, just press stop or off button.



Notice: when you start manual operation, all protection function will be useless.



Industrial Water Softener System Remove Hardness With PLC Touch Screen Control 4


3.Press waring information to this page

This page will write all problems of machine including raw water tank lack of water, low pressure alarming....



Industrial Water Softener System Remove Hardness With PLC Touch Screen Control 5

Packing
Industrial Water Softener System Remove Hardness With PLC Touch Screen Control 6


Our main product is RO system water purifier machine what we can do is to help changing such as seawater, brackish water,underground water and tap water atc...into domestic water, irrigation, direct drinking or bottle drinking(pure/mineral/alkaline water), industrial water: boiler water, hospital usages, beverage usages atc...



For more details, please do not hesitate to contact us.
