| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-3000LPH |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 20-25working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >100sets/month |
| Name: | 3TPH Water Softener System | Production Capacity: | 3000liters Per Hour |
|---|---|---|---|
| Recovery Rate: | 50% - 75% | Electrical Power: | 380V 50Hz 3phase |
| Membrane Housing: | FRP/ Stainless Steel | Control Valve: | Automatic/ Manual |
| Pipe Fitting: | SUS304/ U-PVC | Application: | Pure Water / Industrial Water / Mineral Water |
| High Light: | water softener treatment systems,softening water system |
||

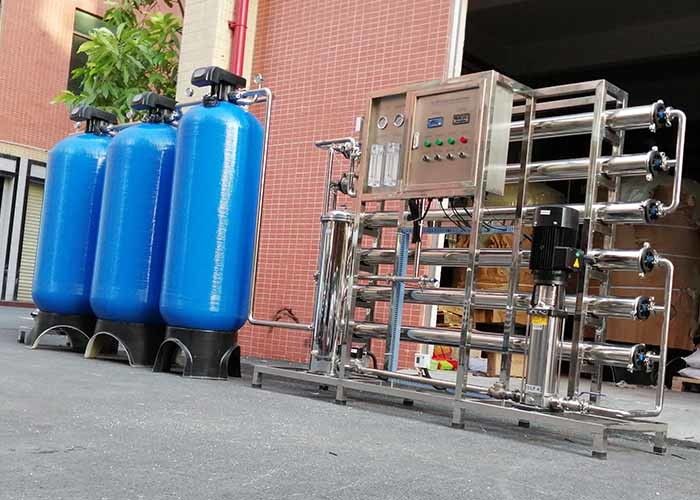

RO Plant Drinking Industrial Water Filter Equipment 3TPH Water Softener System
Product Description
If you're looking for a water filter that will provide outstanding drinking water for your home or factory, Reverse
Osmosis (RO) filtration is one of the most popular and best water filtration methods available. In simple terms,
reverse osmosis works as water is forced across a semi-permeable membrane, leaving contaminants behind that are flushed down the drain. The clean drinking water collects in a holding tank.
Product Parameter
| KYRO-3000LPH RO Water Treatment System: |
| 1. Capacity: 3000L/H |
| 2. Rated power: 4.0KW/H |
|
3. RO System Rack Size: 2440*620*1850MM
|
| 4. Desalting rate:>=97% |
| 5. Water recovery rate: 50-75% |
|
6. Voltage: 380V 50Hz 3phase
|
Wroking Process
Raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point
Functions:
1. High operation automation degree.
1) Automatic stopping in case of sufficient water under low pressure
a) Protection of hydraulic fluctuation resistance
b) Timed flushing of front filtering materials by automatic controller
c) Automatic flushing of reverse osmosis film by IC microcomputer controller
d) Automatic monitoring of water quality
2. Small landing area, low energy consumption, free of pollution, simple process, high water quality and easy operation and maintenance
3. High removing rate, above 97% for dissolved salts, above 98% for organic substances, and above98% for colloids, bacteria and heat sources etc.
Applications
| 1) Food and Beverages |
| 2) Tube and Micro Circuit manufacturing |
| 3) Pharmaceuticals |
| 4) Hotels & Resorts |
| 5) Hospitals, Mineral Water Processors |
| 6) Power Generation |
| 7) Electronic Component manufacturing |
| 8) Semi conductors |
Feed water(source water):
city water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
If any interests & any questions just feel free to buzz me anytime^-^
