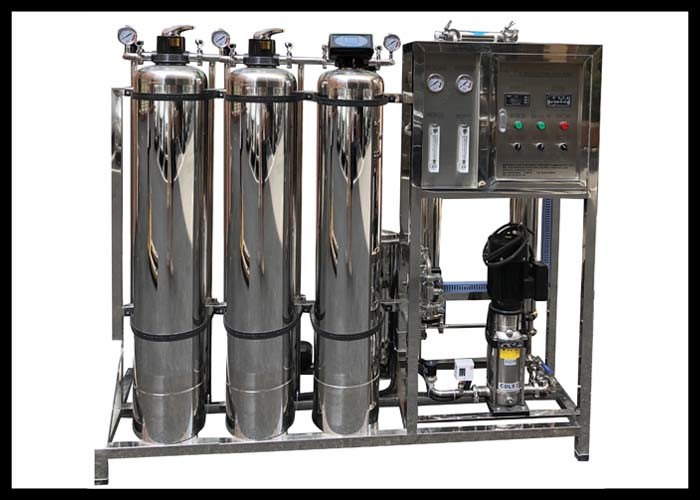

SGS RO Purification Water Machine For Hospital / Pharmacy With Softener

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-500LPH
Minimum Order Quantity: >= 1sets
Price: USD1650/set-USD3155/set
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: 500L RO Purification Water Machine RO Membrane: USA Filmtec Dow
Multiple -Choice Control Valve: Automatic Or Manual Recovery Rate: 50%-75%
Desalination Rate: 97% Membrane Vessel: FRP Or Stainless Steel
Feed Water TDS: <2000mg/L Like Fresh Water Operating Temperature: 5℃ - 39℃
Pump Optional: Ling Xiao / CNP / Grundfos Warranty: 1year
High Light:

water softener treatment systems

,

softening water system


Product Description

500L/H CE Approved RO Purification Water Machine for Hospital / Pharmacy with Softener



1.Reverse Osmosis is an equipment to purify the saltine water with the action of pressure difference of semi permeablemembrane. It is effective with asbestos, many taste, colour and odour producing chemicas, particulates, total dissolved solids,turbidity and radium. RO system is widely used in water supply treatment, purification for tap water, seawater and brackish water, pure water and ultrapure drinking water production, power stations, electronic industries, and medical treatment. It is capable of removing 9099% of total dissolved solids (TDS), 99% of organic, including pyrogens,and 99% of all bacteria in the feed water.


2. Process:

Working Process
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter
2. Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions



3.Features:

1). Automatic backwash and manual backwash

2). Automatic switch on when low water level, and switch off when high water level

3). Water shortage protection for multi-stage pump

4). Protection when no voltage, under-voltage, over-current, short circuit and creepage

5). Full stainless steel structure, durable and easy to clean.

6). Integrating water flow indicator, conductivity indicator, pressure indicator, control panel

7). China Top Brand or world famous brand electrical, switch and valve systems

8). Core components of RO system are imported, USA Filmtec Dow membranes

9). Run and produce water continuously, high degree automation



4.Parameter:

  Raw water pump Domestic 1 pc
A. Power = 0.75kw
B.include:Pressure controller, Inlet/outlet water valve, pipe etc.SUS-304   1 batch
2 Quartz sand filter KAI YUAN 1set
A. Tank Material: FRP   1 pc
B. Manual/Auto control valve   1 pc
3 Activated carbon filter KAI YUAN 1set
A. Tank Material: FRP
B. Manual/auto control valve   1 pc
4 Security filter KAI YUAN 1set
A.material:stainless steel   1 pc
B.PP filter cartridge: 5μm
5 High-pressure pump CNP 1 pc
Power= 1.5kw
6 Reverse osmosis water system Capacity: 1.0m3 / h, maximum working pressure: 1.5MPa, desalination rate: 97%, system water use efficiency: ≥ 50% KAI YUAN 1set
A. Membrane components 4040 Material: SUS304 Domestic 4 pcs
B. Membrane BW300-400LG USA Dow 4 pcs
C. Stainless steel rack   1 pcs
D. Panel flow meter   2 pcs
E. Instruments, meters,conductivity meter   1 batch
F. Inlet water solenoid valve   1 pc
G. Dense water solenoid valve   1 pc
H. Dense water regulating valve   1 pc
I.Pressure fittings, pressure pipe   1 batch
J. Valves, U-PVC pipe   1 batch
7 Electronic Control System KAI YUAN 1set
General control cabinet
8 Filler
A.quartz sand Domestic
B.activated carbon Domestic



SGS RO Purification Water Machine For Hospital / Pharmacy With Softener 0

SGS RO Purification Water Machine For Hospital / Pharmacy With Softener 1

Thank you so much for your value time.Any questions please feel free to contact me ! I will reply you within 24 hours.

Tel/whatsapp/wechat: +86-13660858152



Guidelines for getting a proper quotation

  • Tell us the raw water/source of water

  • Provide water analysis report

  • Required production capacity( 500 liters per hour, 1000liters per hour…)

  • What's the pure water used for( drinking, bottle water or industrial use…)


Tag: RO Water Treatment System, Brackish Water System
