500L Brackish Water System From Underground / Well / Borehole Water To Irrigation

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-500LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Item Name: High Salty 500L Brackish Water System Production Capacity: 500LPH / 500liters Per Hour
Recovery Rate: 40% Electrical Power: 220/380V 50/60Hz
Tank Material: FRP Control Valve: Automatic/ Manual
Pipe Fitting: SUS304/ U-PVC Warranty: 1 Year
Size: 1870*650*1850MM Feed Water TDS: 5000 - 10000PPM
High Light:

brackish water treatment


brackish water ro system

Product Description

High Salty 500L Brackish Water System

from Underground / Well / Borehole Water

to Irrigation / Drinking Water


 Product Description

Deal with raw water TDS range 5000 - 10000 ppm

Brackish water, according to the organic content can be devided into surface water and ground water . surface water we can reverse osmosis system mating with relative sterilization system , ground water we can direct use reverse osmosis system , if Iron and Manganese overpass the inlet condition of RO ,we need add Manganese sand filter for pretreatment system , here also include the specific inlet conditon of RO system for reference.

 Product Details

kyro-500lph RO Water Purifier Machine:
1. Capacity: 5000L/H
2. Rated power: 2.5KW/H
3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase
4. Desalting rate:>=97%
5. Water recovery rate: 40%
6. TDS of raw water: ≤20000μs
7. TDS of pure water: ≤600μs


A. Pretreatment system:

(1) Raw water pump CHL2-30 SUS-316
(2) Sand filter Φ250 × 1450   with 100KG  sand / FRP tank
(3) Carbon filter Φ250 × 1450  with 25KG carbon / FRP tank
(4) Chemical dosing pump and tank
(5) Cartridge filter 20″×5μm 2core


B. RO system parts:

(1) High pressure pump: China Nanfang CNP brand
(2) Ro membrane: USA Dow brand
(3) RO membrane housing  FRP

(4) Ro rack and other related meters


 Product Processing

Raw water→ raw water pump→quartz sand filter →activated carbon filter→chemical dosing system→security filter→high pressure pump→ro system→water supply point

Brackish water from the water pump into the quartz sand (multi-media filter) and activated carbon filtration system filtration. Filtered water after water quality reduction, PH adjustment and scale inhibitor added after the access to the precision and security filtration system, filtered low pressure brackish water all the way into the high-pressure pump pressure, the other way into the pressure exchange energy recovery device, after pressurized pump pressurized with high pressure pump into the reverse osmosis membrane reactor system. High-pressure brackish water in the membrane reactor under the treatment of the formation of fresh water through the membrane after water quality adjustment into the fresh water tank storage. The rest of the high pressure concentrated water enters the pressure exchange energy recovery unit to recover the energy after discharge.


 Optional Components

A. Regulating wheels

B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank


• Homes and Villas
• Hotels/Hospitals
• Commercial Complexes
• Kindney Dialysis Unit
• Poultry Farms
• Food and beverages industry
• Bottled drinking water plants
• Cooling tower /Boiler feed water

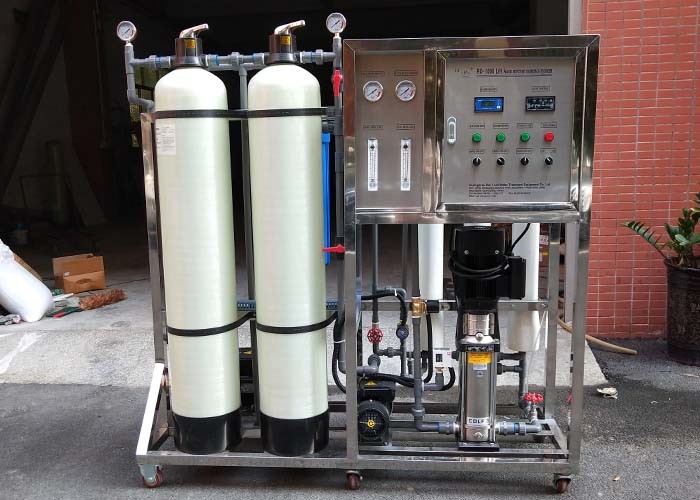

500L Brackish Water System From Underground / Well / Borehole Water To Irrigation 0
500L Brackish Water System From Underground / Well / Borehole Water To Irrigation 1
