1000L/H Brackish Water Reverse Osmosis Water Treatment System TDS 2000PPM - 20000PPM

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-1000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>300sets/month

Get Best Price Contact Now

Detail Information

Items:	1000L/H Salty Brackish Water Reverse Osmosis Water Treatment	Production Capacity:	1000liters Per Hour
Recovery Rate:	40%	Electrical Power:	220V / 380V 50Hz / 60Hz
Tank Material:	FRP	Control Valve:	Automatic / Manual
Pipe Fitting:	SUS304 / U-PVC	Warranty:	1 Year
Size:	18706501850MM	Feed Water TDS:	≤20000mg/L
High Light:	brackish water treatment , brackish water ro system

Product Description

1000L/H Salty Brackish Water Reverse Osmosis Water Treatment TDS 2000PPM - 20000PPM

Product Description

The brackish water system can be used for the area where underground water in high salty and near sea. (Brackish feed water TDS between 2000ppm and 20000ppm. Capacity range 250L/H - 300m3/H.

Raw water→	Bottle ,Bag water	City water	Brackish water	Sea water
Usage↓	Bottle ,Bag water	City water	Brackish water	Sea water
TDS range	2-10PPM	100-1000PPM	2000-20000PPM	20000-40000PPM
Direct Drinking	Yes	Yes / No	NO	NO
Cooking, human consumption, washing	Yes	Yes	NO	NO
Irrigation, industry, animal drinking	Yes	Yes	NO	NO

Brackish water from the raw water pump into the quartz sand (multi-media filter) and activated carbon filter. Filtered water after water quality reduction, PH adjustment and scale inhibitor added after the access to the precision and security filter, filtered low pressure brackish water all the way into the high-pressure pump pressure, the other way into the pressure exchange energy recovery device, after pressurized pump pressurized with high pressure pump into the reverse osmosis membrane reactor system. High-pressure brackish water in the membrane reactor under the treatment of the formation of fresh water through the membrane after water quality adjustment into the fresh water tank storage. The rest of the high pressure concentrated water enters the pressure exchange energy recovery unit to recover the energy after discharge.

Product Process

Raw water ->Raw water tank(buyer supply) -> Raw water pump -> Quartz sand filter ->Active carbon filter->Antiscale dosing system->Security filter-> High pressure pump -> RO equipment->Pure water tank(buyer supply)->Water supply point

Some parts function:

1. Raw water pump: provide needed pressure for every pre-treatment filter;

2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...

Application

Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding

Pretreatment with automatic control valve styles:

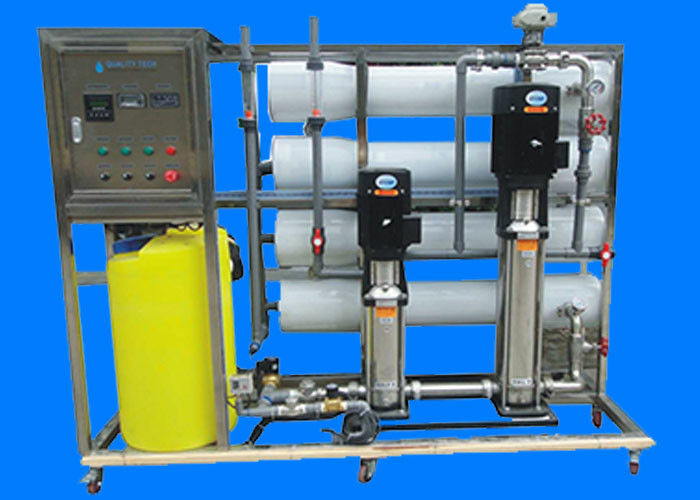

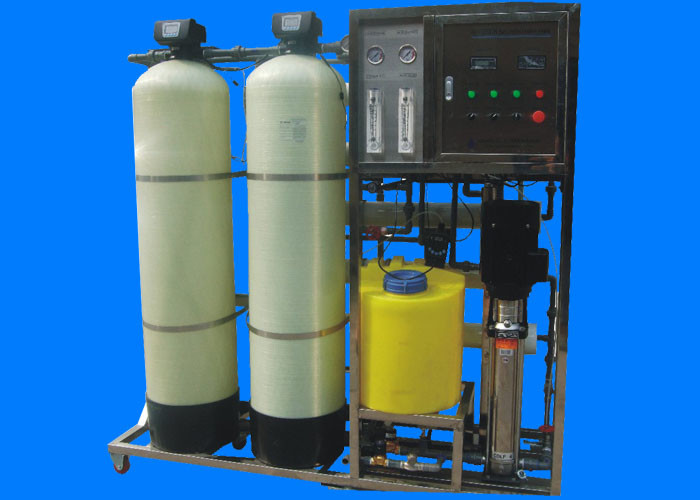

1000L/H Brackish Water Reverse Osmosis Water Treatment System TDS 2000PPM - 20000PPM 0

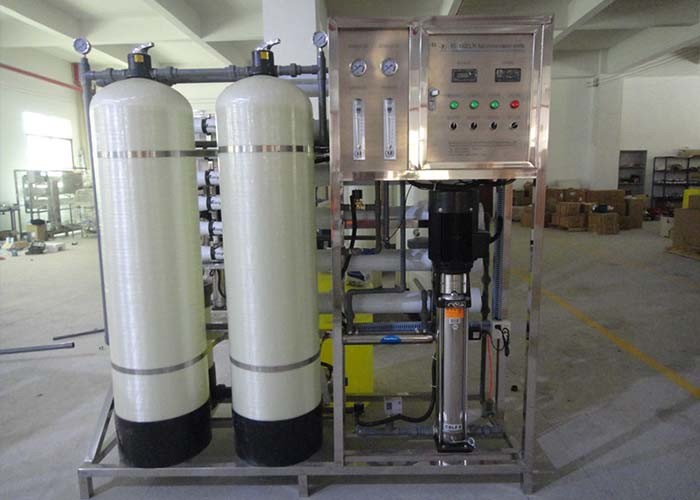

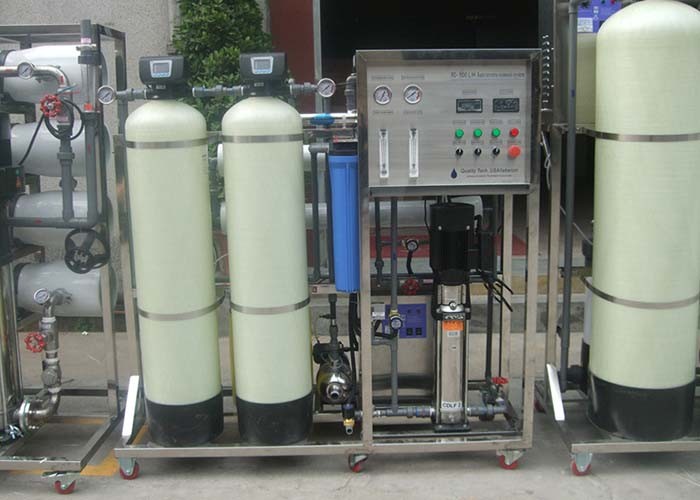

Pretreatment with manual control valve styles:

Any interesting, just sent inquiry to us^^
